YANMAR X4160064450 Gasket, Tank

Write a Review
$102.74
SKU:
X4160064450
Schematic Object Key:
27

YANMAR X4160064450 Gasket, Tank

$102.74

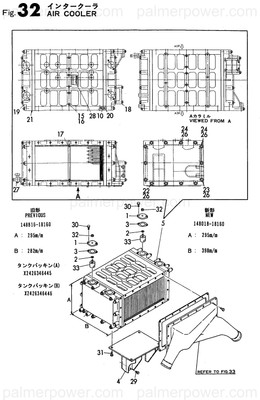

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR X4160064450 Gasket, Tank

Schematic Object Key : 27

Product Description : PACKING X4160064450

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 RIVET, 2.0X 6 22625-200060
2 LABEL 42220-008610
3 GASKET, COOLER 148688-18700
3-1 GASKET, COOLER 148688-18701
4 GASKET, COOLER 148688-18710
4-1 GASKET, (NON-ASB.) 148688-18711
5 SUPPORT 148688-18850
6 BOLT, M10X 30 PLATED 26106-100302
7 BOLT, M10X 20 PLATED 26106-100202
8 COOLER ASSY, INTER 148688-18200
8-1 COOLER ASSY, INTER 148688-18201
9 CORE ASSY 748688-18620
9-1 CORE ASSY 748687-18621
9-2 CORE ASSY 748687-18622
18 BOLT, M8 X5060110102
18-1 BOLT, M8 X0601101020
19 BOLT, M10 X0601101025
19-1 BOLT, M8 X5060110102
19-2 BOLT, M10 X0601101025
20 GASKET X4263274550
20-1 GASKET X2426327455
20-2 GASKET X4263274550
22 BOLT M10X110 X4262205956
22-1 BOLT X5051171104
22-2 BOLT X0511711045
23 BOLT X0511711060
23-1 BOLT, M8X20 X1416006595
23-2 BOLT X4265295950
24 BOLT X2426327453
24-1 GASKET X4263274530
25 TANK (A) X4160061510
25-1 TANK (A) X1416015151
25-2 TANK (A) X4265341510
26 TANK (B) X4160061910
26-1 TANK (B) X1416015191
26-2 TANK (B) X4265341910
27 PACKING X4160064450
27-1 PACKING X1416015445
27-2 PACKING X4265344450
28 PEACOCK X1210014010
28-1 PEACOCK X6121001401
28-2 PEACOCK X1210014010
29 PLUG, PF1/4 X4261484870
29-1 PLUG X2446078487
29-2 PLUG, PF1/4 X4460784870
30 NAME PLATE X2426108484
30-1 NAME PLATE X4261084840
31 BOLT X9160024820
32 SPRING WASHER X2110011000
33 NUT X1011711000
34 SUPPORT 148688-18860
35 WASHER, 10 22137-100000
36 GASKET 123210-09310
37 PLUG 135410-33310
38 GASKET, 25X1.0 23414-250000
39 ZINC, SCREW20X30 27210-200300
