YANMAR X503105200 Shim

Write a Review
$3.35
SKU:
X503105200
Schematic Object Key:
17

YANMAR X503105200 Shim

$3.35

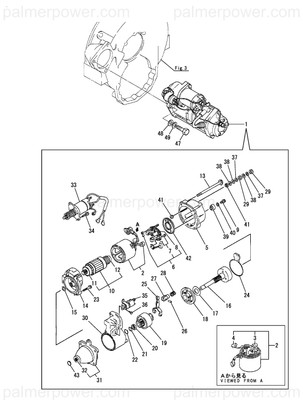

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR X503105200 Shim

Schematic Object Key : 17

Product Description : SHIM

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 STARTING MOTOR 148620-77020
2 YORK ASSY X131011700
3 BRACKET, REAR X2240213618
5 HOLDER ASSY, BRUSH X1331043309
6 BRUSH X2660074006
7 BRUSH X2660074007
8 SPRING, BRUSH X525003000
9 SCREW X500010500
10 ARMATURE ASSY X132011500
11 BALL BEARING X620600540
12 BALL BEARING X620600520
13 BOLT X816707175
14 GEAR CASE X224502010
15 SHIM X503105700
16 SHAFT X244104100
17 SHIM X503105200
18 HOLDER, CENTER X224406100
19 CLUTCH ASSY, PINION X136106201
20 STOPPER X366101900
21 RITEANER X522101000
22 RING X505804100
23 BOLT X501027430
24 PACKING X414129400
25 LEVER ASSY X137204501
26 ROD X360017800
27 HOLDER, LEVER X422305600
28 COIL, SPRING X520109300
29 CASE ASSY, PINION X2246043009
30 METAL X2620096109
31 COVER X340928900
32 FELT X414004200
33 SWITCH, ENGAGE X1350129019
34 COVER ASSY, TERMINAL X1359063006
35 TERMINAL ASSY, NUT X1359051006
36 MOVING CONTACT ASSY X135903700
37 CORE ASSY, MOVING X135304821
38 O-RING X641403220
39 COIL, SPRING X520107500
40 BOLT X501027300
41 BOLT, M14X 35 26292-140352
42 WASHER, SPRING 14 22217-140000
43 CAP,TERMINAL RUBBER 41903-650040
44-1 WIRE 148660-77541
45 BOLT, M6X 10 PLATED 26106-060102
45-1 BOLT, M6X 12 PLATED 26106-060122
46 STARTING RELAY 148633-77090
47 CAP 148620-77500
48 CAP,TERMINAL 152633-78280
