YANMAR X9490562481 Nut

Write a Review
$4.29
SKU:
X9490562481
Schematic Object Key:
56

YANMAR X9490562481 Nut

$4.29

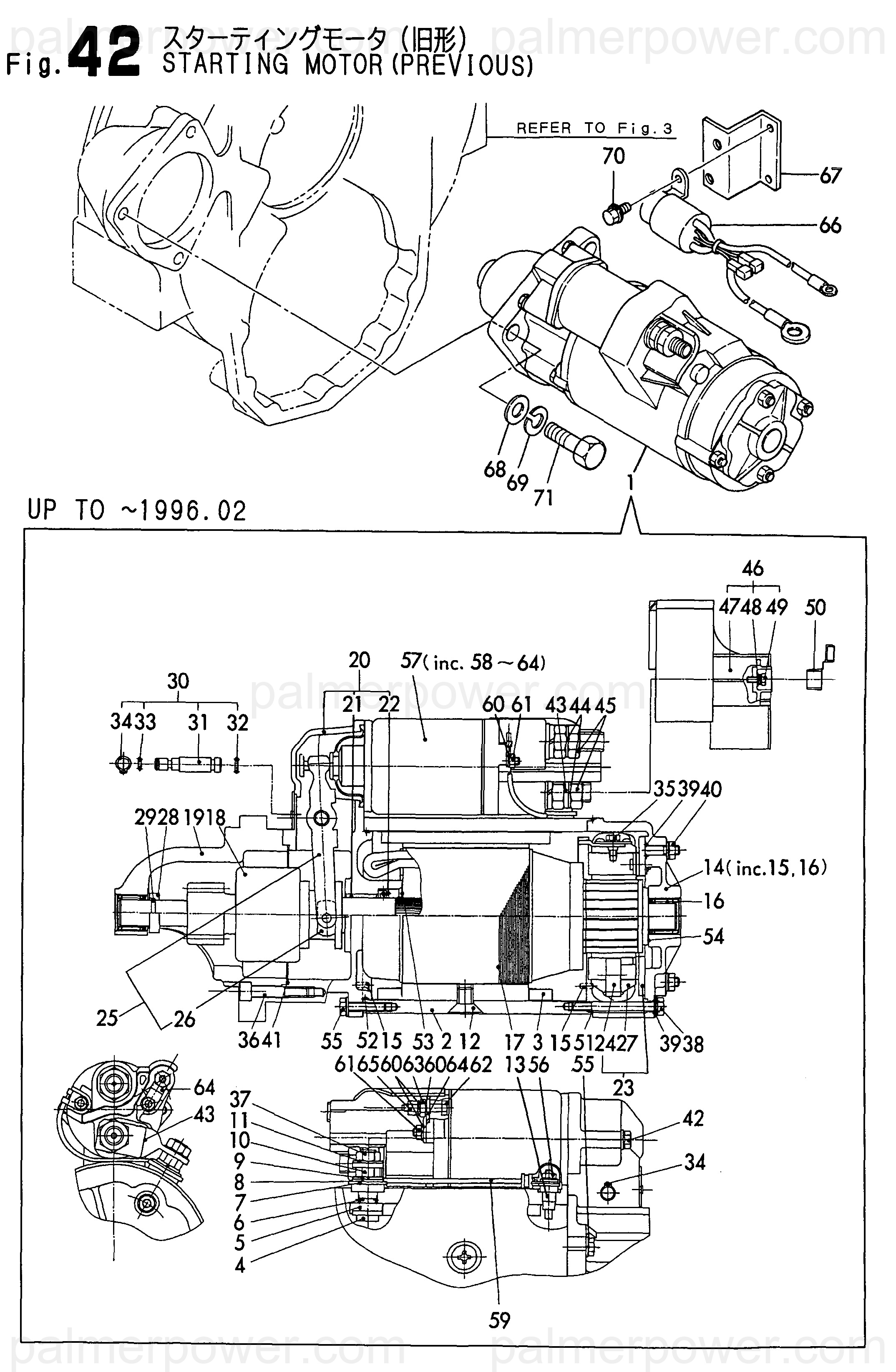

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR X9490562481 Nut

Schematic Object Key : 56

Product Description : NUT

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 STARTER 127675-77010
2 YOKE ASSY X0281006190
3 COIL X0281105221
4 TERMINAL X0281745010
5 BUSH X0281595430
6 O-RING X9491401720
7 BUSH X0281595440
8 WASHER X9020010001
9 WASHER, SPRING X9025810001
10 NUT X9490505060
11 WASHER X9490171290
12 SCREW X9490062130
13 BOLT ASSY X0534807090
14 FRAME ASSY X0285005690
15 PIN X9490821940
16 BEARING, NEEDLE X9491050130
17 ARMATURE ASSY X0282006040
18 CLUTCH ASSY X0283007750
19 HOUSING ASSY X2284000520
20 BEARING X0284205180
21 BEARING X9491034300
22 SEAL, OIL X9491502470
23 HOLDER ASSY X0285105261
24 SPRING, BRUSH X0285205040
25 LEVER X0287405100
26 RING X0287495020
27 BRUSH X0285305130
28 NUT X0280215110
29 RING, SNAP X9490720791
30 STARTER KIT X0280996350
31 PIN X0287485010
32 O-RING X9080110070
33 O-RING X9080110050
34 RING, SNAP X9055708000
35 BOLT X9490471421
36 BOLT X9490407400
37 NUT X9017010061
38 BOLT, THROUGH X9490423300
39 O-RING X9080110060
40 NUT X9490560750
41 GASKET X9490620960
42 BOLT X9490406880
43 CONNECTOR X0281725180
44 WASHER X9490172030
45 NUT X9490502830
46 STARTER KIT X0280996570
47 COVER X0280335200
48 WASHER X9020004141
49 BOLT X9490472330
50 BUSH X0285465060
51 O-RING X9491405550
52 O-RING X9491405540
53 WASHER X9490137820
54 WASHER X9490130180
55 BOLT X9490407320
56 NUT X9490562481
57 SWITCH ASSY X0534009891
58 COVER X0536657080
59 WIRE ASSY X0536807290
60 WASHER X9025805001
61 NUT X9116005041
62 BOLT X9490407050
63 NUT X9490502601
64 TERMINAL X0535167280
65 NUT X9490502601
66 RELAY, STARTER 127675-77080
67 BRACKET, RELAY 127675-77090
68 WASHER, 12 22137-120000
69 SPRING WASHER 12 22212-120000
70 BOLT, M6X 12 PLATED 26106-060122
71 BOLT, M12X 40 PLATED 26116-120402
