YANMAR XNN134035 New 119101-18530 Plate

Write a Review
$5.20
SKU:
XNN134035
Schematic Object Key:
12A

YANMAR XNN134035 New 119101-18530 Plate

$5.20

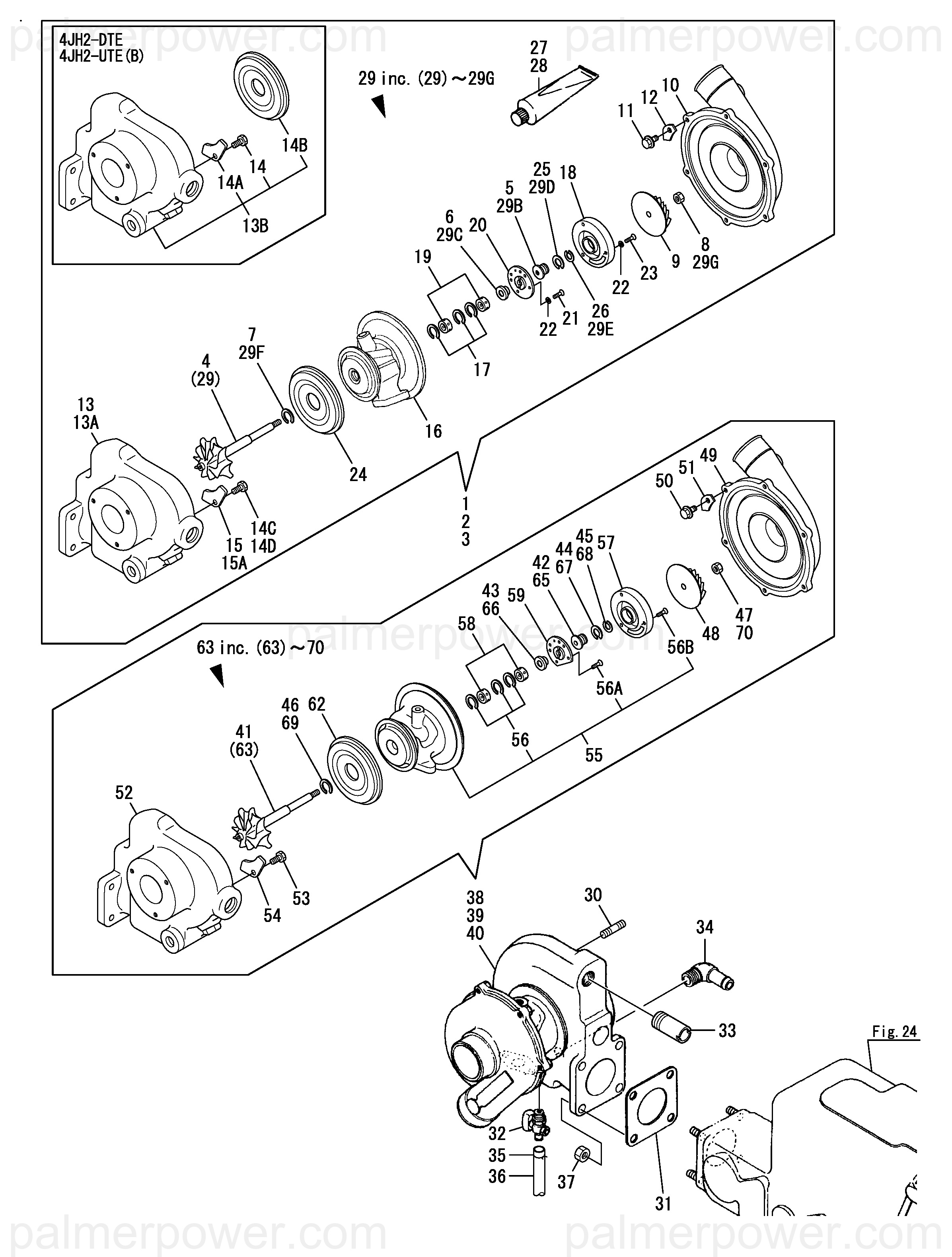

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR XNN134035 New 119101-18530 Plate

Schematic Object Key : 12A

Product Description : RETAINER XNN134035

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
3 TURBINE, RHB52HW 129473-18000
4A SHAFT,TURBO. XNN131502
5 OIL DRIP XNN131004
6 THRUST BUSH XNN131005
7 SEAL RING XNN131106
8 NUT XNN131108
9A WHEEL BR348C XNN136606
10A HOUSING,BLOWER XNN134092
11 BOLT M 5 XNB134007
12A RETAINER XNN134035
13B HOUSING,TURBO. XNN139400
14 BOLT, M8 XNN137007
14A RETAINER XNN137423
14B PROTECTOR, HEAT XNN137055
16B HOUSING,BEARING XNN133442
17 CIRCLIP XNN133204
17-1 CIRCLIP XNN133208
18 SEAL PLATE XNN133001
19 FLOATING BEARING XNN133504
20 THRUST METAL XNN133505
21A SCREW XNN977006
22 WASHER XNN977007
23A SCREW XNN133207
24 PROTECTOR, HEAT XNN137055
25 SEAL RING,BLOW.SIDE XNN131008
26 SEAL RING,BLOW.SIDE XNB131008
27 GASKET, RIQUID XNN193653
28 BONDO XNN193655
30 STUD, M8X31 128170-13600
31-1 GASKET 129472-18090
32 COCK 128695-44090
33 JOINT 129474-44480
33-1 JOINT 104407-44480
34 JOINT 171007-49400
35 RETAINER 124460-77680
36 PIPE, 7X 300 23061-070300
37 NUT, M8 26703-080002
40 TURBINE, RHB52HW 129574-18000
41B SHAFT,TURBO. XNN131502
42 SHELTER XNN131578
43 BUSH, THRUST XNN131579
44 SEAL RING,BLOW.SIDE XNB131008
45 SEAL RING,BLOW.SIDE XNN131008
46 SEALING XNN131536
47 NUT XNN131108
48 IMPELLER XNN136613
49 HOUSING,BLOWER XNN133911
50 BOLT M 5 XNB134007
51 RETAINER XNN134035
52B HOUSING,TURBO. XNE929000
53 BOLT, M8 XNN137007
54 RETAINER XNN137423
55B HOUSING,BEARING XNN133382
56 CIRCLIP XNN133208
56A SCREW XNB133206
56B SCREW(SEAL PLATE XNB133208
57 SEAL PLATE XNN133021
58 METAL, FLOATING XNN133506
59 METAL,THRUST XNN133596
62 PROTECTOR, HEAT XNN137055
