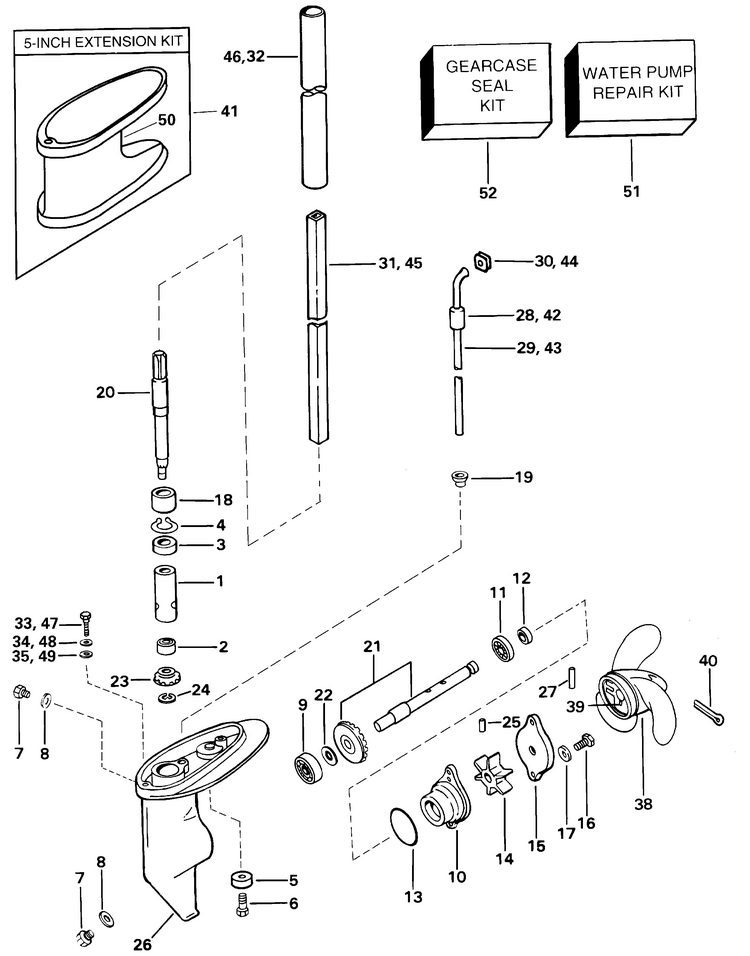

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 32
Product Description: Tube, Driveshaft
Category: JOHNSON / 2001 / 3 / J3RTLSIA Commercial, Rope Start, Tiller, 20 IN. shaft 2001 / GEARCASE - 2RT - RTV - 3RTL
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 0115010 | Spacer, driveshaft bearing | |
| 2 | 0115005 | Bearing, pinion | |
| 3 | 0115004 | Bearing, propeller shaft | |
| 4 | 0115002 | Retainer, driveshaft bearing | |
| 5 | 0114988 | Anode, gearcase | |
| 6 | 0114990 | Screw, anode | |
| 7 | 0114991 | Fill drain plug contents of gearcase seal kit. | |
| 8 | 0114992 | Washer contents of gearcase seal kit. | |
| 9 | 0115006 | Bearing, forward gear | |
| 10 | 0114826 | Gearcase head bearing | |
| 11 | 0115004 | Bearing, propeller shaft | |
| 12 | 0114999 | Oil seal, propeller shaft contents of gearcase seal kit. | |
| 13 | 0114996 | O ring, gearcase head contents of gearcase seal kit. | |
| 14 | 0114812 | Impeller assy. contents of water pump repair kit. | |
| 15 | 0114997 | Cover, water pump | |
| 16 | 0114994 | Screw, bearing housing to g c | |
| 17 | 0115284 | Washer | |
| 18 | 0115003 | Seal, driveshaft contents of gearcase seal kit. | |
| 19 | 0114993 | Grommet, water tube contents of water pump repair kit. | |
| 20 | 0115000 | Driveshaft, gearcase | |
| 21 | 0114813 | Forward gear prop shaft ay | |
| 22 | 0115000 | Driveshaft, gearcase | |
| 23 | 0115001 | Pinion | |
| 24 | 0115011 | E ring, pinion | |
| 25 | 0114995 | Drive pin, impeller contents of water pump repair kit. | |
| 26 | 0115012 | Gearcase housing | |
| 27 | 0115193 | Drive pin | |
| 28 | 0115219 | Tubing | |
| 29 | 0115217 | Water tube | |
| 30 | 0115218 | Grommet | |
| 31 | 0115207 | Transmission shaft | |
| 32 | 0115216 | Tube, driveshaft | |
| 33 | 0115214 | Screw | |
| 34 | 0115215 | Washer, spring | |
| 35 | 0115284 | Washer | |
| 38 | 0115208 | Propeller, 7 1 2 in. x 4 1 2 in. | |
| 38 | 0114848 | Propeller, 7 1 2 in. x 6 in. | |
| 39 | 0115301 | Insert, propeller | |
| 40 | 0115192 | Cotter pin | |
| 40 | 0313693 | Cotter pin | |
| 41 | 0114869 | Extension kit, 5 inch rl models. | |
| 42 | 0115219 | Tubing rl models. | |
| 43 | 0115446 | Water tube, long rl models. | |
| 44 | 0115218 | Grommet rl models. | |
| 45 | 0115445 | Transmission shaft rl models. | |
| 46 | 0115444 | Tube, driveshaft, long rl models. | |
| 47 | 0115214 | Screw rl models. | |
| 48 | 0115215 | Washer, spring rl models. | |
| 49 | 0115284 | Washer rl models. | |
| 50 | 0115443 | Extension, gearcase rl models. | |
| 51 | 0114832 | Water pump repair kit | |
| 52 | 0114831 | Gearcase seal kit |
