EVINRUDE-JOHNSON 122493 END CAP TILT CYL C=4

Write a Review
$60.99
SKU:
122493
Schematic Object Key:
30

EVINRUDE-JOHNSON 122493 END CAP TILT CYL C=4

$60.99

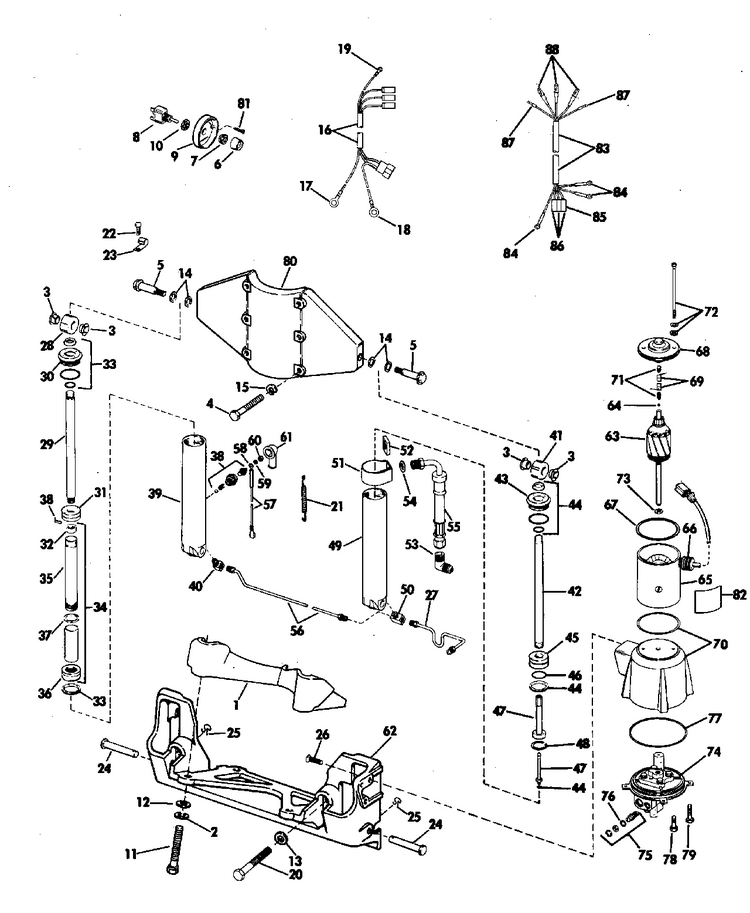

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 122493 End Cap

Schematic Object Key : 30

Product Description: End Cap

Category: EVINRUDE / 1981 / 60 / E60ECIA 1981 / POWER TILT AND TRIM

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
0172858 0172858 Power tilt trim ass.y
1 0122809 Bracket, lower support
2 0307708 Lock washer, mounting
3 0308532 Bague, levier de verrouillage
4 0314949 Screw
5 0122534 Pivot screw, lift bracket
0172899 0172899 . trim switch bezel assy.
6 0310781 Cache, interrupteur
7 0310782 Ecrou, interrupteur
8 0976443 Interrupteur, relevage assisté
9 0122849 . . bezel, trim switch
10 0900185 Ecrou
11 0552899 Screw, lwr, supp. brkt., short
11 0553104 Screw, alternator
12 0330266 Washer, trail lock lever This part replaces 0552993.
13 0306428 Flat washer, trans. bolt
14 0319278 Rondelle, pivot
15 0306470 Lock washer
16 0172766 Trim cable assy
17 0310502 Terminal, ring
18 0204053 Borne, anneau 0,312" 7,9 mm diamètre
19 0204036 10 ring termial,12v
20 0363012 Screw, bracket mounting This part replaces 0313327.
21 0318290 Spring, reverse lock
21 0302736 3spring, reverse lock, 3"
22 0305009 Screw
23 0304494 Clamp
0172835 0172835 Hydraulic lift assy
0172667 0172667 . trim cyl. assy.
24 0317768 . . pivot pin
25 0319808 . . spring clip
26 0341013 Screw, cover This part replaces 0908668.
27 0172872 . . tilt line assy., lower
0172796 0172796 . . piston rod, trim cylinder
28 0122498 . . . loop
29 0122818 . . . piston rod
30 0122493 . . . end cap
31 0122503 . . . bearing, piston
32 0122542 . . . stop, piston rdo
33 0174520 O ring kit This part replaces 0172575.
34 0172662 . . . sending unit assy.
35 0122502 . . . . carrier, piston
36 0122505 . . . . piston
37 0122506 . . . . push on ring
38 0172574 . . . sending unit kit
39 0172571 . . trim cylinder assy.
40 0122510 . . . elbow
0172822 0172822 . tilt cyl. assy., complete
0172826 0172826 . . piston rod, tilt cylinder
41 0122498 . . . loop
42 0122492 . . . piston rod
43 0122493 . . . end cap
44 0174520 O ring kit This part replaces 0172575.
45 0122512 . . . piston
46 0122515 "o" ring, valve guide
47 0173206 . . . relief valve assy.
48 0122514 . . . ret. ring, relief valve
49 0172840 . . tilt cylinder tee assembly
50 0122497 . . . tee
51 0122527 . . . tilt band
52 0122528 . . . nut, tilt bank
53 0122779 . . . elbow
54 0202893 "o" ring, drive shaft
55 0172838 . . . tilt line assembly, upper
56 0172672 . trim line assy., lower
57 0172673 . lead assy., sending unit
58 0204036 10 ring termial,12v
59 0303715 Washer, rivet
60 0309485 Ecrou, vis, rotule
61 0314902 . cover, terminal
62 0122730 . support bracket
0172655 0172655 . pump motor assy.
63 0172851 . . . armature
64 0122788 . . . ball
65 0172852 . . . frame field assy.
66 0122619 Connector This part replaces 0122789.
67 0122790 . . . gasket
68 0172853 . . . head assy.
69 0172854 . . . . brush set
70 0172855 . . . reservoir o ring assy.
71 0382950 . . . spring set, brush
72 0172856 . . . thru bolt package
73 0314372 . . . washer
74 0172857 . . valve body gear cage assy.
75 0172601 . . . manual relief valve
76 0309996 "o" ring, 7 16 o.d.
77 0122791 "o" ring, 3.87 o.d.
78 0306357 . . . screw, short, 5 8" long
79 0132123 . . . screw, long, 1 1 4" long
0173569 0173569 . . check valve assy.
80 0123726 Lift bracket
81 0122481 Spacer, pivot
82 0122548 Decal, pump unit, johnson
82 0122549 Decal pump unit, evinrude
0173569 0173569 . . check valve assy.
83 0173304 Extension cable assy,5 ft.
83 0173306 Extension cable assy,10 ft.
84 0204036 10 ring termial,12v
85 0311742 Connecteur
86 0511656 Terminal
87 0308808 Cosse, plate
88 0123371 Terminal
