EVINRUDE-JOHNSON 310098 Link, Shallow Water Drive

Write a Review
$12.99
SKU:
310098-OMC
Schematic Object Key:
29

EVINRUDE-JOHNSON 310098 Link, Shallow Water Drive

$12.99

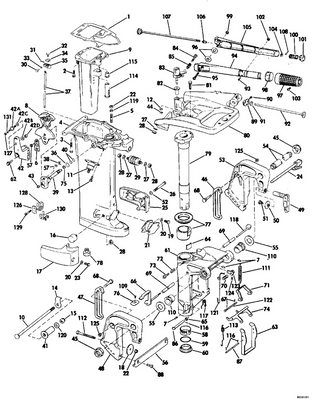

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 310098 Link, Shallow Water Drive

Schematic Object Key : 29

Product Description: Link, Shallow Water Drive

Category: JOHNSON / 1970 / 9.5 / 9RL70A 1970 / STERN BRACKET GROUP

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0380953 Swivel bracket assy
2 0313607 Lube fitting
3 0309713 Seal, swivel bracket
4 0309781 . plug, float chamber
5 0379167 Bearing, swivel bracket
6 0309777 Seal, steering friction
7 0309831 Nut, steering friciton screw
8 0309825 Spring, steering friction
9 0309721 Washer, lower
10 0309723 Pad, friction
11 0309735 Plate steering friction
12 0309718 Washer, top
13 0309717 Screw, steering friction
14 0310093 Scew, plate, steering friction
15 0510412 Bow washer
16 0312090 Selector, tilt lock
17 0303887 Washeer, pin to swivel bracket
18 0312087 Washer, bracket to selector
19 0310072 Shoulder screw, selcetor
20 0300723 Cotter pin
21 0380952 Rod pin assy., tilt lock
22 0307901 Roll pin
23 0202612 "o" ring, tilt lock rod
24 0310095 E ring, small
25 0308684 Screw, cover to housing
26 0309732 Handle, carring
27 0310068 Pivot pin, locking lever
28 0309750 Washer, spring
29 0310098 Link, shallow water drive
30 0309820 Lever, locking, reverse lock
31 0309837 Spring, reverse lock
32 0310079 Wire, lever to reverse lock
33 0385958 Clamp sc r.,casing guide This part replaces 0303219.
34 0301963 Screw, clamp, wire
35 0310070 Spring, ratchet
36 0310090 Ratchet, swivel bracket
37 0310182 Plate, ratchet retainer
38 0308684 Screw, cover to housing
39 0309734 Shaft, steering pivot, upper
40 0303191 "o" ring, lever shaft
41 0309722 Thrust washer, inner
42 0310077 Shaft, steering pivot, lower
43 0310071 Thrust washer, inner
44 0380215 Stern bracket assy., starboard
45 0433675 Clamp scr. hand. assy. This part replaces 0377311.
46 0337017 Plate, swivel This part replaces 0307561.
47 0302420 . retainer
48 0306459 Washer, injector
49 0310096 Scre, throttle link
50 0380954 Stern bracket assy., port incl, item 45
51 0310067 Anchor plate, port
52 0309719 Bolt, tilting
53 0380133 Cone ratchet wheel
54 0311511 Pin, choke lever
55 0309773 Washer, tilting bolt
56 0302051 Spring tilting bolt
57 0300364 Link, conical, tilt shaft
58 0552938 Locking nut, 3 8 x 24 This part replaces 0306319.
59 0310069 Rod, tilt adjustment
60 0310064 Pinion, tilt adjustment
61 0305380 . roll pin
62 0306433 Washer
63 0310076 Spring, knob, tilt adjustment
64 0310089 Knob, tilt adjusting
65 0309738 Plate stern bracket
66 0311326 Conical washer
