EVINRUDE-JOHNSON 311808 Cam, Fast Idle

Write a Review
$1.25
SKU:
311808
Schematic Object Key:
24

EVINRUDE-JOHNSON 311808 Cam, Fast Idle

$1.25

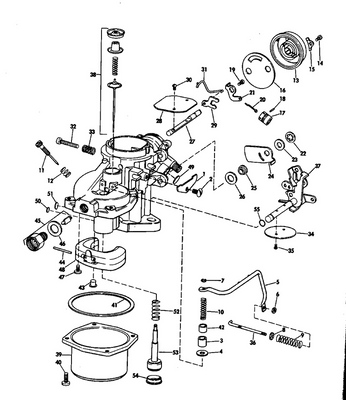

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 311808 Cam, Fast Idle

Schematic Object Key : 24

Product Description: Cam, Fast Idle

Category: STERN DRIVE / 1972 / 245 / XUFM-21A 1972 / CARBURETOR GROUP 100 HP STERN DRIVE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
0979670 0979670 Carburetor assembly
1 0311788 Pump arm retainer
2 0311794 Screw, pump arm retainer
3 0311820 Bushing, pump plunber shaft
4 0311804 Washer, pump
5 0311818 Pump arm
6 0311798 Nut, pimp arm connector link
7 RETAINER, Pump rod
8 0311789 Retainer, pump arm connector link
9 0311819 Spring, pump arm connector link
10 SPRING, Pump, upper
11 0311776 Screw, idle adjustment
12 0311784 Spring, idle adjustment
13 0380615 Thermostat coil housing assembly
14 0907754 Screw, coil housing
15 0311787 Retainer, coil housing
16 GASKET, Coil housing
17 0311807 Piston, choke
18 0311806 ,pin, choke piston
19 0311792 Screw, choke piston lever
20 0311800 Link, choke piston
21 0311771 Lever, choke piston
22 0311791 Retainer, fast idle
23 0311805 Washer, fast idle cam collar
24 0311808 Cam, fast idle
25 0311781 Collar, fast idle cam
26 0311803 Washer, fast idle cam
27 0311770 Choke shaft
28 0311768 Choke valve
29 0907750 Choke lever
30 0907751 Screw, choke valve
31 0311799 Rod, connector fast idle
32 0311796 Screw, throttle
33 0311782 Spring, throttle adjusting screw
34 0311816 Throttle valve
35 0907752 Screw, throttle valve
36 0311821 Link, pump arm connector
37 0381378 Throttle shaft lever
38 UNITZED PACKAGE, Step rod & diaphragm assy
39 0311774 Bowl
40 0311797 Screw, bowl attaching
41 GASKET, Bowl ring
42 0311812 Bushing, pump plunger
43 PLUG, Pump plunger
44 0311775 Float lever pin
45 NEEDLE & SEAT ASSY.
46 0311773 Gasket, needle seat
47 0311793 Screw, float pin
48 0380616 Float lever assy
49 0311779 Welsh plug, choke piston
50 0907753 Welsh plug, fuel well
51 0311769 Plug, idle port
52 0311783 Spring, pump, lower
53 PUMP PLUNGER ASSY.
54 INTAKE CHECK ASSY.
55 0312405 O ring, throttle shaft
