EVINRUDE-JOHNSON 312149 Cap, Exhaust Manifold, Stbd

Write a Review
$69.00
SKU:
312149
Schematic Object Key:
8

EVINRUDE-JOHNSON 312149 Cap, Exhaust Manifold, Stbd

$69.00

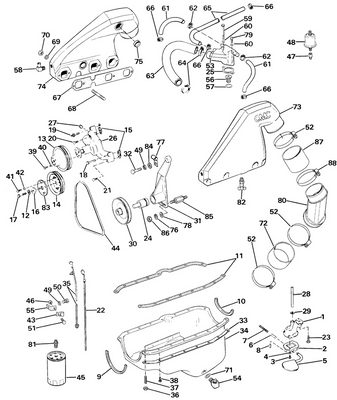

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 312149 Cap, Exhaust Manifold, Stbd

Schematic Object Key : 8

Product Description: Cap, Exhaust Manifold, Stbd

Category: STERN DRIVE / 1972 / 245 / JX-245 1972 / COOLING AND OILING GROUP 155 HP STERN DRIVE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0310972 Hose, inlet
2 0310973 Hose, manifold lower to thermo upper
3 0307899 Clamp
4 0306422 Nut
5 0301250 Rondelle
6 0979758 Exhaust manifold stud assembly, port
7 0310870 Stud
8 0312149 Cap, exhaust manifold, stbd
9 0311130 Gasket
10 0380985 Heat exchanger
11 0552938 Locking nut, 3 8 x 24
12 0306405 Washer, c c stud nut
13 3852093 Stud, lift bracket This part replaces 0310968.
14 0907775 Gasket
15 0907777 Elbow, exhaust manf., stbd
16 0310904 Nipple, elbow
17 0316527 Hose, inter hsg to elbow
18 0310894 Clamp
19 0312771 Guard,ring gear
20 0311076 Clamp, oil pump to bracket
21 0312479 Hose
22 0312148 Cap, exh. manifold port
23 0171960 Sender, water temperature
24 0121689 Terminal, adapter
25 0979759 Manifold stud assy, stbd
26 0310870 Stud
27 0907848 Elbow, drain pan
28 0979817 Oil line assembly
29 0379957 Petchock assy, water drain
30 3852426 Seal, cap oil drain tube This part replaces 0907845.
31 0979819 Cap bead assy
32 0907851 Clamp, oil tube to block
33 0307137 Screw, clamp oil tube
34 0306325 . . lockwasher, solenoid screw
35 3852427 Clamp, fuel line to bracket This part replaces 0907852.
36 0909632 O ring, sleeve This part replaces 0907847.
37 0306453 Lockwasher, fuel pump
38 0311046 Belt
39 0306369 Screw
40 0306325 . . lockwasher, solenoid screw
41 0907776 Elbow, exhaust manf., port
42 0306322 Bolt, water pump
43 0310923 Reinforcement
44 OIL FILTER (AC TYPE PF-7 OR PUROLATOR PER-5)
45 0380993 Water pump assembly
46 0312161 Gasket
47 0302288 Bolt
48 0303806 Tubing
49 0300355 Screw
50 0328724 Screw This part replaces 0316382.
51 0314810 Housing, upper
52 0314809 Gasket
53 0383307 Termostat assembly
54 0310913 Gasket
55 0314825 Housing, lower
56 0310902 Gasket
57 0979807 Oil pressure switch ay
58 0379760 Pulley, water pump
59 0310921 Pulley
60 1379350 Housing screen
61 G-180017 Bolt, hex, 1 4 20 x 9 16"
62 1379763 Baffle, oil pan
63 GASKET
64 G-121317 Bolt, baffle to block
65 G-121317 Bolt, baffle to block
66 9428179 Screw lockwasher, 1 4 20 x 1 1 8"
66 9428180 Screw lockwasher, 1 4 20 x 1 3 8"
67 1368223 Screw
68 1374247 Rod, crankcase oil gauge
69 1193862 Gasket
1396313 1396313 Kit, oil pump
70 2194360 Cap
71 GEAR (N.S.S.)
72 SHAFAT & GEAR (N.S.S.)
73 1385179 Gasket
74 1382725 Cover
75 1368502 Valve
76 1382626 Spring
77 1196899 Gasket
78 0307920 Screw
79 0383440 Boltage reg cable assy
80 0204036 10 ring termial,12v
81 0308808 Cosse, plate
