EVINRUDE-JOHNSON 315076 Washer Rivet, Plate To Air Silencer

Write a Review
$1.25
SKU:
315076
Schematic Object Key:
17

EVINRUDE-JOHNSON 315076 Washer Rivet, Plate To Air Silencer

$1.25

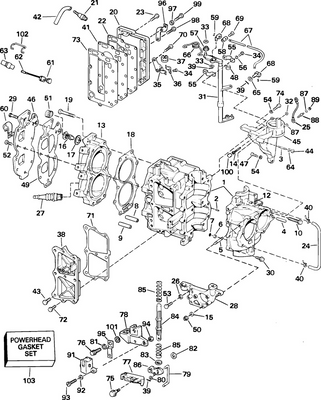

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 315076 Washer Rivet, Plate To Air Silencer

Schematic Object Key : 17

Product Description: Washer Rivet, Plate To Air Silencer

Category: EVINRUDE / 1969 / 115 / 115983E 1969 / INTAKE MANIFOLD AND CARBURETOR GROUP

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0383414 Intake manifold assembly
2 0314513 Fitting, fuel inlet
3 0314956 Stud
4 0315052 Gasket carb. to manifold
5 0383335 Carburetor assembly complete, upper
6 0383435 Carburetor assembly compelte, lower
7 0315093 Gasket, air silencer
8 0314962 Gasket, leaf plate
9 0306397 Nut
10 0306396 Lock washer, control to boat
11 0383986 Leaf plate assembly
12 0327074 Screw This part replaces 0307129.
13 0319174 Gasket, exhaust cover, 85, 100, 115 hp This part replaces 0314963.
14 0316116 Screw
15 0383666 Cover assembly
16 0326948 Rivet, locating brackets This part replaces 0314509.
17 0315076 Washer rivet, plate to air silencer
18 0315102 Arm, slow speed adj outer
19 0315094 Bushing
20 0315198 Spring
21 0315101 Bushing, link to lever
22 0315095 Ling, slow speed, port
23 0315096 Link, slow speed adjust, starboard
24 0315092 Screw, air silencer base
25 0314513 Fitting, fuel inlet
26 0438559 Fuel pump assy., lower This part replaces 0383765.
27 0330061 Screw, cap This part replaces 0312677.
28 0312678 ,cap filter
29 0312675 Screen
30 0338879 Gasket, cap to pump, upper This part replaces 0312679.
31 0310302 Screw pump assy
32 0319741 Tee This part replaces 0315228.
33 0552199 Clamp
34 0772572 Hose, exhaust pressure inlet This part replaces 0315229.
35 0309523 Clamp
36 0303617 Hose This part replaces 0315599.
37 0328717 Nut, ground lead This part replaces 0308777.
38 0203909 Hose, oil return This part replaces 0203287.
39 0303617 Hose This part replaces 0554331.
40 0307529 "o" ring, cam follower
41 0387788 Link plunger assy, 85 hp This part replaces 0314025.
42 0314026 Spring
43 0313636 Plunger
44 0315060 Yoke, choke soleniod, 85 hp only
45 0315260 Screw, rectifier mounting
46 0580755 Solenoid assembly, choke
47 0510780 8 ring termianl
48 0510781 Tubing, sleeve
49 0510827 Ring terminal
50 0981185 Screw, cover to base This part replaces 0308686.
51 0302288 Bolt
52 0306493 Screw, regulator mounting
53 0383638 Bellcrank assembly, slow speed
54 0313329 Lockwasher, carburetor link
55 0384188 Link assembly
56 0314897 Hose, air silencer
57 0318974 Fastener, cable clamp This part replaces 0314886.
58 0303686 Screw, fastener
59 0315050 Base, air silencer
60 0310441 Clamp, small
61 0313792 Arm, slow spd adj., upper lower
62 0332845 Hose This part replaces 0315227.
63 0303791 Screw
64 0310442 Clamp, tps lead
65 0305650 Cotter pin
