EVINRUDE-JOHNSON 318917 GASKET C=4

Write a Review
$4.88
SKU:
318917-OMC
Schematic Object Key:
7

EVINRUDE-JOHNSON 318917 GASKET C=4

$4.88

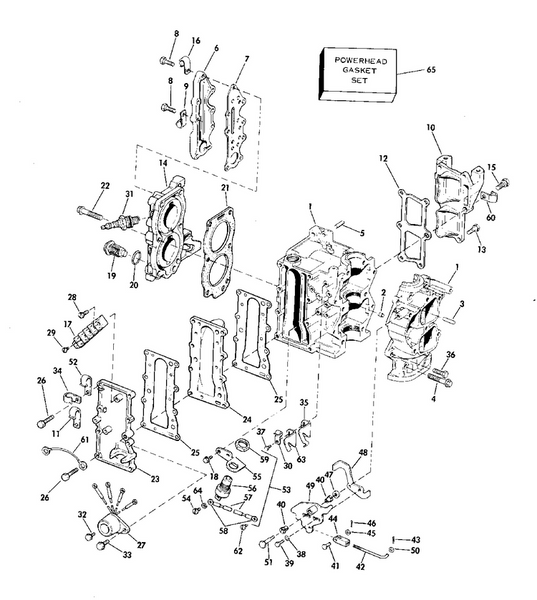

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 318917 Gasket, Water Cover

Schematic Object Key : 7

Product Description: Gasket, Water Cover

Category: JOHNSON / 1975 / 15 / 15E75C 1975 / CYLINDER & CRANKCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0386460 Cylinder and crankcase assembly
2 0304178 Pin, dowel
3 0300402 Taper pin
4 0318622 Screw, cylinder to crankcase
5 0319627 Pin, shift lever
6 0318918 Water cover, cylinder head
7 0318917 Gasket, water cover
8 0306409 Screw, anchor block lower
9 0330151 Cable clamp, filter This part replaces 0309322.
10 0336637 Bypass cover This part replaces 0318928.
10 0319350 By pass cover
11 0330151 Cable clamp, filter This part replaces 0309322.
12 0319332 Gasket, by pass cover
13 0300646 Screw, clamp, fuel filter
14 0320495 Cylinder head assembly
15 0302479 Screw, starter mounting
15 0306322 Bolt, water pump
16 0330151 Cable clamp, filter This part replaces 0309322.
17 0511271 Terminal block
18 0315287 Screw
19 5005440 Thermostat This part replaces 0378065.
20 0310058 Gasket, thermostat
21 0330818 Gasket, cylinder head This part replaces 0320533.
22 0318622 Screw, cylinder to crankcase
23 0321554 Exhaust cover, outer This part replaces 0318927.
24 0318926 Exhaust cover, inner
25 0318925 Gasket, exhaust cover
26 0303398 Screw, lower This part replaces 0302030.
27 0581778 Rectifier lead assy. This part replaces 0581366.
28 0307195 Screw rectifier mounting
29 0315003 Screw, teminal to terinmal block
30 0310442 Clamp, tps lead
31 0386035 Spark plug, cchampion l7j
32 0315260 Screw, rectifier mounting
33 0552421 Screw, rectifier mounting
34 0330151 Cable clamp, filter This part replaces 0309322.
35 0319414 Detent, shift hook
36 0306409 Screw, anchor block lower
37 0315287 Screw
38 0303952 Washer, stator mounting
39 0319574 Screw, lever to stop
40 0311015 Bushing, pawl
41 0319127 Pin, clevis lever to lock lever
42 0319066 Link, shift lever to lock lever
43 0305650 Cotter pin
44 0318955 Clevis, link to bellcrank
45 0303715 Washer, rivet
46 0306376 Cotter pin
47 0306407 Locckwasher,cover latch
48 0319413 Stop, shift lock
49 0387257 Lever hub assy., shift lock
50 0303715 Washer, rivet
51 0319415 Screw
52 0330151 Cable clamp, filter This part replaces 0309322.
53 0581293 Bracket switch, netural start
54 0308120 . screw
55 0319543 . bracket, neut. start sw.
56 0395699 Starter switch This part replaces 0386457.
57 0581288 . lead assy., switch
58 0204039 10 ring terminal
59 0319601 . nut, switch
60 0314254 Clamp This part replaces 0310620.
61 0376349 Lead, ground
62 0308120 . screw
63 0320890 Support, detent
64 0303916 Lock washer, ground terminal
65 0394546 Powerhead gasket set This part replaces 0386699.
