EVINRUDE-JOHNSON 319174 GASKET C=4

Write a Review
$9.01
SKU:
319174-OMC
Schematic Object Key:
46

EVINRUDE-JOHNSON 319174 GASKET C=4

$9.01

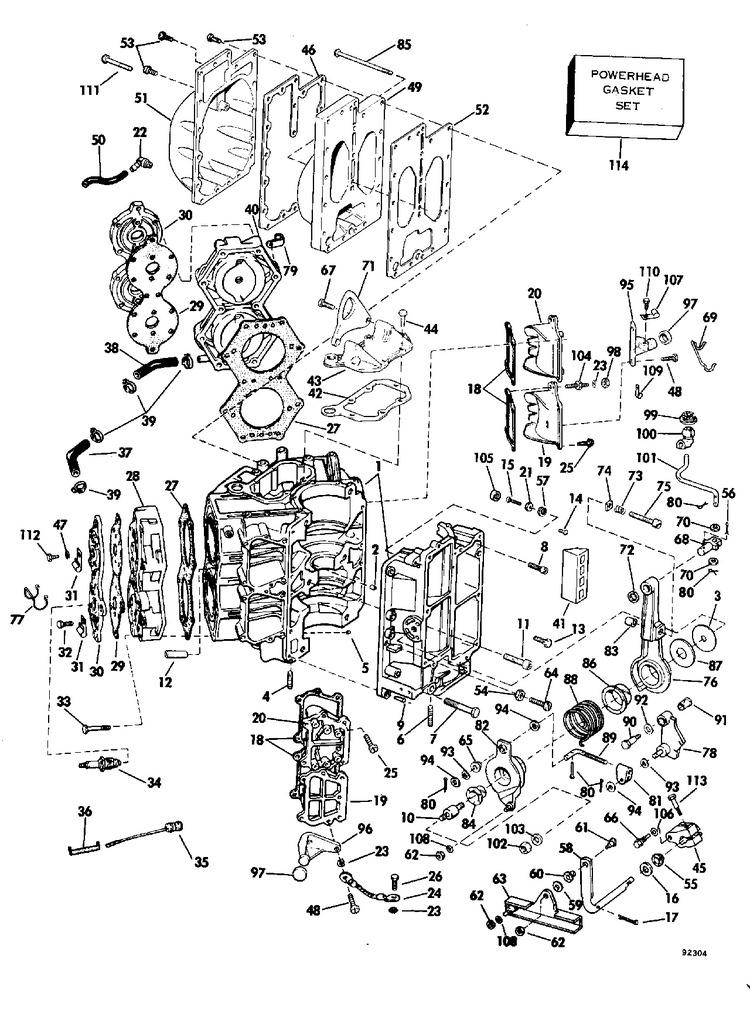

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 319174 Gasket, Exhaust Cover, 85, 100, 115 Hp

Schematic Object Key : 46

Product Description: Gasket, Exhaust Cover, 85, 100, 115 Hp

Category: JOHNSON / 1979 / 85 / 85ML79R 1979 / CYLINDER AND CRANKCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0431659 Cyl c'case assy., 88 90 models This part replaces 0389912.
1 0394452 Cylinder c'case assy, 115 This part replaces 0389606.
1 0431658 Cyl c'case assy., 115 models This part replaces 0389548.
2 0304178 Pin, dowel
3 0318562 Washer, stud
4 0321640 Stud
5 0310507 Plug
6 0314616 Stud
7 0308752 Screw, main brg. upper lower
8 0318907 Screw, c'case to cyl top
9 0305070 Axe, carter moteur vers bloc
10 0322986 Stud, throttle lever
11 0319592 Scerw,cyl.to c'case,center
12 0322411 Deflector, water pass
13 0300646 Screw, clamp, fuel filter
14 0306778 Ecrew,exhaust cover,1 3 8"long
15 0334218 Screw, spark adjustment This part replaces 0316286.
16 0202026 Washer, rod
17 0552906 Cotter pin, upper pivot
18 0307133 Gasket
19 0310532 Cover by pass
20 0323045 Cover, by pass
21 0328741 Nut, input stud This part replaces 0304753.
22 0321886 Elbow
23 0328701 Lockwasher, double ended bolt This part replaces 0303480.
24 0376349 Lead, ground
25 0306049 Screw
26 0908158 Screw, anode This part replaces 0305284.
27 0318358 Gasket, cyl. head
28 0326505 Cylinder head, stbd This part replaces 0324529.
28 0326503 Cylinder head, stbd., 115 only This part replaces 0322865.
29 0318335 Cover, cylinder head
30 0318333 Cover, cylinder head
31 0330151 Cable clamp, filter This part replaces 0309322.
32 0306409 Screw, anchor block lower
33 0307267 Screw
34 0386941 Spark plub,champion l77j4
34 0386939 Park plug,ac m40ffx
34 0384771 Spark plug, ch ul 77v
35 0386686 Switch temp
36 0303806 Tubing
37 0340975 Hose, cylinder head, stbd. This part replaces 0321724.
38 0340976 Hose, cylinder head, port This part replaces 0321723.
39 0324825 Clamp, cylinder head hose
40 0326504 Cylinder head, port This part replaces 0324528.
40 0326502 Cylinder head, port, 115 only This part replaces 0322864.
41 0322684 Filler block
42 0317951 Gasket, water pass. cover
43 0318473 Cover, water passage
44 0308742 Screw, crankcase to cylinder
45 0326642 Lever, shift rod This part replaces 0318539.
46 0319174 Gasket, exhaust cover, 85, 100, 115 hp
47 0306488 Lock washer, solenoid ground
48 0331025 Screw This part replaces 0308751.
49 0317729 Cover, exh. inner
49 0322689 Cover, exh. inner
49 0323468 Exhaust manifold
50 0323335 Hose, elbow to nipple, 150, 175, 200
50 0323320 Hose, oil cooler to adapter
51 0329503 Cover, exh. outer This part replaces 0323153.
51 0390015 Cover, exh. manifold
52 0323469 Gasket, exh. manifold to cyl. 140 hp
53 0309905 Scew,cylinder head
53 0308728 Screw
54 0328712 Écrou, montage instrument This part replaces 0204046.
55 0312708 Bushing
56 0120356 Cotter pi, retainer
57 0306396 Lock washer, control to boat
58 0323089 Shift lever
59 0329241 Washer This part replaces 0305981.
60 0315101 Bushing, link to lever
61 0323264 Pin
62 0328064 Nut This part replaces 0554427.
63 0395475 Link pin assy This part replaces 0389882.
64 0316602 Screw, letdown plate
65 0314125 Bushing, shift handle linkage rod
66 0327590 Pin, shift lever This part replaces 0323267.
67 0314515 Screw
68 0315104 Retainer, 3 ing. lead
69 0315182 Clamp, cables
70 0306547 3.washer, mounting stud
71 0323898 Bracket, lift
72 0330179 Washer This part replaces 0303304.
73 0308993 Ressort, friction d'accélération
74 0203688 Nut
75 0322357 Screw, idle adjust
76 0318561 Lever, spark adjust
77 0322549 Dispositif de retenue, bouchon
78 0395310 Throttle cam assy. This part replaces 0386588.
79 0310928 Clamp, steering bracket
80 0305650 Cotter pin
81 0310524 Yoke
82 0391936 Lever, throttle This part replaces 0387956.
83 0318660 Bumper, screw, throttle stop
84 0315081 Bushing, shoulder screw
85 0317972 Acrew,exh manf to cyl.,4 1 4" long
86 0318560 Bushing, spark lever
87 0322987 Washer, throttle lever
88 0314094 Link, throttle lever to cam
89 0330159 Rod, throttle lever to cam This part replaces 0321726.
90 0314136 Screw, shift lever to bracket
91 0314137 Nylon bushing
92 0204445 Bow washer
93 0204757 Bow washer
94 0302474 Wahser,link
95 0319217 Pin,clevis to shift lock
96 0319218 Support bnrace,stbd.
97 0313581 Bumber, mount screw
98 0328740 Nut, throttle friction This part replaces 0301472.
99 0395448 Ball socket assy This part replaces 0313700.
101 0318402 Rod, spare advance
103 0320397 Washer in tiller kit .390 i.d. x .750 o.d. x 0.120 in
105 0314416 Bumber, advance screw
106 0302290 Washer
110 0303311 Scr,clamp,eng cable
