EVINRUDE-JOHNSON 331211 Gasket, Cylinder Head

Write a Review
$49.99
SKU:
331211-OMC
Schematic Object Key:
21

EVINRUDE-JOHNSON 331211 Gasket, Cylinder Head

$49.99

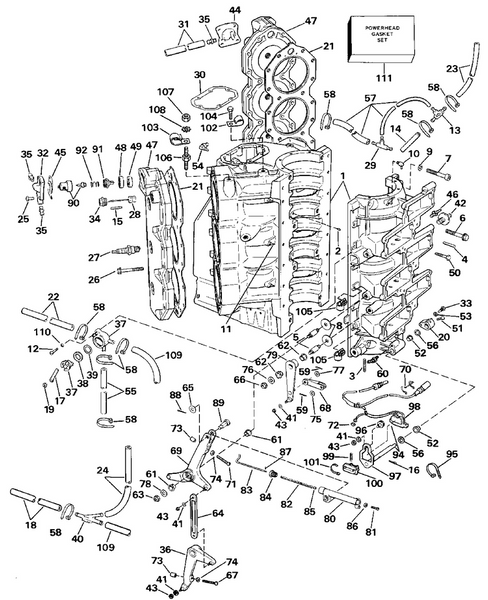

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 331211 Gasket, Cylinder Head

Schematic Object Key : 21

Product Description: Gasket, Cylinder Head

Category: EVINRUDE / 1987 / 225 / E225CLCUB 1987 / CYLINDER & CRANKCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0395923 Cylinder c'case assy.
2 0304178 Pin, dowel
3 0314616 Stud
4 0331095 Pin, c c taper
5 0338653 Stud, shift throttle levers This part replaces 0320808.
6 0326891 Screw, cylinder to crankcase
7 0326890 Screw, cylinder to crankcase
8 0320744 Washer, stud
9 0322232 Washer
10 0321598 Crankcase fitting
11 0325604 Fitting, boost port
12 0329892 Screw, housing
13 0394892 Check valve assy.
14 0772570 Flexible, évent vers silencieux d'admission d'air , 2 1 4" 57 mm This part replaces 0332219.
15 0303806 Tubing
16 0330145 Cotter pin
17 0329740 Arm, control arm
18 0329990 Hose, overboard
19 0315094 Bushing
20 0326644 Lever, shift rod
21 0331211 Gasket, cylinder head
22 0330366 Hose, control valve to cover
23 0772570 Flexible, évent vers silencieux d'admission d'air , 2 1 4" 57 mm This part replaces 0332219.
24 0331215 Horse, elbow to tee
25 0909533 Screw, adapter
26 0322323 Screw
27 0502180 Spark plug, champion ql77jc4 This part replaces 0387633.
28 0386686 Switch temp
29 0325569 Tee, primer solenoid hoses
30 0344472 Gasket, rect. reg. to cyl. block This part replaces 0330412.
31 0330365 Hose, oil cooler to aspirator
32 0329745 Cover, thermostat stbd
33 0327590 Pin, shift lever
34 0329562 Cache, interrupteur
35 0330272 Fitting
36 0396374 Throttle lever, lower
37 0394407 Control valve
38 0329787 Seal
39 0330262 Wiper
40 0330474 30 tee, water return hoses
40 0912234 Tee, 30
41 0328737 Washer
42 0435009 Pulse limiter This part replaces 0174404.
43 0328064 Nut
44 0329744 Cover, thermostat, port
45 0394408 Diaphragm, thermostat cover
46 0392988 Check valve
47 0398268 Cylinder head
47 0398269 Cylinder head
48 0330273 Cap, thermostat
49 0320880 Seat
50 0302288 Bolt
51 0328695 Clamp, engine cable
52 0312708 Bushing
53 0302290 Washer
54 0331894 Elbow
55 0331933 Hose, adapter to control valve
56 0202026 Washer, rod
57 HOSE, Drain system
58 0320107 Tie strap
59 0305650 Cotter pin
60 0319253 Fitting, c c lubrication
61 0308532 Bague, levier de verrouillage
62 0308532 Bague, levier de verrouillage
63 0315077 Locknut, 3 8 24 ss
64 0331224 Link, shift lever to shift arm
65 0330995 Washer, override spring
66 0315077 Locknut, 3 8 24 ss
67 0331635 Screw, idle stop
68 0331737 Link, shift arm
69 0396714 Throttle lever, upper
70 0511618 Retainer, connector, 2 pin
71 0333976 Screw, actuator 1 4 20 x 2.5
72 0328701 Lockwasher, double ended bolt
73 0318660 Bumper, screw, throttle stop
74 0328741 Nut, input stud
75 0328702 Washer
76 0330266 Washer, trail lock lever
77 0328702 Washer
78 0330266 Washer, trail lock lever
79 0433481 Shift arm This part replaces 0393873.
80 0396667 Link assy., spark advance
81 0331879 Screw
82 0326738 Spring, link
83 0331863 Rod, spark advance link
84 0331864 Cap, spring housing
85 0328635 Bushing, spring
86 0328712 Écrou, montage instrument
87 0329770 Pin, rod
88 0330145 Cotter pin
89 0328636 Pin, advance link
90 0434137 Thermostat assy, This part replaces 0394409.
91 0434137 Thermostat assy, This part replaces 0329766.
92 0394411 Thermostat seat assy.
94 0396314 Shift lever switch
95 0320107 Tie strap
96 0331404 Axe, interrupteur de démarrage au point mort
97 0396770 Shift lever shaft
98 0583210 Switch slider
99 0333749 Ressort, interrupteur de démarrage au point mort
100 0331767 Retainer
101 0317893 Tie strap
102 0310928 Clamp, steering bracket
103 0309040 Clamp, exhaust cover
104 0319590 Screw, plate 3 8 16 x .75
106 0333595 Bolt, double end
107 0328740 Nut, throttle friction
109 0331216 Hose, control valve to tee
110 0303715 Washer, rivet
111 0398172 Powerhead gasket set
