EVINRUDE-JOHNSON 332682 Timing Pointer

Write a Review
$11.99
SKU:
332682-OMC
Schematic Object Key:
48

EVINRUDE-JOHNSON 332682 Timing Pointer

$11.99

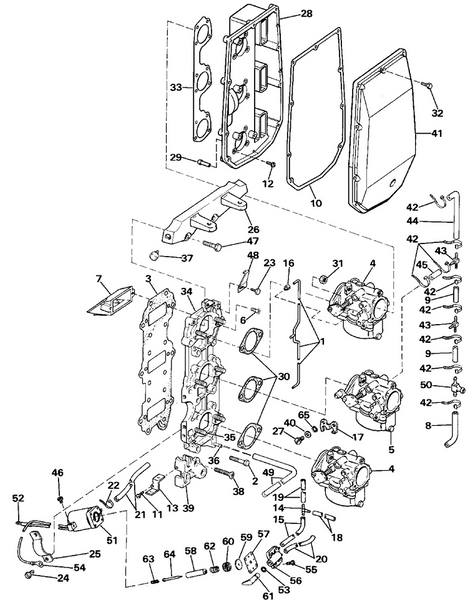

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 332682 Timing Pointer

Schematic Object Key : 48

Replacement: This part (332682) replaces 0330127.

Product Description: Timing Pointer

Category: EVINRUDE / 1984 / 75 / E75ELCRD 1984 / INTAKE MANIFOLD

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0432271 Link pin, middle arm This part replaces 0394733.
2 0554306 Screw, cyl. to crankcase
3 0326926 Gasket, plat to manifold
4 CARBURETOR ASSEMBLY, Upper and lower
5 CARBURETOR ASSEMBLY, Middle
6 0316116 Screw
7 0389731 Leaf plate assembly This part replaces 0389553.
7 0389731 Leaf plate assembly
8 HOSE, Tee to carburetor, lower, 1-3/4" length
9 HOSE, Tee to tee 1" length
10 0321794 Gasket, air silencer cover
11 0310626 Screw, retainer
12 0327794 Screw, base to carburetor
13 0320180 Retainer, trunnion
14 0325569 Tee, primer solenoid hoses
15 HOSE, Primer to tee 7"
16 0313329 Lockwasher, carburetor link
17 0321071 Lever, throttle adjustment
18 HOSE, Tee to middle carb. 2-3/4"
19 HOSE, Tee to upper carb. 5"
20 HOSE, Primer to lower carb 3-3/8"
21 HOSE, Tee to primer 4-1/2"
22 0317893 Tie strap
23 0328714 Screw, clip
24 0319292 Screw, clamp
25 0330153 Clamp, primer solenoid
26 0330509 Mounting bracket This part replaces 0329341.
27 0328714 Screw, clip
28 0333009 Base assembly This part replaces 0329243.
29 0314513 Fitting, fuel inlet
30 0325092 Gasket
31 0316355 But, carburetor mounting
32 0330838 Screw, baffle This part replaces 0319317.
33 0333008 Gasket, air silencer This part replaces 0321793.
34 0389395 Manifold, intake
35 0314497 Stud, carburetor mounting
36 0325659 Fitting
37 0314021 Bumber, exhaust manifold
38 0324315 Screw, anchor block
39 0324316 Ancholr block, trunnion
40 0328735 Washer, screw, ball joint
41 0388264 Cover, air silencer
42 0320107 Tie strap
43 0313537 Fitting, tee recirculation hose
44 HOSE, Tee to carbuertor, upper, 5" length
45 HOSE, Tee to carburetor, middle 1-3/4" length
46 0319603 Screw, primer terminal
47 0303398 Screw, lower
48 0332682 Timing pointer This part replaces 0330127.
49 HOSE, Air silencer to manifold 4-1/2" long
50 0326031 Tee, carburetor hose
51 0582865 Adj. lever, throttle link
52 0510780 8 ring termianl
53 0305739 "o"ring,valve seat
54 0510818 Terminal, ring
55 0330121 Screw, cover to housing
56 0511807 Cover gasket ay
57 0333448 Gasket This part replaces 0511808.
58 0511809 Plunger
59 0333448 Gasket This part replaces 0511810.
60 0332365 Filter, valve housing This part replaces 0511811.
61 0511812 Lever valve
62 0511986 Spring valve
63 0511987 Spring, plunger
64 0333447 Valve, plunger This part replaces 0511988.
65 0303701 Lock washer, adjustment screw
