EVINRUDE-JOHNSON 332939 Rod, Reverse Lock Release

Write a Review
$11.99
SKU:
332939-OMC
Schematic Object Key:
77

EVINRUDE-JOHNSON 332939 Rod, Reverse Lock Release

$11.99

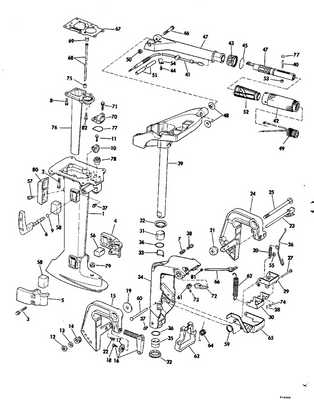

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 332939 Rod, Reverse Lock Release

Schematic Object Key : 77

Replacement: This part (332939) replaces 0325709.

Product Description: Rod, Reverse Lock Release

Category: EVINRUDE / 1982 / 70 / E70ELCNB 1982 / EXHAUST HOUSING - 20" TRANSOM

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0397731 Swivel bracket This part replaces 0389334.
2 0313607 Lube fitting
3 0320962 Bushing
4 0320937 Seal
5 0321035 Brushing, swivel bracket
6 0320866 Rondelle de butée, arbre d'articulation
7 0392517 Steering arm assembly
8 0327696 Keeper, pivot shaft
10 0321673 Cover, mount bracket lower
11 0329894 Screw This part replaces 0302510.
12 0321507 Mount bracket
13 0320746 Ecrou, support de montage
14 0314024 Seal housing, outer
15 0321493 Exhaust housing, outer
16 0309280 Screw, exhaust housing
17 0120255 Lockwasher
18 0387796 Rubber mount, lower
19 0318612 Screw, bracket to cover
20 0307708 Lock washer, mounting
21 0340777 Cover, housing, rear This part replaces 0206006.
22 0323715 Exhaust housing
23 0328694 Screw, bracket This part replaces 0321527.
24 0319281 Washer tube
25 0331016 Gasket This part replaces 0321796.
26 0322778 Adapter, exhaust housing
27 0329894 Screw This part replaces 0302510.
28 0302290 Washer
29 0324334 Screw
30 0313763 Gasket, adapter
31 0436394 Rubber mount assembly, upper This part replaces 0387786.
32 0551094 Bolt, manifold to head
33 0321653 Screw, upper mount
34 0313580 Washer
35 0323599 Locknut This part replaces 0316828.
36 0395844 Steering bracket, assy., stbd. This part replaces 0392204.
37 0910992 Rondelle, tube de relevage This part replaces 0327699.
38 0335553 Tilt tube This part replaces 0321052.
40 0320792 Pin
41 0322481 Bushing, tilt cylinder
42 0322844 Cover, exhaust housing, front
43 0321054 Spring clip
44 0363254 Nut, stern bracket screw This part replaces 0321861.
45 0307238 Rondelle
46 0320248 Rondelle, écrou
47 0318273 Bolt hex retainer 1 2 in.
48 0319886 Screw
49 0318572 Bolt thread protective cap 1 2 in.
50 0318573 3.5" bolt
50 0363012 Screw, bracket mounting This part replaces 0313327.
50 0363011 Screw, stern bracket mounting, 1 2 x 5.75 in. 146 mm This part replaces 0321577.
51 0318272 Nut backing plate square 1 2 in.
52 0436541 Rod assy, thrust This part replaces 0387278.
53 0321053 Sorubg,thrust rod
54 0396309 Stern bracket assembly, port This part replaces 0392203.
55 0390442 Locating lever, rod
56 0321935 Retaining plate
57 0315077 Locknut, 3 8 24 ss
58 0329109 Shoulder screw This part replaces 0321389.
59 0315511 Nut, bracket to mount support
60 0306423 Bolt
61 0331021 Megaphone This part replaces 0324833.
62 0323144 Spacer
63 0330266 Washer, trail lock lever This part replaces 0552993.
64 0329110 Screw, clamp to cover This part replaces 0319358.
65 0552968 Screw, plate 3 8 16 x 1.5
65 0318612 Screw, bracket to cover
66 0329012 Knob tilt reverse lock handle This part replaces 0318157.
67 0318238 Screw
68 0123077 Screw, bracket, remote model
69 0204757 Bow washer
70 0302858 Cotter pin, shoulder bolt
71 0303887 Washeer, pin to swivel bracket
72 0319108 Screw belcrank
73 0321246 Bushing, shock lower
74 0329519 Spacer stern bracket This part replaces 0326689.
75 0321591 Pin, link to locking
76 0321592 Pin, link to swivel bracket
77 0332939 Rod, reverse lock release This part replaces 0325709.
78 0321695 Pin, cylinder, lower
79 0321748 Lin, reverse lock, starboard
80 0325526 Belcrank, releasing rod
81 0321750 Locking lever, reverse lock
82 0334345 Retainer, lock spring This part replaces 0323593.
83 0334345 Retainer, lock spring This part replaces 0323594.
84 0335814 Retainer, trail lock This part replaces 0325525.
85 0321837 Link, reverse lock, port
86 0553766 Bow washer
87 0321868 Spacer
89 0321920 Spring, reverse lock
90 0322085 Spring, trail lock return
91 0325528 Spring, trail lock
92 0909676 Screw
93 0387791 Shock absorber
94 0390097 Lever and ahsft
95 0319043 Seal, water tube upper
96 0584119 Lead assembly, ground This part replaces 0388080.
97 0510193 . screw, clamp cover
98 0322376 Nut, wiper, tilt tube
99 0306470 Lock washer
100 0319682 Screw, extension
102 0582153 Sending unit
103 0320689 Ecrou
104 0511527 Retainer
105 0511528 Spring
107 0323142 Spring, trail lock return
108 0321499 Thrust pad, trim rod
109 0321243 Bushing, cable
