EVINRUDE-JOHNSON 336936 O-Ring, Bearing Housing

Write a Review
$12.99
SKU:
336936
Schematic Object Key:
31

EVINRUDE-JOHNSON 336936 O-Ring, Bearing Housing

$12.99

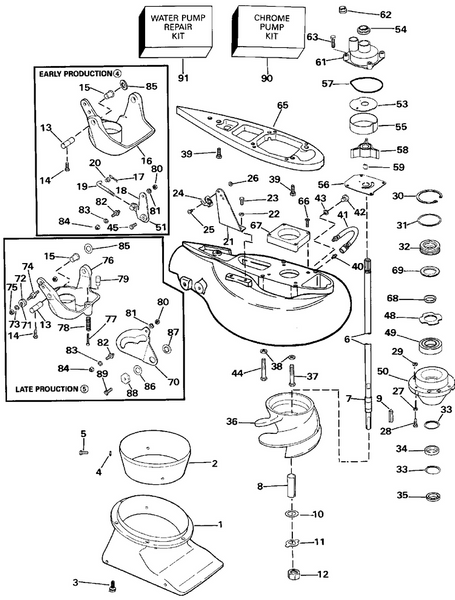

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 336936 O-Ring, Bearing Housing

Schematic Object Key : 31

Product Description: O-Ring, Bearing Housing

Category: JOHNSON / 1991 / 50 / J50TLEIA 1991 / JET DRIVE KIT

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0434709 Intake assy.
2 0336940 Liner
3 0336870 Bolt, intake to housing
4 0336869 Washer, bolt, bearing housing
5 0336870 Bolt, intake to housing
6 0434706 Driveshaft sleeve ay,
7 0336882 Thrust ring
8 0336941 Sleeve
9 0336927 Key
10 0336945 Shim
11 0336925 Keeper, nut
12 0336943 Nut, driveshaft
13 0336926 Pin, gate
14 0336871 Bolt, bearing housing
15 0336916 Bushing, pin
16 0336924 Gate
17 0336862 Cotter pin, rod
18 0434707 Shift arm ay.
19 0336885 Rod
20 0336875 Bushing, rod
21 0336881 Bracket cable
22 0336868 Washer, nut
23 0342356 Bolt, liner to intake This part replaces 0336935.
24 0305736 Lock, throttle This part replaces 0336873.
25 0336874 Screw, clip to bracket
26 0336867 Nut, screw, bracket
27 0336869 Washer, bolt, bearing housing
28 0336930 Bolt
29 0336877 O ring, bearing housing
30 0336915 Retaining ring
31 0336936 O ring, bearing housing
32 0336939 Ring, seal
33 0336876 Spirolox
34 0336878 Seal, inner
35 0336879 Seal, outer
36 0434704 Impeller assy,.
37 0336932 Screw, exh. hsg
38 0336929 Washer, screw, exh. hsg.
39 0336931 Screw, exh. hsg
40 0336872 Grease fitting
41 0434698 Hose assy., lube
42 0336861 Screw, flush
43 0336863 Washer, screw
44 0336933 Screw, exh. hsg., long
45 0336871 Bolt, bearing housing
48 0336922 Thrust washer, bearing
49 0336937 Bearing
50 0336918 Bearing carrier
51 0336883 Pivot, shift arm
53 0321940 Plate
53 0315145 Plate, chrome
54 0341732 Grommet, housing This part replaces 0315748.
55 0324980 Linder, impeller housing
55 0319587 Cup,impeller hsg
56 0341038 Plate, impeller housing This part replaces 0336251.
56 0341187 Plate This part replaces 0319588.
57 0324981 Seal, impeller housing
58 0432941 Impeller
59 0334897 Cam, impeller to driveshaft
61 0333783 Housing, impeller
62 0333758 Grommet, water tube
63 0331979 Screw
65 0336919 Adapter plate
66 0336934 Bolt, pump adapter
67 0336920 Adapter, water pump
68 0336938 Collar
69 0336923 Spacer
70 0336860 Cam, shift
71 0437820 Roller bushing This part replaces 0337005.
72 0437820 Roller bushing This part replaces 0337004.
73 0336868 Washer, nut
74 0337006 Nut, shaft, gate
75 0121731 Nut, hook, front This part replaces 0336866.
76 0336859 Gate, reverse
77 0336998 Screw, bumper
78 0337008 Spring, bumper, gate
79 0337007 Bumper, gate
80 0337000 Nut, pivot, cam
81 0336869 Washer, bolt, bearing housing
82 0337009 Pivot, cable to cam
83 0336868 Washer, nut
84 0121731 Nut, hook, front This part replaces 0336866.
85 0337002 Washer
86 0337003 Shim, cam
87 0337001 Bushing, cam
88 0336999 Eccentric, cam
89 0336871 Bolt, bearing housing
90 0389145 Chrome cup plate kit
91 0438592 Water pump repair kit This part replaces 0433548.
91 0438592 Water pump repair kit This part replaces 0433549.
