EVINRUDE-JOHNSON 337591 Cam, Tilt Limit Switch

Write a Review
$11.49
SKU:
337591
Schematic Object Key:
51

EVINRUDE-JOHNSON 337591 Cam, Tilt Limit Switch

$11.49

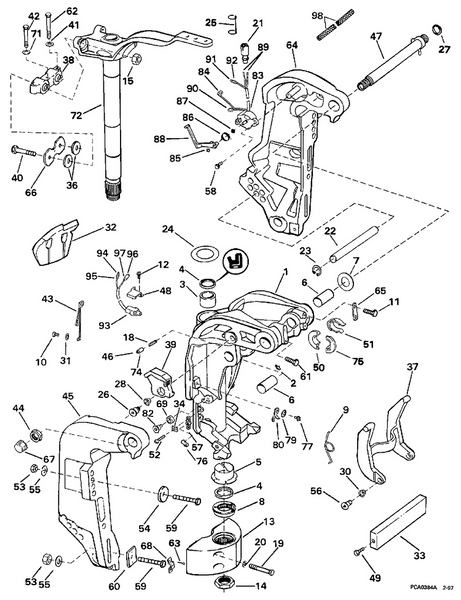

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 337591 Cam, Tilt Limit Switch

Schematic Object Key : 51

Product Description: Cam, Tilt Limit Switch

Category: JOHNSON / 1997 / 50 / J50DTLEUR 1997 / MIDSECTION - POWER TRIM & TILT

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0434691 Support pivotant This part replaces 0435005.
2 0313607 Lube fitting
3 0320962 Bushing
4 0335686 Joint
5 0336819 Bushing, lower pivot shaft
6 0337579 Bushing, lower pivot shaft
7 0910992 Rondelle, tube de relevage
8 0327696 Keeper, pivot shaft
9 0336210 Spring, trail lock spring
10 0330057 Screw plug
11 0328724 Screw
12 0328724 Screw
13 0340773 Mount bracket
14 0320746 Ecrou, support de montage
15 0315511 Nut, bracket to mount support
18 0336230 Ressort, dispositif de blocage, verrouillage de relevage
19 0318612 Screw, bracket to cover
20 0307708 Lock washer, mounting
21 0512746 Connecteur, 2 broches
22 0336525 Rod, trim limiter
23 0336529 Anneau de retenue, tige de correction d'assiette
24 0320866 Rondelle de butée, arbre d'articulation
25 0512741 Retainer, connector, 1 pin
26 0335481 Screw, tilt lever to bracket
27 0337586 Ecrou racleur
28 0335486 Bague, levier de relevage
30 0335701 Bushing, trail lock lever
31 0329241 Washer This part replaces 0305981.
32 0336309 Seal, steering arm
33 5010190 Anode kit This part replaces 0433580.
34 0336853 Attache, vis, dispositif de retenue
36 0313580 Washer
37 0335470 Arm, trail lock
38 0436394 Rubber mount assembly, upper
39 0335485 Lever, tilt lock
40 0321653 Screw, upper mount
41 0306470 Lock washer
42 0306836 Scr,altnr brkt
43 0584305 Lead assy., ground
44 0335554 Locknut, tilt tube
45 0351922 Stern bracket, starboard This part replaces 0335489.
46 0336209 Ball, detent, tilt lock
47 0435008 Tilt tube assy.
48 0336171 Bracket, tilt limit switch
49 0324816 Screw, anode
50 0337592 Collar, cam, tilt limit switch
51 0337591 Cam, tilt limit switch
52 0328724 Screw
53 0363254 Nut, stern bracket screw This part replaces 0313623.
54 0307238 Rondelle
55 0320248 Rondelle, écrou
56 0335487 Screw, trail lock lever
57 0336467 Retainer, support
58 0328744 Screw, clamp 1 4 20 x .75
59 0318573 3.5" bolt This part replaces 0327053.
59 0363012 Screw, bracket mounting This part replaces 0336676.
59 0331578 Engine mount bolt 5 x 1 2 in.
59 0363011 Screw, stern bracket mounting, 1 2 x 5.75 in. 146 mm This part replaces 0321577.
60 0318272 Nut backing plate square 1 2 in.
61 0328724 Screw
62 0306423 Bolt
63 0319886 Screw
64 0351921 Stern bracket, port This part replaces 0335416.
65 0513787 Dispositif de retenue, interrupteur limiteur de relevage
66 0321935 Retaining plate
67 0317894 Cap, tilt tube
68 0318273 Bolt hex retainer 1 2 in.
69 0335949 Rouleau de butée
71 0320397 Washer in tiller kit .390 i.d. x .750 o.d. x 0.120 in
72 0434166 Steering arm assy.
74 0334241 Guide
75 0337593 Collar, cam, tilt limit switch
76 0335814 Retainer, trail lock
77 0342191 Screw, cam This part replaces 0336753.
79 0328702 Washer
80 0336172 Dispositif de retenue, bras transport sur remorque
82 0335487 Screw, trail lock lever
83 0433462 Sending unit assy
84 0513871 Borne, anneau
85 0511527 Retainer
86 0511528 Spring
87 0320689 Ecrou
88 0342386 Arm This part replaces 0335708.
89 0511469 Terminal, pin
90 3854047 Borne, anneau This part replaces 0913927.
91 0512947 Terminal, bullet
92 0513185 Sleeve
93 0585138 Switch assy., tilt limit
94 0512947 Terminal, bullet
95 0513185 Sleeve
96 0512876 Terminal, socket
97 0513186 Sheath, cell
98 0513817 Braided sleeve
