EVINRUDE-JOHNSON 356424 Deflector, Water

Write a Review
$15.99
SKU:
356424
Schematic Object Key:
14

EVINRUDE-JOHNSON 356424 Deflector, Water

$15.99

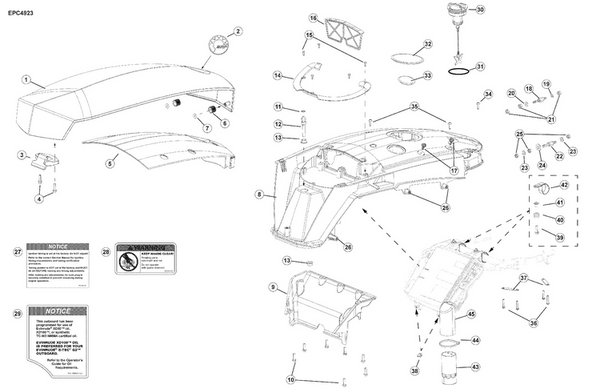

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 356424 Deflector, Water

Schematic Object Key : 14

Product Description: Deflector, Water

Category: EVINRUDE / AG Models / 200 - (G2, 74° V6, 3.4 L) / A200XHAGG - (G2 74° V6, 3.4 L) / 01-2.1_ENGINE COVERS (TOP)

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0286141 Top cap, frame deep black This part replaces 0285885.
1 0286142 Top cap, frame bright white This part replaces 0285886.
1 0286143 Top cap, frame radical red This part replaces 0285887.
1 0286144 Top cap, frame orbital blue This part replaces 0285888.
1 0286145 Top cap, frame hyper silver This part replaces 0285889.
1 0359958 Top cap, frame ice blue
1 0359958 Top cap, frame unpainted, does not include decals, or hardware
2 0217004 Lens, logo 68 mm This part replaces 0352505.
3 0355444 Latch assembly
4 0356845 Screw m6 x 25
5 0357302 Blanket, sound
6 0358021 Bumper
7 0356852 Nut, speed push on
8 5010718 Center frame assembly This part replaces 5008577.
9 0356025 Baffle
10 0323228 Screw baffle to center frame
11 0318372 "o" ring, shift rod
12 0355443 Pin, latch top cap to frame
13 0358565 Nut, flanged m10
14 0356424 Deflector, water
15 0343245 Screw water deflector to center frame
16 0357232 Air inlet screen
17 0351731 Bumper top cap to center frame
18 0355568 Stud, 1 4 in. 6.35 mm negative battery cable
19 0356939 Washer, m6 negative battery stud to battery cable
20 0328703 Washer, screw hook negative battery stud to center frame
21 0313022 Locknut, double ended bolt negative battery stud to battery cable
22 0355569 Stud, 5 16 in. 8 mm positive battery cable
23 0356940 Washer, m8 positive battery stud to battery cable
24 0301250 Rondelle positive battery stud to center frame
25 0356494 Nut, 5 16 in. 8 mm positive battery stud to battery cable
26 0358257 Insert, m5 x 0.8
27 0358045 Decal, timing notice
28 0358046 Decal, warning
29 0358210 Decal, oil type
30 5009735 Oil cap assembly also see oil tank pump
31 0356504 O ring
32 0356050 Plug, 4 in. included with owner's kit
33 0356468 Plug, 2 in. included with owner's kit
34 0362483 Screw center frame to motor frame front This part replaces 0358259.
35 0353420 Screw center frame to spacers mounts
36 0334884 Screw
37 5009547 Retainer, engine harness
38 0356844 Screw, emm mounting
39 0356845 Screw m6 x 25 m6x25
40 0333040 Isolator emm mounting
41 0338558 Entretoise, à collerette
42 0344044 Clamp, cable to c c
43 3011409 Capacitor
44 0907833 Attache câble, câbles vers commande de sens de marche capacitor to baffle
45 0514889 Cover, capacitor
