EVINRUDE-JOHNSON 383382 Lead Assy., Coil To Res.

Write a Review
$1.25
SKU:
383382
Schematic Object Key:
94

EVINRUDE-JOHNSON 383382 Lead Assy., Coil To Res.

$1.25

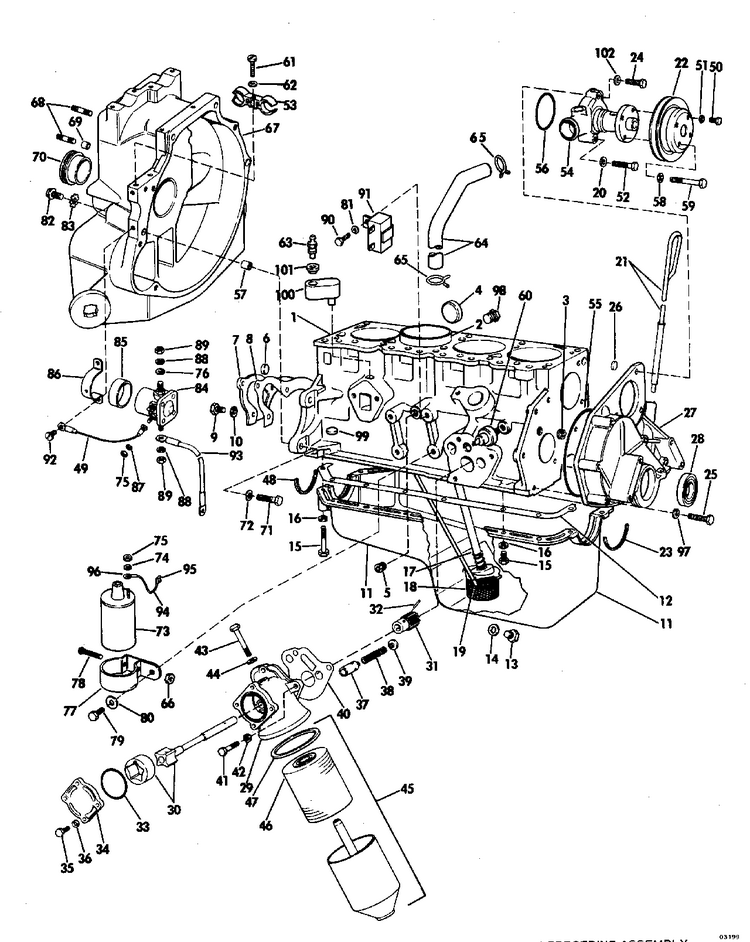

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 383382 Lead Assy., Coil To Res.

Schematic Object Key : 94

Product Description: Lead Assy., Coil To Res.

Category: STERN DRIVE / 1970 / 155 / HUFM-69M 1970 / CRANKCASE GROUP 90 HP

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 2737E-6010-C Cylinder block assembly
2 2737E-6055-C Cylinder liner standard
2 2737E-6055-D Cylinder liner .020" o.s.
3 87837-ES2 Plug, oil gallery, hex socket
4 0311376 Core plug, side
5 353052-ES Plug, oil gallery, slotted
6 357966-S Expansion plug shaft
7 2730E-6K30-A Retainer, oil seal, rear
8 2730E-6344-A Gasket, retainer
9 304664-S2 Bolt, retainer to block
10 34806-S7/8 Lockwasher
11 2731E-6675-B Oil pan
12 2730E-6781-B Gasket set, oil pan
13 2724E-6730-A Plug, oil drain
14 2724E-6734-A Gasket, drain plug
15 20308-S7/8 Bolt,distributor mounting
16 111041-ES8 Washer, pan screw
17 2730E-6615-A Inlet tub assy.
18 2730E-6623-A Screen, oil pick up
19 2730E-6K65-A Tube, oil return
20 34806-S8 Washer, water pump
21 2737E-6752-A Gauge, oil level
22 105E-8509-B Pulley, water pump
23 E29-CE-1 Packing, cover to pan
24 20424-S8 Bolt, water pump
25 45504-S8 Bolt, cover to block
26 0313889 Plub,water passage
27 0384446 Cover seal, timing chain
28 105E-6362-C Seal, cover
29 105E-6600-A Oil pump assy
30 105E-6608-A Rotor shaft assemblly
31 105E-6551 Gear, drive
32 72432-S Pin, gear to shaft
33 87066-ES O ring cover to body
34 105E-6616-B Cover, oil pump
35 20344-S7/8 Screw, cover
36 34825-S7 Lockwasher
37 105E-6663-D Plunger, relief valve
38 105E-6654 Spring, plunger
39 105E-6653-B Retainer, spring
40 105E-6659 Gasket, pump
41 20386-ES2 Bolt, pump to block
42 34806-S7/8 Lockwasher
43 115827-ES8 Bolt, filter to pump
44 116087-ES Washer, pump bolt
45 113E-6714-A Filter assembly
46 113E-6731-A Filter element
47 EIADKN-18688- Gasket, filter
48 2730E-6723-A Seal, oil pan, rear
49 0381765 Lead assembly, ground
50 0306424 Bolt, pump mounting
51 0306453 Lockwasher, fuel pump
52 20504-S8 Bolt, water pump
53 0314823 Retainer, cable con
54 0384450 Water pump assembly
55 0313892 Seal, c case front cover from seal part 309044 cut to 16 1 4"
56 0338518 O ring, bearing housing This part replaces 0313893.
57 0313683 Dowel pin, eng. to adapter
58 0306396 Lock washer, control to boat
59 0306419 Screw
60 0379948 Screw, retainer to adapter
61 0303699 Screw
62 0306407 Locckwasher,cover latch
63 0383656 Breather condense assembly
64 0315067 Hose, valve to manifold
65 0308913 Clamp, hose, valve to manifold
66 0308335 Clamp, coil
67 0383161 Adapter housing stud assembly
68 0314616 Stud
69 0309614 Dowel
70 0314127 Pilot, adapter
71 0312997 Screw, adapter to engine
72 0306405 Washer, c c stud nut
73 3852217 Coil assy. ignition This part replaces 0383444.
74 0550757 L'washer,coil term
75 0306556 Nut, leaf screw
76 0307143 Washer, solenoid
77 3852218 Bracket, oil cooler This part replaces 0383448.
78 0306519 Scr,coil clamp
79 0306450 Screw
80 0306283 Washer, starter spindle
81 0309192 Rondelle This part replaces 0120196.
82 0312861 Screw, cable ground
83 0307001 L'washer, stud c'case
84 0586180 Ensemble solénoïde This part replaces 0383622.
85 0311217 Sleeve
86 0330112 Clamp, solenoid This part replaces 0311218.
87 0120052 . . lockwasher, solenoid screw
88 0306325 . . lockwasher, solenoid screw
89 0303783 Nut
90 0306555 Screw
91 0981654 Ballast resistor This part replaces 0383433.
92 0303311 Scr,clamp,eng cable
93 0383381 Lead assembly, starter to solenoid
94 0383382 Lead assy., coil to res.
95 0309437 Clip, drapeau
96 0204036 10 ring termial,12v
97 34805-S7/8 Lockwasher, cover bolt
98 87786-S Plug, block drain
99 353096-S Plug, expansion
100 2733E-6A785-A Separator assy.
101 378766-ES Grommet
102 34805-S8 Washer, water pump
