EVINRUDE-JOHNSON 3852302 Nut, Upper Driveshaft, 0.008 In.

Write a Review
$14.99
SKU:
3852302
Schematic Object Key:
44

EVINRUDE-JOHNSON 3852302 Nut, Upper Driveshaft, 0.008 In.

$14.99

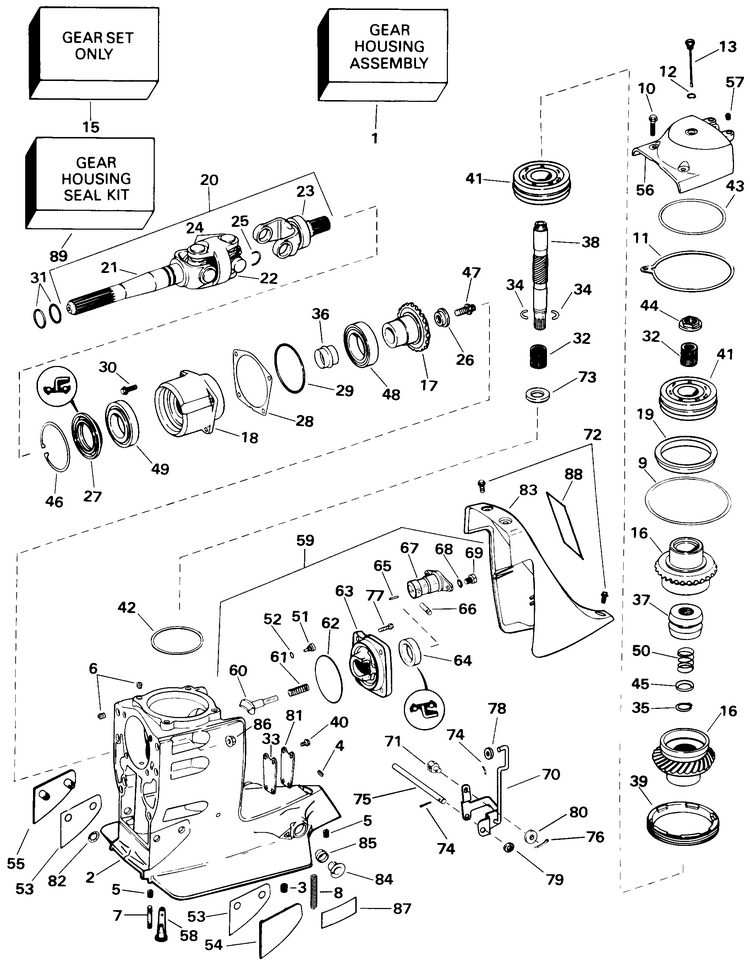

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 3852302 Nut, Upper Driveshaft, 0.008 In.

Schematic Object Key : 44

Product Description: Nut, Upper Driveshaft, 0.008 In.

Category: STERN DRIVE / 1998 / 7.4 / 74FHPBYC 1998 / UPPER GEAR HOUSING

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 3857007 Gear housing assy., 22 23
2 3855775 Gear housing inserts
3 3852541 Insert, 7 16 14
4 0910901 Insert This part replaces 3852513.
5 0910935 Insert, 3 8 16 This part replaces 3852515.
6 0910901 Insert This part replaces 3852513.
7 0941814 Stud, gearcase
8 3853387 Gasket, cylinder head
9 3852363 Shim, upper bearing, 0.002 in.
9 3852364 Shim, upper bearing, 0.003 in.
9 3852365 Shim, upper bearing, 0.004 in.
9 3852366 Shim, upper bearing, 0.005 in.
9 3852367 Shim, upper bearing, 0.010 in.
10 0341013 Screw, cover This part replaces 3852454.
11 3852317 Gasket, top cover
12 0303067 "o" ring, driveshaft This part replaces 3852045.
13 3854847 Rod, oil indicator
15 3851203 Gear set, 22 23
16 DRIVE GEAR
17 PINION GEAR
18 3852267 Bearing carrier, pinion
19 3852269 Ring, upper bearing support
20 3852384 U joint assembly
21 0912212 Shaft, yoke This part replaces 3850815.
22 0912213 Double center This part replaces 3850813.
23 3850814 Stub, yoke
24 3850812 U joint
25 3850757 Retainer, u joint
26 3852310 Retainer, pinion gear
27 3852272 Seal, u joint to bearing carrier
28 3852355 Shim, bearing carrier, 0.003 in.
28 3852356 Shim, bearing carrier, 0.004 in.
28 3852357 Shim, bearing carrier, 0.005 in.
28 3852358 Shim, bearing carrier, 0.010 in.
29 3852308 O ring, bearing carrier
30 0341013 Screw, cover This part replaces 3852454.
31 3852565 O ring, u joint
32 3852390 Bearing, drive gear
33 3852279 Gasket, water passage
34 3852295 C clip, upper driveshaft
35 3852299 C clip, spring
36 3852304 Sleeve, pretension
37 3855783 Clutch cone
38 3852292 Driveshaft, upper
39 3852262 Ring, bearing retainer
40 3852373 Screw, water passage
41 3857176 Bearing, drive gear
42 3852368 Shim, lower bearing, 0.002 in.
42 3852369 Shim, lower bearing, 0.003 in.
42 3852370 Shim, lower bearing, 0.004 in.
42 3852371 Shim, lower bearing, 0.005 in.
42 3852372 Shim, lower bearing, 0.010 in.
43 3852368 Shim, lower bearing, 0.002 in.
43 3852369 Shim, lower bearing, 0.003 in.
43 3852370 Shim, lower bearing, 0.004 in.
43 3852371 Shim, lower bearing, 0.005 in.
43 3852372 Shim, lower bearing, 0.010 in.
44 3852301 Nut, upper driveshaft, 0.000 in.
44 3852302 Nut, upper driveshaft, 0.008 in.
44 3852303 Nut, upper driveshaft, 0.016 in.
44 3852375 Nut, upper driveshaft, 0.024 in.
45 3852298 Spacer, spring
46 3852307 C clip, seal
47 3852309 Screw, pinion gear retainer
48 3850852 Bearing, pinion to inner carrier
49 3850853 Bearing, pinion to outer carrier
50 3852296 Spring, clutch cone to shaft
51 3854539 Screw, gearcase plug
52 0333572 O ring This part replaces 3855081.
53 3852563 Shim, thrust plate, 0.015 in.
54 3852561 Plate, thrust, port
55 3852562 Plate, thrust, starboard
56 3854401 Cover, upper gearcase, top
57 0910901 Insert This part replaces 3852513.
58 3854021 Screen, oil sump
59 3855787 Shift assembly
60 3856502 Shoe, shift
61 0814184 Spring, shift shoe
62 0925093 O ring, shift actuator
63 3855785 Housing, shift actuator
64 0853858 Seal, shift actuator
65 0973593 Pin, tension
66 0942871 Pin, eccentric piston
67 3856008 Piston, eccentric
68 0897871 Shim, shift shoe stop
69 0897711 Screw, shift shoe stop
70 3857460 Rod bracket, shift
71 3852329 Cube, cable to bellcrank
72 3852568 Screw, cover
73 3852294 Ring, spacer
74 0305650 Cotter pin This part replaces 3852052.
75 3852277 Pin, bellcrank
76 0302858 Cotter pin, shoulder bolt This part replaces 3854480.
77 3856742 Screw, shift housing
78 0329241 Washer This part replaces 3852193.
79 0309192 Rondelle This part replaces 3852083.
80 0328703 Washer, screw hook This part replaces 3852184.
81 3852280 Plate, water passage
82 0910953 Retainer ring, thrust plate This part replaces 3852516.
83 3852418 Cover, gear housing, rear
84 3853423 Bushing, pivot pin
85 3853424 Grommet, pivot pin
86 3853329 Locknut, transom plate
87 3855644 Decal, sx cobra
87 3855646 Decal, dp duoprop
88 3855356 Decal, sx cobra
88 3855647 Decal, dp duoprop
89 3850594 Gear housing seal kit
