EVINRUDE-JOHNSON 3853653 Tee, Water To Thermostat

Write a Review
$16.00
SKU:
3853653-OMC
Schematic Object Key:
5

EVINRUDE-JOHNSON 3853653 Tee, Water To Thermostat

$16.00

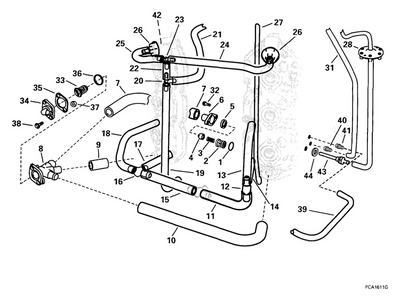

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 3853653 Tee, Water To Thermostat

Schematic Object Key : 5

Product Description: Tee, Water To Thermostat

Category: STERN DRIVE / 1994 / 3 / 302CGPMDA 1994 / COOLING & OILING

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0328724 Screw This part replaces 3852053.
2 0313416 Gasket, thermostat This part replaces 3852120.
3 0314809 Gasket This part replaces 3852127.
4 3854254 Housing plug assy
5 3853653 Tee, water to thermostat
6 3853673 Eccentric, fuel pump, outer
7 3853397 Screw, bracket to engine
8 3855472 Screw, pipe to gimbal This part replaces 3852898.
9 3850495 Gasket, elbow to manifold
10 3852604 Clamp, exhaust
11 3852029 Sender, water temperature
12 3853799 Thermostat assy
13 3854433 Housing, upper thermostat
14 3853672 Plug, thermostat housing
15 0912627 Clamp This part replaces 3852602.
16 0311076 Clamp, oil pump to bracket This part replaces 3852098.
17 3852289 Hose, water pump
18 3853255 Hose, thermostat housing
19 0330151 Cable clamp, filter This part replaces 3852199.
20 0310928 Clamp, steering bracket This part replaces 3852092.
21 3852336 Belt, alternator
21 3853536 Belt, alternator
22 0122845 Washer, eyelet to o ring This part replaces 3852007.
23 3854045 Manifold
24 0315712 Core plug This part replaces 3852134.
25 3852538 Elbow, exhaust manifold
26 3850219 Bracket, throttle control
27 0313022 Locknut, double ended bolt This part replaces 3852118.
28 3852019 Trunnion, s.a.e. cable
29 3854494 Petcock, water drain
30 3853373 Stud, carb. to adaptor
31 3852334 Hose, tee to thermostat
32 3852741 Hose, exhaust
33 3852694 Retainer, oil drain
34 3854015 Oil pan
35 3852331 Hose, gimbal to water pump
35 3852306 Hose, cooler to water pump
36 3853419 Screw, clamp, front
37 3852595 Bolt, fuel rail
38 3854215 Tube, oil drain
39 0311069 Gasket, housing This part replaces 3852096.
40 3853256 Gasket, manifold to head
41 3853780 Clamp, hose
42 3853783 Cap bead chain assy
43 3855112 Fitting, oil drain This part replaces 3853664.
44 3852426 Seal, cap oil drain tube
45 0320107 Tie strap This part replaces 3852158.
46 0306501 Bolt, water pump This part replaces 3852063.
47 3853167 Bolt, water pump
48 3850799 Elbow, exhaust
49 3854017 Water pump
50 3853342 Gasket, water pump
51 3853430 Screw, manifold, 5 1 4 in.
52 3853431 Screw, manifold, 6 1 4 in.
53 3853390 Screw, pulley to pump
54 3853977 Exhaust pipe
55 3853173 Bolt, camshaft sprocket
56 3853133 Support assy
57 3854014 Pipe screen assy
58 3853219 Screw, suction pipe bracket
59 3853843 Oil pump
60 3852658 Gasket, pump cover
61 3853266 Bolt, distributor
62 3853566 Bushing, pin
63 0913663 Pin exhaust flap This part replaces 3852753.
64 3852401 Pulley, water pump
65 3850209 Anchor, throttle cable
66 3853864 Exhaust seal assy
67 3851981 Gasket, fitting to oil pan This part replaces 3853469.
68 3853343 Gasket, oil pan
69 3853674 O ring, oil drain
70 3853168 Nut, camshaft sprocket stud
71 3853378 Stud, exhaust manifold
72 3853404 Nut, exhaust manifold
73 0306325 . . lockwasher, solenoid screw This part replaces 3852055.
74 3853171 Screw, oil pan, front
75 0912627 Clamp This part replaces 3852602.
76 3853628 Restrictor, high rise
77 3852333 Hose, water pump to tee
78 3853794 Clamp, anti siphon hose
79 3852335 Hose, tee to high rise
80 3853373 Stud, carb. to adaptor
81 0316355 But, carburetor mounting This part replaces 3852142.
82 0202893 "o" ring, drive shaft This part replaces 3852033.
83 0303459 Ecrew,exhaust cover,1 1 2"long This part replaces 3852048.
84 3852399 Water pump assembly
85 3852344 Belt, water pump
86 3853397 Screw, bracket to engine
87 3850422 Clamp, water hose inlet
88 3850481 Bracket, fuel filter water pump
89 0306283 Washer, starter spindle This part replaces 3852054.
90 3853326 Screw, bracket to engine
