EVINRUDE-JOHNSON 3854848 Hose, Cooler To Cooler

Write a Review
$21.99
SKU:
3854848
Schematic Object Key:
54

EVINRUDE-JOHNSON 3854848 Hose, Cooler To Cooler

$21.99

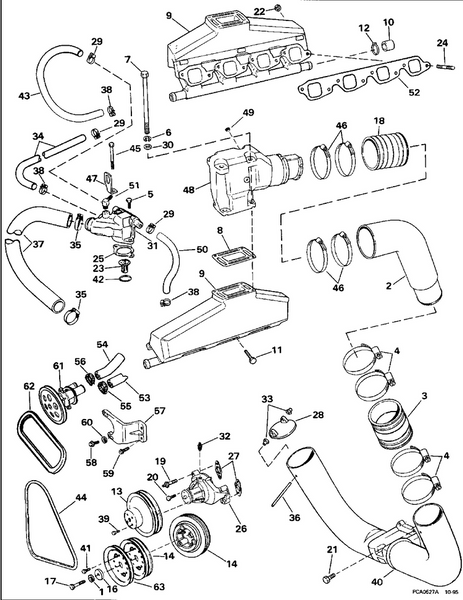

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 3854848 Hose, Cooler To Cooler

Schematic Object Key : 54

Product Description: Hose, Cooler To Cooler

Category: STERN DRIVE / 1996 / 7.4 / 74FFPNCA 1996 / EXHAUST & COOLING

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 3853353 Lock washer, pulley
2 3853237 Exhaust pipe, upper
3 3852742 Hose, exhaust pipe
4 3852604 Clamp, exhaust
5 3853401 Screw, housing to manifold
6 0120177 L'washer, alternator to brkt This part replaces 3852002.
7 3852830 Hub,water pump pulley
7 3853266 Bolt, distributor
7 3853266 Bolt, distributor
8 3850496 Gasket, elbow
9 3852362 Exhaust manifold
10 3852476 Cap, manifold
11 3853326 Screw, bracket to engine
12 0912627 Clamp This part replaces 3852602.
13 0384104 Pulley assembly This part replaces 3852220.
14 3853467 Pulley, crankshaft
14 3851998 Pulley, crankshaft
16 3853354 Washer, torsional damper
17 3853502 Bolt, torsional damper
18 3852696 Hose, high rise to elbow
19 3852507 Stud, bracket to water pump
20 3854653 Bolt, intake manifold, short
21 3855472 Screw, pipe to gimbal This part replaces 3852898.
22 3853404 Nut, exhaust manifold
23 3853983 Thermostat
24 3852140 Stud, manifold to engine
25 0312797 Gasket, therm. hsg. to adapter This part replaces 3852111.
26 3855991 Water pump assy. This part replaces 3854118.
26 3855991 Water pump assy.
27 3853361 Gasket, pump to block
28 3853864 Exhaust seal assy
29 0912627 Clamp This part replaces 3852602.
30 0306405 Washer, c c stud nut This part replaces 3852058.
31 3854383 Thermostat housing
31 3855018 Thermostat housing
32 3852029 Sender, water temperature
33 3855517 Bushing, pin
34 3853243 Hose, cooler to thermostat
34 3853243 Hose, cooler to thermostat This part replaces 3850419.
35 0311076 Clamp, oil pump to bracket This part replaces 3852098.
36 0913663 Pin exhaust flap This part replaces 3852753.
37 3853241 Hose, water pump to thermostat
37 3856007 Hose, water pump to therm.
38 0912627 Clamp This part replaces 3852602.
39 3853390 Screw, pulley to pump
40 3855281 Exhaust pipe
41 3853470 Screw, crankshaft pulley
41 3855720 Screw, crankshaft pulley
42 0307239 "o" ring, extension tube 5 inch longer parts This part replaces 3852071.
43 3852597 Hose, thermostat to manifold
44 3852607 Belt, alternator
44 3854643 Belt, alternator
45 3853430 Screw, manifold, 5 1 4 in. This part replaces 3853391.
46 3853860 Clamp, exhaust hose, upper
47 3852649 Bracket, center lift
48 3857944 Elbow, exhaust This part replaces 3855270.
49 3850740 Plug, 1 4 nptf
50 3852597 Hose, thermostat to manifold
50 3854854 Hose, thermostat to manifold
51 3853598 Elbow, hose to reservoir
52 3852472 Gasket, manifold to engine
53 3854852 Hose, gimbal to water pump
53 3855705 Hose, gimbal to water pump
54 3854859 Hose, water pump to cooler
54 3855706 Hose, water pump to cooler
54 3854848 Hose, cooler to cooler
54 3855684 Hose, water pump to reservoir
55 3850422 Clamp, water hose inlet
56 0912627 Clamp This part replaces 3852602.
57 3850410 Bracket, water pump
57 3855594 Bracket, water pump
58 3853397 Screw, bracket to engine
58 3853155 Screw, manifold to engine
59 3853389 Screw, bracket to engine
59 3855940 Screw, bracket to engine
60 0306283 Washer, starter spindle This part replaces 3852054.
60 0320397 Washer in tiller kit .390 i.d. x .750 o.d. x 0.120 in This part replaces 3852162.
61 3855778 Screw, pcm module
61 3857794 Water pump This part replaces 3851982.
62 3850430 V belt, water pump
62 0978454 Belt, water pump
63 3852505 Pulley, crankshaft
