EVINRUDE-JOHNSON 386326 Gear & Shaft Assy

Write a Review
$127.99
SKU:
386326
Schematic Object Key:
66

EVINRUDE-JOHNSON 386326 Gear & Shaft Assy

$127.99

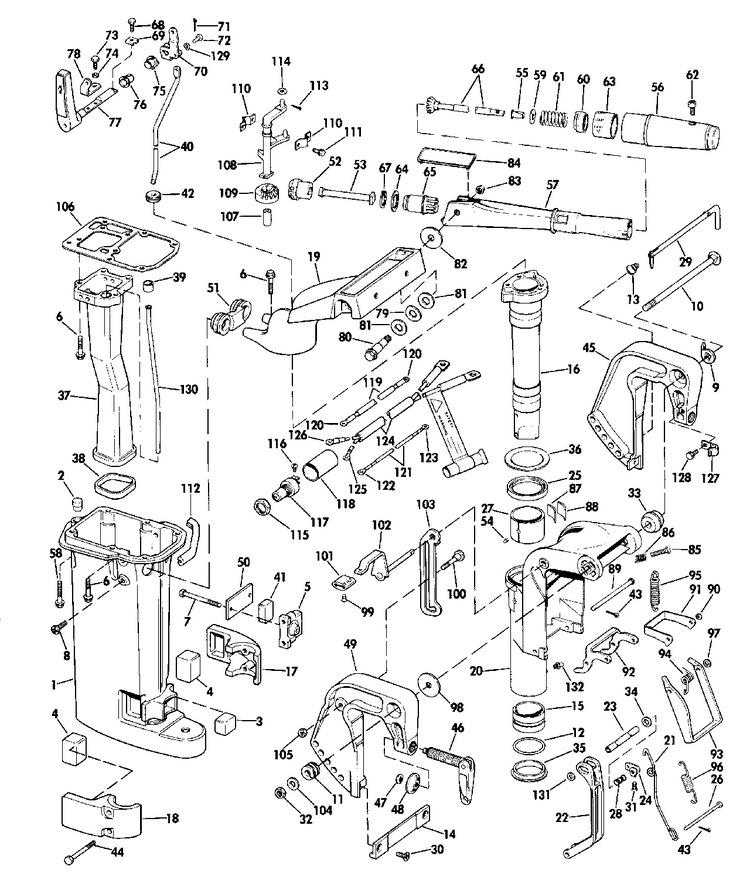

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 386326 Gear & Shaft Assy

Schematic Object Key : 66

Product Description: Gear & Shaft Assy

Category: EVINRUDE / 1974 / 9.9 / 10455G 1974 / EXHAUST HOUSING

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0391578 Exhaust housing assy This part replaces 0386036.
2 0318816 Plug, exhaust hsg
3 0318994 Thrust mount, lower
4 0318997 Lateral mount, lower
5 0386033 Mount assy,.upper
6 0331025 Screw This part replaces 0308744.
7 0313600 Screw, upper mounts to steering bracket
8 0319125 Screw
9 0300364 Link, conical, tilt shaft
10 0319756 Bolt, tilting shaft
11 0302051 Spring tilting bolt
12 0305270 O ring
13 0323471 Spring, thrust rod This part replaces 0307653.
14 0309738 Plate stern bracket
15 0309967 Bushing, pilot shaft, lower
16 0318528 Pilot shaft, swivel brkt.
17 0329021 Mount bracket, lower port This part replaces 0318817.
18 0329020 Mount bracket, lower, stbd This part replaces 0318818.
19 0395463 Steering bracket This part replaces 0318842.
20 0386934 Swivel bracket
21 0320416 Wire, reverse lock release
22 0338874 Carrying handle This part replaces 0318956.
23 0319046 Bushing, tilt lock shaft to sw. brkt.
24 0319049 Bell crank, reverse lock
25 0397736 Block assy., friction This part replaces 0318876.
26 0322945 Pin, link shallow water drive This part replaces 0319053.
27 0397736 Block assy., friction This part replaces 0319087.
28 0319270 Spring, tilt lock bushing
29 0387524 Rod, thrust and retainer This part replaces 0378158.
30 0308684 Screw, cover to housing
31 0319108 Screw belcrank
32 0552938 Locking nut, 3 8 x 24
33 0301983 Conicak washer,stern brkt
34 0308052 Washer
35 0309966 Thrust washer, lower swivel bracket
36 0397736 Block assy., friction This part replaces 0319090.
37 0330439 Exhaust tube, inner This part replaces 0318815.
38 0318996 Seal, inner to outer exh, hsg
39 0324045 Grommer, upper, water tube This part replaces 0318998.
40 0319124 Shift rod, upper
41 0318993 Thrust mount upper
42 0319229 Grommet, exh, hsg, to shift rod
43 0305650 Cotter pin
44 0319042 Screw bracket and clampscrew assy., port
45 0327928 Stern bracket, port This part replaces 0386180.
46 0433675 Clamp scr. hand. assy. This part replaces 0377311.
47 0302420 . retainer
48 0337017 Plate, swivel This part replaces 0307561.
49 0327929 Stern brkt., stbd. This part replaces 0386181.
50 0319084 Link, upper mounts
51 0318989 Seal, upper mounts exh. hsg.
52 0319034 Gear, control shaft, inner
53 0319006 Shaft, link to starter interlock bellcrank
54 0303696 Pin
55 0319089 Bushing
56 0393556 Grip sleeve assy. This part replaces 0279600.
57 0318857 Steering handle
58 0319126 Screw, muffler, upper
59 0303252 Wahser, grip spring
60 0303282 Block
61 0301656 Spring
62 0310303 1
63 0319214 Plate
64 0319316 Rondelle, tube de direction
65 0389720 Gear bushing assy., strg. hdl. This part replaces 0386322.
66 0386326 Gear shaft assy
67 0908141 Retaining ring
68 0308017 Screw, bellcrank to shift lever
69 0319537 Clip
70 0319554 Bellcrank, shift rod
71 0305650 Cotter pin
72 0319541 Pin, bellcrank to shift rod
73 0319563 Scerw, lever to shaft
74 0311407 Lockwasher, lever to shaft
75 0318950 Bushing, shift lever to motor cover, inner
76 0318951 Bushing, shift lever to c'case
77 0386114 Shfit lever shaft assy.
78 0320931 Lever, shaft lever to shift lock link. This part replaces 0319151.
79 0319041 Bow washer, scerw to brkt
80 0318977 Screw, stgr. hdle. to brkt
81 0319278 Rondelle, pivot
82 0304278 Washer This part replaces 0319313.
83 0320266 Locknut, cooler bracket
84 0319339 Cover, steering hdl. gears
85 0323099 Screw, bumper This part replaces 0301989.
86 0551113 Ressort de friction de direction
87 0319128 Spacer, friction block to liner
88 0397736 Block assy., friction This part replaces 0319086.
89 0319055 Pin, link to bracket
90 0310540 .washer, shaft
91 0319050 Lever, reverse locking
92 0322949 Link, reverse lock This part replaces 0319054.
93 0319045 Link, shallow water drive
94 0319268 Spring, shallow water drive
95 0319279 Spring, reverse lock
96 0319269 Spring, reverse lock rod
97 0204293 Washer, hinge pin
98 0304278 Washer
99 0319227 Screw, knob
100 0319047 Pin, tilt lock to stern bracket
102 0386163 Lever shaft assy,.lock
104 0309335 Washer
105 0313022 Locknut, double ended bolt
109 0319035 Gear, vertical control shaft
110 0319067 Bearing clamp, control shaft
112 0319280 Sea.,exhaust housing to lower motor cover
113 0303049 Cotter pin
114 0310540 .washer, shaft
115 0319601 . nut, switch
116 0308120 . screw
118 0511341 Tubing
119 0581289 Lead assy
120 0204039 10 ring terminal
121 0581290 Lead assy
122 0510780 8 ring termianl
123 0204036 10 ring termial,12v
125 0204039 10 ring terminal
126 0204363 Terminal, ring
129 0553766 Bow washer
131 0310540 .washer, shaft
132 0313607 Lube fitting
