EVINRUDE-JOHNSON 432293 Lever Assembly, Trail Lock

Write a Review
$50.99
SKU:
432293
Schematic Object Key:
37

EVINRUDE-JOHNSON 432293 Lever Assembly, Trail Lock

$50.99

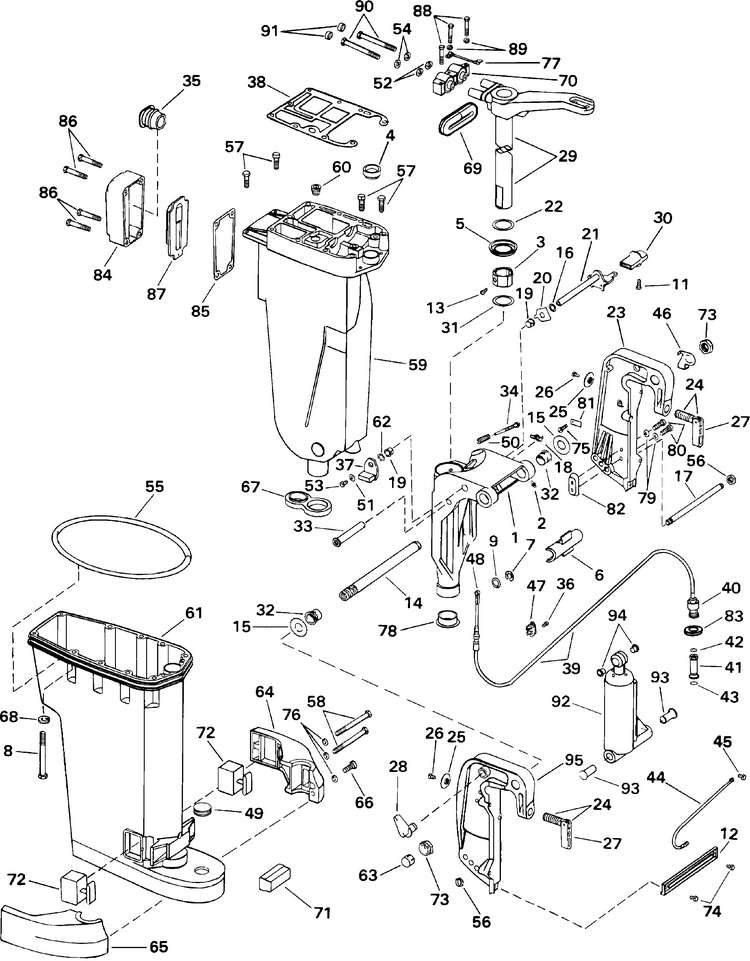

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 432293 Lever Assembly, Trail Lock

Schematic Object Key : 37

Product Description: Lever Assembly, Trail Lock

Category: JOHNSON / 2001 / 30 / J30JRSIE jet drive, rope start, 15 in shaft 2001 / EHAUST HOUSING & STERN & SWIVEL BRACKET

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0332439 Swivel bracket
2 0313607 Lube fitting
3 0329291 Bushing
4 0332407 Seal
5 0332452 Seal, upper
6 0341549 Shield, tilt tube
7 0328260 E ring
8 0133022 Screw
9 0334162 Washer
11 0318238 Screw
12 0357240 Tie bar, stern bracket This part replaces 0334247.
13 0317419 Screw
14 0351896 Tilt tube This part replaces 0321511.
15 0317782 Thrust washer
16 0321863 Washer, latch
17 0332447 Pin,tilt
18 0334259 Clip
19 0315081 Bushing, shoulder screw
20 0333765 Spring
21 0398875 Lever shaft
22 0320866 Rondelle de butée, arbre d'articulation
23 0333621 Stern bracket, port
24 0388052 Clamp screw, handle ay, al
25 0337018 Swivel plate
26 0334003 Screw, plate
27 0398001 Handle rivet
28 0431962 Lever assy, tilt assist
29 0433584 Arm shaft assy
30 0334438 Knob
31 0333821 Washer
32 0319787 Bushing
33 0332435 Pin
34 0332945 Screw, steering friction
35 0334883 Grommet
36 0306014 Screw, throttle adjustment
37 0432293 Lever assembly, trail lock
38 0351018 Gasket, adapter to powerhead This part replaces 0326468.
39 0436202 Cable, tilt assist
40 0336600 Nut, cable
41 0338118 Housing
42 0305739 "o"ring,valve seat
43 0124378 Seal, fuel inlet
44 0582499 Lead, bonding
45 0908158 Screw, anode This part replaces 0339824.
46 0352105 Clamp, cable This part replaces 0327264.
47 0334161 Anchor block
48 0334153 Connecteur, câble d'accélérateur
49 0337907 Plug, shift rod hole
50 0551113 Ressort de friction de direction
51 0328703 Washer, screw hook This part replaces 0304051.
52 0313580 Washer
53 0908158 Screw, anode This part replaces 0339824.
54 0321232 Retainer washer
55 0332414 Seal
56 0122890 Locknut, pulley
57 0309705 Screw
58 0339822 Screw, mount bracket
59 0433030 Exh. housing, inner, std
60 0335852 Plug
61 0332425 Exh. hsg,. outer, std.
62 0314390 Retainer
63 0317894 Cap, tilt tube
64 0332419 Lwr mt brkt
65 0332420 Lwr mt brkt
66 0339823 Screw, gearcase to housing
67 0332429 Grommet
68 0301250 Rondelle
69 0344342 Seal, steering arm
70 0436470 Mount, upper
71 0332421 Mount, bracket front
72 0333764 Mount, lower
73 0335554 Locknut, tilt tube
74 0908158 Screw, anode This part replaces 0339824.
75 0332226 Screw, air temperature sensor This part replaces 0333673.
76 0306470 Lock washer
77 0582494 Ground strap
78 0332453 Thrust washer
79 0327283 Lockwasher
80 0333674 Screw, start button
81 0324952 Clamp
82 0173029 Anode
83 0339033 Washer, nut, cylinder
84 0334343 Baffle, exhaust relief
85 0334281 Gasket
86 0335221 Screw, cylinder to bracket
87 0334879 Plate, baffle
88 0306423 Bolt
89 0306470 Lock washer
90 0333868 Screw
91 0313581 Bumber, mount screw
92 0434037 Tilt assist cylinder
93 0332434 Bushing, cylinder to bracket
94 0332436 Bushing, cylinder to bracket
95 0333623 Stern bracket, starboard
