EVINRUDE-JOHNSON 438618 Start Button Kit

Write a Review
$41.49
SKU:
438618
Schematic Object Key:
71

EVINRUDE-JOHNSON 438618 Start Button Kit

$41.49

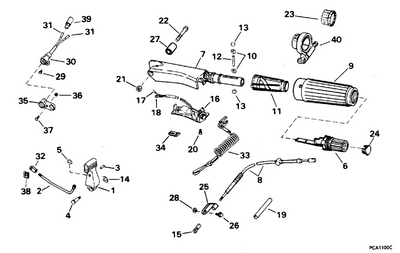

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 438618 Start Button Kit

Schematic Object Key : 71

Replacement: This part (438618) replaces 0327302.

Product Description: Start Button Kit

Category: JOHNSON / 1985 / 40 / J40ECOB 1985 / IGNITION SYSTEM

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
0582900 0582900 Armature plate assy.
0582519 0582519 Plate assembly complete
0583008 0583008 Plate assy. complete
1 0582417 Plate sleeve assembly
2 0307175 ,,screw ,housing
3 0306547 3.washer, mounting stud
4 0582296 Sensor assy
4 0583387 Sensor assembly This part replaces 0581655.
5 0581656 Terminal, socket
6 0511482 Sleeve
6 0512765 Bracket
7 0303212 Screw, cover
8 0309545 Screw, stator mounting
9 0511460 Screw, ignition plate
10 0511458 . clamp, leads
11 0511459 . cover, leads
12 0512415 Connector
13 0581670 Charge coil This part replaces 0581635.
13 0581670 Charge coil
14 0581656 Terminal, socket
15 0309545 Screw, stator mounting
16 0582926 Stator assy.
17 0511601 Sleeve, leads
18 0318322 Attache câble
19 0510780 8 ring termianl This part replaces 0511733.
20 0328703 Washer, screw hook
21 0396141 Power pack
22 0512432 Connecter
23 0511469 Terminal, pin
24 0512478 Couvercle, alvéole bobine primaire
25 0512256 Broche, prise bobine primaire
25A 0512131 Ring terminal
26 0315182 Clamp, cables
27 0328731 Screw, battery cable clamp
28 0314576 Screw This part replaces 0328720.
29 0341474 Screw, cover This part replaces 0510195.
30 0313117 Scr,clamp,eng cable
31 0326365 Clip, spring
32 0328726 Screw use existing coil screw
33 0326111 Nut
33 0321341 Nut, flywheel
34 0583099 Motor cable assy.
35 0204036 10 ring termial,12v
36 0308808 Cosse, plate
37 0204053 Borne, anneau 0,312" 7,9 mm diamètre
38 0510780 8 ring termianl
39 0510884 Fuse, 20 amp.
40 0510818 Terminal, ring This part replaces 0308294.
41 0581656 Terminal, socket
42 0511563 Terminal block
43 0581778 Rectifier lead assy.
44 0510780 8 ring termianl This part replaces 0511733.
45 0310439 Clamp, battery cable This part replaces 0311339.
46 0332070 Screw, retaining plate This part replaces 0326875.
47 0322549 Dispositif de retenue, bouchon
48 0328701 Lockwasher, double ended bolt
49 0321077 Retainer
50 0582365 H.t. lead assembly, spark plugs to ignition coil
51 0581027 Cover terminal assy, spark plug
52 0580339 Cover terminal assy, coil
53 0334193 Retainer, ign. plate assy. This part replaces 0330824.
54 0332063 Plate, support This part replaces 0323398.
55 0320107 Tie strap
56 0310439 Clamp, battery cable
57 0322435 Bearing, timer base plate to
58 0395448 Ball socket assy
59 0328703 Washer, screw hook
60 0582393 Lead assembly
61 0510780 8 ring termianl
62 0510781 Tubing, sleeve
63 0330100 Terminal
64 0313117 Scr,clamp,eng cable This part replaces 0330199.
65 0583929 Starter switch lead assy. This part replaces 0394020.
66 0391306 Cover
67 0329816 Terinal
68 0511829 Ring terminal This part replaces 0114208.
69 0328480 Mounting ring
70 0313584 Spring
71 0438618 Start button kit This part replaces 0327302.
72 0438618 Start button kit This part replaces 0327303.
73 0512682 Cale verrouillage, 3 broches This part replaces 0327638.
74 0310598 Nut, starting switch
75 0328726 Screw use existing coil screw
76 0583696 Flywheel assembly This part replaces 0583012.
77 0329182 Screw, ground terminal
78 0582508 Coil assy
