EVINRUDE-JOHNSON 441801 Gasket, Cylinder Head

Write a Review
$17.99
SKU:
441801
Schematic Object Key:
11

EVINRUDE-JOHNSON 441801 Gasket, Cylinder Head

$17.99

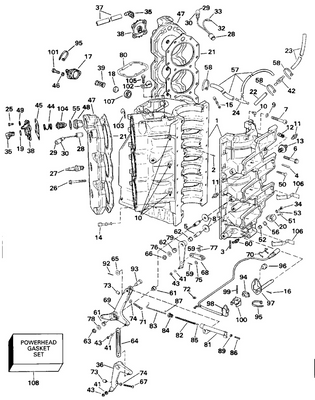

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 441801 Gasket, Cylinder Head

Schematic Object Key : 11

Replacement: This part (441801) replaces 0441043.

Product Description: Gasket, Cylinder Head

Category: EVINRUDE / 1998 / 6 / HE6FRECA 1998 / CYLINDER & CRANKCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0440155 Cylinder crankcase assy.
2 0441107 Screw, block
3 0441110 Pin, dowel
4 0441192 Sleeve, dipstick
6 0440195 Cover, thermostat
7 0440159 Cylinder head seat assy.
9 0446099 Screw, bracket
10 0436195 Thermostat
11 0441801 Gasket, cylinder head This part replaces 0441043.
12 0441021 Gasket, plate
13 0336179 Spring
14 0446009 Screw, reed stop
15 0449537 Spark plug, champion, rp10hc This part replaces 0445098.
16 0445037 Pressure switch
17 0345330 Screw
18 0437694 Diaphragm cup
19 0446078 Washer, exhaust tube
20 0441193 Nipple, exhaust tube
21 0441244 Tube assy., exhaust
22 0446074 Seal, exhaust tube
23 0441067 Gasket, exhaust tube to cyl. head
24 0446081 Relief valve
25 0446080 Spring, relief valve
26 0341193 Plug, cylinder head
27 0446311 Clamp, oil hose to housing
28 0446085 Hose, oil suction
29 0338520 Filter screen
30 0446066 Nipple, intake manifold
31 0441121 Cover assy., breather
32 0446099 Screw, bracket
33 0440174 Dipstick, oil
34 0441161 Screw, intake to cylinder head
35 0441073 Deflector, water passage
36 0446008 Screw, rectifier to crankcase, short
37 0336185 Washer
38 0441064 Gasket, intake manifold
39 0446111 O ring, oil fill plug
40 0446110 Plug, oil fill
41 0441268 Spacer, spring retainer
42 0446121 Washer, cylinder head to block
43 0446438 Spring, pressure relief
44 0441063 Intake manifold
45 0440191 Tube assy., exhaust probe
46 0341196 Cap, exhaust probe
47 0330151 Cable clamp, filter
48 0441066 Gasket, thermostat cover
51 0446314 Screw, exhaust tube to cyl. head
52 0441162 Screw, intake to cylinder head
53 0446119 Screw, cyl. head to cyl. block
57 HOSE, Overboard indicator, 11 1/4 in. (280mm)
60 0441124 Cover, cylinder head
61 0441006 Seal, cover, breather
62 0441200 Mesh, breather
63 0441008 Plate
64 0441014 Reed, breather
65 0441018 Stop, reed
66 0445044 Cover lead assy.
67 0446166 Cover, oil switch
68 0510780 8 ring termianl
69 0512947 Terminal, bullet
70 0513185 Sleeve
72 0320107 Tie strap
73 0446083 Tube, oil hose
74 0441046 Thrust washer, crankshaft
75 0449534 Filter o ring assy. This part replaces 0445013.
76 0446122 Stud, intake manifold
77 0336178 Housing, thermostat
78 0446107 Pin, dowel, bracket to crankcase
79 0446048 Pin, dowel
80 0446209 O ring, cover to housing
82 HOSE, Breather, 12 1/2 in. (320mm)
83 0446283 Extension
84 0446210 O ring, filter to housing
85 0441042 Plate
86 0441084 Gasket, plate
87 0446043 Screw, cover to housing
88 0441163 Screw, relief valve cover
89 0441057 Cover, relief valve
90 0441086 Gasket, cover
91 0441045 Pin, thrust washer
92 0441131 Hose, exhaust tube to sump
93 0444513 Powerhead gasket set
