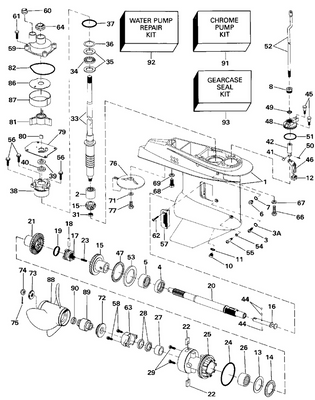

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 7
Product Description: Gearcase & Bearing Assy
Category: JOHNSON / 2001 / 2 / J2RTVSIA Commercial, Rope Start, Tiller, 15 IN. shaft, wht 2001 / GEARCASE - 3RT - RTV - RO
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 0114994 | Screw, bearing housing to g c | |
| 2 | 0302337 | O ring, bearing housing | |
| 3 | 0391171 | Gearcase brearing housing assy. | |
| 4 | 0434694 | Bearing assy | |
| 5 | 0335250 | Seal, bearing housing | |
| 6 | 0326210 | Forward gear assy. | |
| 7 | 0452120 | Gearcase bearing assy | |
| 8 | 0321357 | O ring | |
| 9 | 0325282 | Bearing assy, lower | |
| 10 | 0326207 | Bushing, shift rod | |
| 11 | 0327031 | Seal, driveshaft | |
| 12 | 0391048 | Bearing sleeve assy, driveshaft | This part replaces 0389574. |
| 13 | 0434694 | Bearing assy | |
| 14 | 0326211 | Pinion, driveshaft | |
| 15 | 0114991 | Fill drain plug | |
| 16 | 0114992 | Washer | |
| 17 | 0115284 | Washer | |
| 18 | 0114993 | Grommet, water tube contents of water pump repair kit. | |
| 19 | 0451599 | Housing, water pump | |
| 20 | 0451584 | Screw, water pump assy. | |
| 21 | 0433935 | Impeller assy, water pump contents of water pump repair kit. | |
| 21A | 0335956 | Key, impeller contents of water pump repair kit. | |
| 22 | 0451617 | Driveshaft assy., std. | |
| 23 | 0309243 | Plug, fill drain, upper | |
| 23A | 0336982 | O ring | |
| 24 | 0325669 | Thrust washer | |
| 25 | 0326204 | Screen, water inlet | |
| 26 | 0326205 | Spring, clutch | |
| 27 | 0451587 | Shift rod | |
| 28 | 0329092 | Plate, housing | |
| 29 | 0324641 | Liner, water pump | |
| 30 | 0391065 | Thrust bearing assy | |
| 31 | 0381791 | Thrust bearing assy | |
| 32 | 0451614 | Propeller shaft assy | |
| 33 | 0330342 | Seal | |
| 34 | 0330447 | Gasket, impeller housing | |
| 35 | 0310331 | Ring, clutch | |
| 36 | 0313693 | Cotter pin | |
| 37 | 0452210 | Clutch hub, propeller | |
| 38 | 0115193 | Drive pin | |
| 39 | 0451619 | Transmisson shaft | |
| 40 | 0451610 | Tube, driveshaft | |
| 41 | 0318487 | Propeller included with motor. | |
| 41 | 0318487 | Propeller | This part replaces 0319774. |
| 41 | 0327677 | Propeller, 7 1 2 x 6 1 2 | |
| 42 | 0115218 | Grommet | |
| 43 | 0451597 | Water tube | |
| 51 | 0173029 | Anode | |
| t | 0304454 | Lock washer | |
| t | 0306643 | Screw | |
| 52 | 0394113 | Chrome pump kit | |
| 53 | 0114832 | Water pump repair kit |
