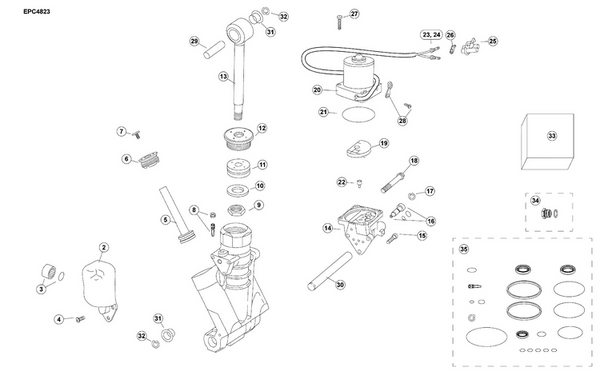

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 34
Product Description: Spool Plug Replacement Kit
Category: EVINRUDE / AA Models / 200 - (G2, 66° V6, 2.7 L) / C200PXCAAF - (G2 66° V6, 2.7 L) / 08-1_TRIM & TILT MANIFOLD ASSEMBLY - TRAC+
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 5010182 | Hydraulic assembly trac models only | |
| 2 | 0435341 | Ensemble réservoir bouchon | |
| 3 | 0435342 | Cap o ring assembly | |
| 4 | 0336746 | Screw, reservoir to manifold | |
| 5 | 0436389 | Tige de correction d assiette | |
| 6 | 0435345 | Chapeau et joint de tige de correction d assiette | |
| 7 | 0337496 | Plaquette de poussée | |
| 8 | 0337530 | Bouchon crépine | |
| 9 | 0324390 | Hex nut, rod end | |
| 10 | 0324385 | Washer, rod end | |
| 11 | *PISTON Assembly | Not sold separately | ||
| 12 | 0390006 | Cap, o ring seal assy. | |
| 13 | 0436390 | Rod eye | |
| 14 | 5008035 | Valve body assembly | |
| 15 | 0337517 | Screw, valve body, short | |
| 16 | 5008034 | Manual release valve seal assy | |
| 17 | 0914069 | Retaining ring, manual release | |
| 18 | 0337495 | Screw, valve body, long | |
| 19 | 0337497 | Filter assembly | |
| 20 | 5005254 | Moteur joint torique | |
| 21 | 0321163 | O ring, motor | |
| 22 | 0914053 | Drive, pump | |
| 23 | 3010063 | Joint, fil | |
| 24 | 0514823 | Terminal | |
| 25 | 3010049 | Connector, 2 position, motor lead | |
| 26 | 3010050 | Secondary lock | |
| 27 | 0337494 | Screw, motor to manifold | |
| 28 | 0435261 | Clamp screw assembly | |
| 29 | 0335480 | Tilt pin, upper | |
| 30 | 0335463 | Tilt pin, lower | |
| 31 | 0335479 | Bushing, tilt pin | |
| 32 | 0336534 | Retaining ring, lower tilt pin | |
| 33 | 0585229 | Brush seal kit | |
| 34 | 5009106 | Spool plug replacement kit | |
| – | 0357112 | O ring | |
| 35 | 0434519 | O ring seal kit |
