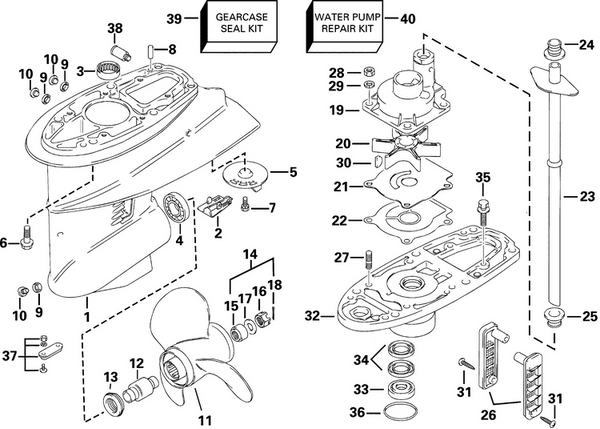

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 11
Product Description: 10 1/4 X 9
Category: EVINRUDE / 2001 / 30 / E30EL4SIC 4-Stroke, Elec. Start, 20 IN. shaft 2001 / GEARCASE
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 5032089 | Gearcase assy. | |
| 2 | 5032090 | Cover, gear case under | |
| 3 | 5031883 | Bearing | |
| 4 | 5031886 | Bearing | |
| 5 | 5032091 | Trim tab | |
| 6 | 5035665 | Bolt 8x40 | This part replaces 5030393. |
| 7 | 5031215 | Bolt 8x16 | |
| 8 | 5031877 | Dowel pin | |
| 9 | 5030071 | Gasket | |
| 10 | 5030094 | Bolt 10x7.5mm | |
| 11 | 5032107 | 10 1 4 x 10 | |
| 11 | 5032108 | 10 1 4 x 11 | |
| 11 | 5032109 | 10 1 4 x 12 | |
| 11 | 5032110 | 10 1 4 x 13 | |
| 11 | 5032106 | 10 1 4 x 14 | |
| 11 | 5032171 | 10 1 4 x 9 | |
| 12 | 5032111 | Bush, propeller | |
| 13 | 5032104 | Spacer, prop nut | |
| 14 | 5032170 | Propeller hardware kit | |
| 15 | 5032105 | Spacer | |
| 16 | 5031826 | Nut | |
| 17 | 5031834 | Spacer washer | |
| 18 | 5030087 | Cotter pin | |
| 19 | 5031990 | Case, water pump | |
| 20 | 5031417 | Impeller assy contents of water pump repair kit. | |
| 21 | 5031418 | Panel, pump case under contents of water pump repair kit. | |
| 22 | 5036681 | Gasket, plate contents of water pump repair kit. | This part replaces 5031419. |
| 23 | 5031992 | Tube, water 15" models only. | |
| 23 | 5031991 | Tube, water 20" models only. | |
| 24 | 5032223 | Grommet, water tube | |
| 25 | 5032224 | Grommet, water tube lower | |
| 26 | 5031428 | Filter, water | |
| 27 | 5030032 | Bolt, stud | |
| 28 | 5030051 | Ecrou | |
| 29 | 5030068 | Rondelle | This part replaces 5031853. |
| 30 | 5031281 | Key contents of water pump repair kit. | |
| 31 | 5032284 | Screw | |
| 32 | 5032093 | Driveshaft bearing housing | |
| 33 | 5031885 | Bearing | |
| 34 | 5031891 | Oil seal | |
| 35 | 5030037 | Bolt | |
| 36 | 5031888 | O ring d 3.6 id 43.2 | |
| 37 | 5031538 | Anode assy. | |
| 38 | 5031537 | Attachment, flush hose | |
| 39 | 5032167 | Gearcase sealing kit | |
| 40 | 5031744 | Water pump repair kit | This part replaces 5032166. |
