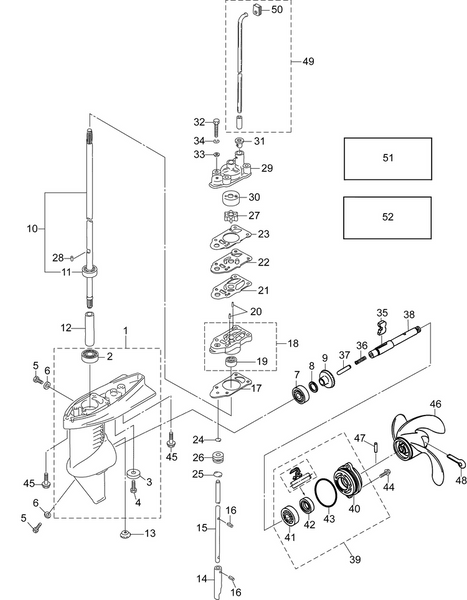

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 2
Product Description: Ball Bearing 6000
Category: EVINRUDE / 2012 / 3.5 PORTABLE / B3R4INS / 17-1_GEARCASE
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 5040752 | Gear case assembly | |
| 2 | 5040406 | Ball bearing 6000 | |
| 3 | 5040052 | Anode | |
| 4 | 5041524 | Bolt | |
| 5 | 5040029 | Plug | |
| 6 | 5040030 | Gasket 8.1 15 1 | |
| 7 | 5041703 | Ball bearing 6004 | |
| 8 | 5040156 | Shim 21 28 0.1 | |
| 8 | 5040156 | Shim 21 28 0.1 | This part replaces 5040157. |
| 9 | 5040155 | Bevel gear ass'y a | |
| 10 | 5040417 | Drive shaft assembly r models 15 in. shaft | |
| 11 | 5040406 | Ball bearing 6000 | |
| 12 | 5040814 | Spacer 10.1 15 72 | |
| 13 | 5040158 | Bevel gear b | |
| 14 | 5040821 | Clutch cam | |
| 15 | 5040822 | Cam rod r models 15 in. shaft | |
| 16 | 5041690 | Spring pin 3 8 | |
| 17 | 5040818 | Pump case gasket lower | |
| 18 | 5040942 | Pump case ass'y lower | |
| 19 | 5040807 | Oil seal 10 22 8 | |
| 20 | 5040526 | Key pump impeller | |
| 21 | 5040819 | Guide plate gasket | |
| 22 | 5040418 | Water pump guide plate | |
| 23 | 5040817 | Pump case gasket | |
| 24 | 5040195 | O ring a 2.5 4.9 | |
| 25 | 5040009 | O ring 2.4 9.5 | |
| 26 | 5040823 | Cam rod bushing | |
| 27 | 5040180 | Water pump impeller | |
| 28 | 5040181 | Key pump impeller | |
| 29 | 5040816 | Pump case upper | |
| 30 | 5040815 | Pump case liner | |
| 31 | 5040820 | Grommet water tube lower | |
| 32 | 5041584 | Bolt | |
| 33 | 5041661 | Washer | |
| 34 | 5041675 | Spring washer | |
| 35 | 5040811 | Clutch | |
| 36 | 5040812 | Spring clutch | |
| 37 | 5040813 | Push rod clutch | |
| 38 | 5040810 | Propeller shaft | |
| 39 | 5040827 | Propeller shaft housing assembly | |
| 40 | 5040826 | Propeller shaft housing | |
| 41 | 5041701 | Ball bearing 6001 | |
| 42 | 5040015 | Oil seal 12 24 8 | |
| 43 | 5040061 | O ring 3.2 47 | |
| 44 | 5041560 | Bolt | |
| 45 | 5040404 | Bolt | |
| 46 | 5040809 | Propeller plastic standard | |
| 46 | 5040825 | Propeller 6" alminium aluminum | |
| 46 | 5040021 | Propeller 6" plastic plastic | |
| 46 | 5040026 | Propeller 4.5" plastic aluminum | |
| 47 | 5040022 | Shear pin | |
| 48 | 5041697 | Cotter pin | |
| 49 | 5040420 | Water pipe assembly r models 15 in. shaft | |
| 50 | 5040419 | Grommet, water pipe upper | |
| 51 | 5040824 | Lower unit gasket set | |
| 52 | 5040434 | Water pump repair kit | |
| NS | 5040048 | Engine flushing adapter optional accessory |
