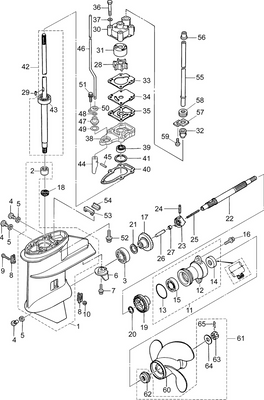

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 3
Product Description: Ball Bearing 6205Hs
Category: EVINRUDE / AA Models / 15 PORTABLE / E15RL4AAB & AAC / 17-1_GEARCASE ASSEMBLY
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
– | 5040612 | Gearcase, complete 15 in. shaft | |
– | 5040613 | Gearcase, complete 20 in. shaft | |
1 | 5040729 | Gearcase housing | |
2 | 5040666 | Roller bearing | |
3 | 5040668 | Ball bearing 6205hs | |
4 | 5040029 | Plug | |
5 | 5040030 | Gasket 8.1 15 1 | |
6 | 5040730 | Propeller shaft housing assembly | |
7 | 5040748 | Propeller shaft housing | |
8 | 5040128 | Roller bearing 17 24 20 | |
9 | 5040668 | Ball bearing 6205hs | |
10 | 5040001 | O ring 2.4 59.6 | |
11 | 5040080 | Oil seal 17 30 9 | |
12 | 5041561 | Bolt | |
13 | 5041325 | Trim tab | |
14 | 5041533 | Bolt | |
15 | 5040681 | Bevel gear assembly a | |
16 | 5040682 | Bevel gear b | |
17 | 5040073 | Nut bevel gear b | |
18 | 5040683 | Bevel gear c | |
19 | 5040096 | Washer 17.1 22 1.5 | |
20 | 5040130 | Propeller shaft | |
21 | 5040684 | Clutch | |
22 | 5040097 | Pin clutch 5 30 | |
23 | 5040098 | Snap clutch pin | |
24 | 5040034 | Spring clutch | |
25 | 5040099 | Spring retainer clutch | |
26 | 5040685 | Push rod clutch | |
27 | 5041709 | Ball steel 3 8 | |
28 | 5040127 | Water strainer | |
29 | 5041606 | Screw | |
30 | 5041653 | Nylon nut | |
31 | 5040144 | Water strainer | |
32 | 5041639 | Screw | |
33 | 5040046 | Water pump impeller | |
34 | 5040104 | Key pump impeller | |
35 | 5040102 | Pump case upper | |
36 | 5040100 | Pump case liner | |
37 | 5040101 | Water pipe seal lower | |
38 | 5040103 | Pump case lower | |
39 | 5040031 | Oil seal 13.8 26 9.5 | |
40 | 5040049 | O ring 3.5 36 | |
41 | 5040105 | Water pump guide plate | |
42 | 5041566 | Bolt | |
43 | 5040074 | Shim 35 41.9 0.1 | |
43 | 5040075 | Shim 35 41.9 0.15 | |
43 | 5040076 | Shim 35 41.9 0.3 | |
43 | 5040077 | Shim 35 41.9 0.5 | |
44 | 5040742 | Drive shaft 15 in. shaft | |
44 | 5040743 | Drive shaft 20 in. shaft | |
45 | 5040667 | Ball bearing 7302a | |
46 | 5040605 | Cam rod 15 in. shaft | |
46 | 5040606 | Cam rod 20 in. shaft | |
47 | 5040458 | Clutch cam | |
48 | 5041692 | Spring pin 3 12 | |
49 | 5041693 | Spring pin | |
50 | 5040244 | Bushing cam rod | |
51 | 5040035 | O ring 2.4 5.8 | |
52 | 5040049 | O ring 3.5 36 | |
53 | 5040037 | Stopper cam rod bushing | |
54 | 5041556 | Bolt | |
55 | 5041650 | Nut | |
56 | 5041138 | Washer 8.1 16 1.5 | |
57 | 766546 | Propeller aluminum 3 blade, 9.25 in diameter x 7 in pitch | |
57 | 766547 | Propeller aluminum 3 blade, 9.25 in diameter x 8 in pitch | |
57 | 766548 | Propeller aluminum 3 blade, 9.25 in diameter x 9 in pitch | |
57 | 766549 | Propeller aluminum 3 blade, 9.25 in diameter x 10 in pitch | |
57 | 766550 | Propeller aluminum 3 blade, 9.25 in diameter x 11 in pitch | |
57 | 0766551 | Propeller 4 blade, 10 in. diameter x 5 in pitch | |
57 | 0766552 | Propeller 4 blade, 10 in. diameter x 7 in pitch | |
58 | 5041468 | Propeller hardware kit | |
59 | 5040131 | Thrust holder | |
60 | 5040078 | Propeller nut | |
61 | 5040079 | Washer 12.5 32 2.5 | |
62 | 5041696 | Split pin 3 22 | |
63 | 5040068 | Sub water inlet hose plug optional | |
64 | 5040504 | Shift rod | |
65 | 5040247 | Lower unit gasket set | |
66 | 5040133 | Water pump repair kit | |
67 | 5040132 | Water pump kit chrome plated | |
NS | 5040614 | Extension housing kit converts 20 in. shaft to 25 in. shaft |
