EVINRUDE-JOHNSON 510364 Terminal,Lead

Write a Review
$3.49
SKU:
510364-OMC
Schematic Object Key:
67

EVINRUDE-JOHNSON 510364 Terminal,Lead

$3.49

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 510364 Terminal,Lead

Schematic Object Key : 67

Product Description: Terminal,Lead

Category: STERN DRIVE / 1968 / 90 / DUE-15S 1968 / DISTRIBUTOR GROUP

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

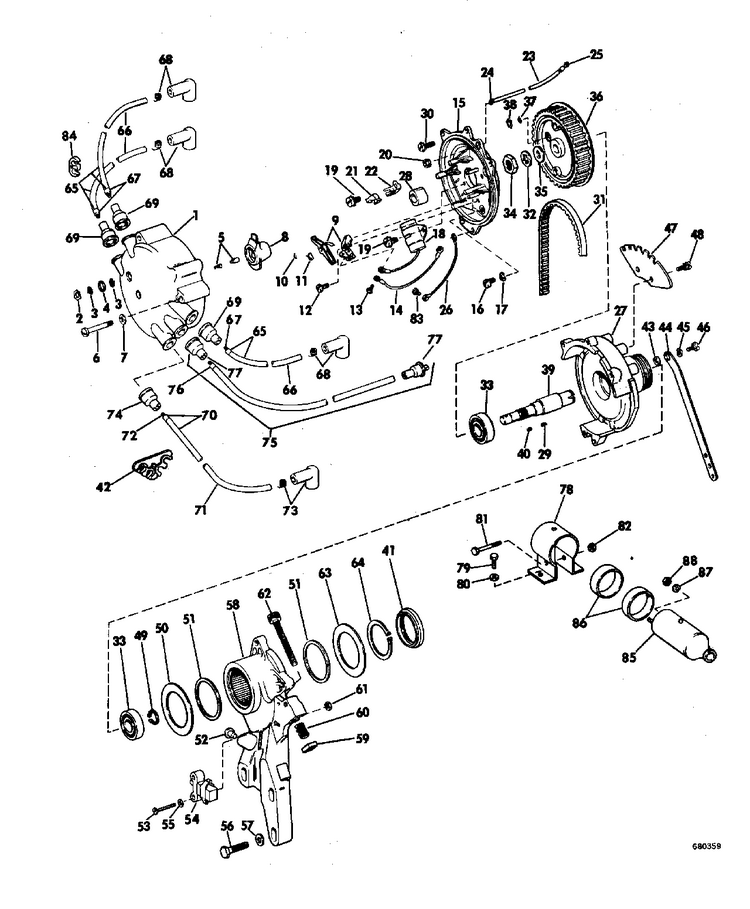

Parts List:

Key Part No. Product Name Additional_info
0580621 0580621 Distributor assy.,less bracket and hi tension leads
1 0580327 Distributor cap screen assembly
2 0510411 Retainer
3 0510355 Screen
4 0510375 Spacer
5 0580291 Brush spring assembly
6 0307993 Screw
7 0306547 3.washer, mounting stud
8 0580338 Rotor
0580496 0580496 Breaker plate assy
9 0580290 Breaker base assy
10 0307594 . clip, rocker arm
11 0510204 . clip, breaker spring
12 0510278 Screw
13 0510194 Screw
14 0580279 Lead assembly
15 0580491 Plate,breaker
16 0510185 Eccentric screw
17 0510391 Bow wahser,eccentric scr.
18 0580256 Condenser
19 0510328 Screw
20 0301571 Grommet
21 0510377 Oiler wick
22 0510376 Clip,oiler
23 0580502 Lead
24 0510426 Ring terminal
25 0510266 . terminal
26 0580501 Ground strap
27 0580669 Housing sleeve assy
28 0307791 Cam,distributor
29 0307717 Key,shaft to cam
30 0305230 Screw
31 0305446 Belt
32 0306994 Lockwasher
33 0580258 Bearing assembly
34 0307915 Nut,hex
35 0309927 Washer
36 0580309 Pulley screen assy
37 0510355 Screen
38 0510411 Retainer
39 0580619 Shaft ball assy
40 0307717 Key,shaft to cam
41 0510421 Cap,distributor housing
42 0310446 Retainer, ignition leads
43 0304352 Sleeve
44 0510433 Link
45 0510412 Bow washer
46 0303247 Screw
47 0312879 Retainer
48 0305230 Screw
49 0307917 Retaining ring
50 0510327 Washer,upper
51 0510403 Washer,inner
52 0203290 Bumpber, anchor and pin assy.
53 0307910 Screw
54 0386056 Safety switch assy This part replaces 0379542.
55 0310498 Washer
56 0304055 Screw
57 0305486 Washer
58 0381935 Bracket bearing assy
59 0203688 Nut
60 0308993 Ressort, friction d'accélération
61 0325994 Nut, safety switch This part replaces 0307788.
62 0312374 Screw, idle adj.
63 0307918 Washer,lower
64 0307916 Retaining ring
0580425 0580425 Lead assembly,plug 1,2,3
65 0580429 Terminal lead assembly
66 0510357 Lead,only
67 0510364 Terminal,lead
68 0580339 Cover terminal assy, coil
69 0510332 Nipple
0580475 0580475 Lead assembly,plug 4
70 0580429 Terminal lead assembly
71 0510601 Lead,only
72 0510364 Terminal,lead
73 0580339 Cover terminal assy, coil
74 0510332 Nipple
75 0580658 Lead assembly,dist.to coil
76 0510364 Terminal,lead
77 0510332 Nipple
78 0312616 Bracket,ignition coil
79 0303398 Screw, lower This part replaces 0302030.
80 0308919 Washer,bracket screw
81 0600014 Screw
82 3852420 Locknut, throttle lever This part replaces 0900402.
83 0309072 Screw, detent spring, up. throt. cable anchr
84 0310445 Retainer
85 0379569 Coil assembly
86 0307768 Sleeve
87 0550757 L'washer,coil term
88 0306556 Nut, leaf screw
