EVINRUDE-JOHNSON 582901 Power Pack Assy.

Write a Review
$79.99
SKU:
582901-OMC
Schematic Object Key:
28

EVINRUDE-JOHNSON 582901 Power Pack Assy.

$79.99

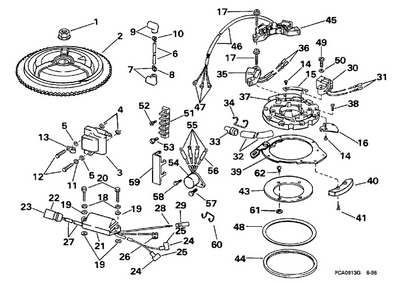

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 582901 Power Pack Assy.

Schematic Object Key : 28

Product Description: Power Pack Assy.

Category: EVINRUDE / 1984 / 40 / E40RWCRA 1984 / IGNITION

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0326111 Nut This part replaces 0308457.
2 0582625 Flywheel assembly
3 0392584 Retainer link assy.
4 0582365 H.t. lead assembly, spark plugs to ignition coil
5 0581027 Cover terminal assy, spark plug
6 0580339 Cover terminal assy, coil
7 0328726 Screw use existing coil screw
8 0202111 Ratchet
0582623 0582623 Plate assy. complete
9 0582624 Plate sleeve assy
10 0306547 3.washer, mounting stud
11 0583387 Sensor assembly This part replaces 0581655.
11 0583387 Sensor assembly This part replaces 0582069.
12 0581656 Terminal, socket
13 0307175 ,,screw ,housing
14 0511482 Sleeve
15 0303212 Screw, cover
16 0309545 Screw, stator mounting
17 0511460 Screw, ignition plate
18 0511458 . clamp, leads
19 0511459 . cover, leads
20 0511991 . connector, plug
21 0581670 Charge coil
22 0581656 Terminal, socket
23 0308072 Screw
24 0322102 Plate, support
25 0511465 Connector, 3 pin recepticale
26 0328725 Screw, cover to gearcase
27 0319547 Screw, clamp ground lead
28 0582901 Power pack assy.
29 0511469 Terminal, pin
30 0581656 Terminal, socket
31 0511449 Commector, coil to power pack
32 0511990 Connector, 3 socket
33 0322549 Dispositif de retenue, bouchon
34 0328703 Washer, screw hook This part replaces 0304051.
35 0322435 Bearing, timer base plate to
36 0582106 Coil assy
37 0510818 Terminal, ring
38 0511469 Terminal, pin
39 0328701 Lockwasher, double ended bolt This part replaces 0303480.
40 0322548 Retainer, connector, 3 pin
41 0389856 Shortin switch assy.
42 0510818 Terminal, ring This part replaces 0308175.
43 0511469 Terminal, pin
44 0326048 Moutning ring
45 0391306 Cover
46 0310598 Nut, starting switch
47 0328701 Lockwasher, double ended bolt This part replaces 0303480.
