EVINRUDE-JOHNSON 583715 Timer Base & Sensor Assy.

Write a Review
$249.99
SKU:
583715
Schematic Object Key:
8

EVINRUDE-JOHNSON 583715 Timer Base & Sensor Assy.

$249.99

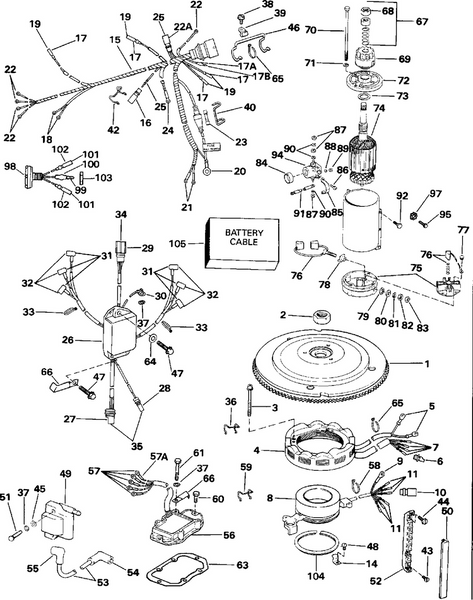

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 583715 Timer Base & Sensor Assy.

Schematic Object Key : 8

Product Description: Timer Base & Sensor Assy.

Category: EVINRUDE / 1991 / 150 / E150CXEIE 1991 / IGNITION SYSTEM - 150 MODELS

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0582403 Flywheel assy
2 0323599 Locknut
3 0325135 Screw, stator mounting
4 0583837 Stator assy.
5 0511829 Ring terminal
6 0512749 Connector
7 0581656 Terminal, socket
8 0583715 Timer base sensor assy.
9 0510818 Terminal, ring
10 0513201 Connector
11 0511469 Terminal, pin
14 0326439 Clamp, leads
15 0584220 Engine cable assy.
16 0513357 Connector, 1 pin receptacle
17 0513186 Sheath, cell
17A 0513185 Sleeve
17B 0512947 Terminal, bullet
18 0511829 Ring terminal
19 0512876 Terminal, socket
20 0204053 Borne, anneau 0,312" 7,9 mm diamètre
21 0204036 10 ring termial,12v
22 0510780 8 ring termianl
22A 0512750 Connector, 4 pin
23 0510884 Fuse, 20 amp.
24 0510818 Terminal, ring
25 0511469 Terminal, pin
26 0584044 Power pack
27 0513202 Connector
28 0513356 Connector, 1 socket plug
29 0512750 Connector, 4 pin
30 0510780 8 ring termianl This part replaces 0511733.
31 0512478 Couvercle, alvéole bobine primaire
32 0512256 Broche, prise bobine primaire
33 0317893 Tie strap
34 0511469 Terminal, pin
35 0581656 Terminal, socket
36 0512743 Retainer
37 0328701 Lockwasher, double ended bolt
38 0328724 Screw
39 0326365 Clip, spring
40 0321077 Retainer
42 0512741 Retainer, connector, 1 pin
43 0329182 Screw, ground terminal
44 0306644 Screw, rectifier mounting
45 0328703 Washer, screw hook
46 0315182 Clamp, cables
47 0328726 Screw use existing coil screw
47 0328725 Screw, cover to gearcase
48 0328714 Screw, clip
49 0582508 Coil assy
50 0432297 Cover assy.
51 0328726 Screw use existing coil screw
52 0326255 Lever, choke knob
53 0582365 H.t. lead assembly, spark plugs to ignition coil
54 0581027 Cover terminal assy, spark plug
55 0580339 Cover terminal assy, coil
56 0585195 Rectifier regulator assy. This part replaces 0584204.
57 0511829 Ring terminal
57A 0510781 Tubing, sleeve
58 0317893 Tie strap
59 0513239 Retainer, 6 terminal connector
60 0306409 Screw, anchor block lower
61 0306778 Ecrew,exhaust cover,1 3 8"long
63 0322858 Gasket
64 0328701 Lockwasher, double ended bolt
65 0320107 Tie strap
66 0316487 Retainer
0395207 0395207 Electric starter assy.
67 0393285 Nut spring spacer
68 0393354 Nut spring spacer kit This part replaces 0316740.
69 0387683 Drive assy
70 0387938 Thru bolt pkg
71 0321568 Lockwasher
72 0386639 . cap assy.
73 0316750 . washer, thrust
74 0387682 Armature
75 0386645 Cap assy ., commutator
76 0385952 Brush spring set
77 0387680 Bolt
78 0316743 Bushing, insulation
79 0316748 Washer, insulation
80 0316749 Washer, lock
81 0306396 Lock washer, control to boat This part replaces 0316744.
82 0387678 Nut and washer
83 0321642 . . nut, input stud
84 0311217 Sleeve
85 0330112 Clamp, solenoid
86 0329217 Screw, retainer
87 0311349 Nut, solenoid
88 0304454 Lock washer
89 0306556 Nut, leaf screw
90 0331259 Lock washer
91 0394925 Cable, starter
92 0302860 Screw. starter motor
94 0586180 Ensemble solénoïde This part replaces 0395419.
95 0908158 Screw, anode This part replaces 0305284.
97 0328701 Lockwasher, double ended bolt
98 0585146 Switch assembly This part replaces 0583803.
99 0512947 Terminal, bullet
100 0513185 Sleeve
101 0512876 Terminal, socket
102 0513186 Sheath, cell
103 0334656 Nut
104 0313666 Ret., distributor base 1
