EVINRUDE-JOHNSON 586972 Engine Harness Assy

Write a Review
$723.49
SKU:
586972
Schematic Object Key:
-

EVINRUDE-JOHNSON 586972 Engine Harness Assy

$723.49

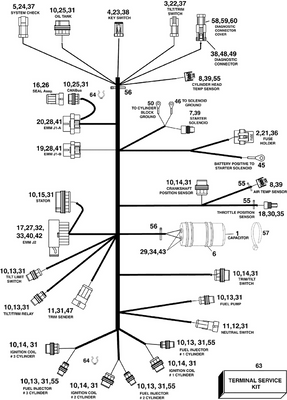

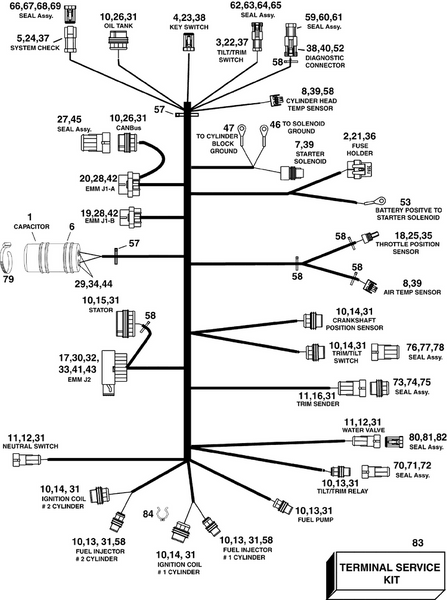

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 586972 Engine Harness Assy

Schematic Object Key : -

Product Description: Engine Harness Assy

Category: EVINRUDE / 2009 / 40 / E40DRLSEE / ELECTRICAL HARNESS

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
- 0586972 Engine harness assy
1 3010449 Capacitor
2 3011258 Connecteur
3 3011329 Connector, 3 pin receptacle
4 3011328 Connector seal, 6 socket plug
5 3011327 Connector, 6 pin receptacle
6 0514889 Cover, capacitor
7 3010123 Connector seal, 2 socket plug
8 3011523 Connector seal, 2 pin plug
10 3011147 Contact, female receptacle included in accessory terminal service kit, p n 777283
11 3011148 Contact, tab included in accessory terminal service kit, p n 777283
12 3011154 Connector, 2 position plug
13 3011153 Connecteur, fiche 2 positions
14 3011155 Connecteur, fiche 3 positions
15 3011157 Connecteur, fiche 6 positions
16 3011156 Connector, 3 position
17 3011161 Connector seal, 16 position plug
18 3011446 Connecteur, fiche 3 positions
19 3011169 Connector seal, 26 position plug
20 3011170 Connector seal, 34 position plug
21 0967545 Fuse, 10 amp
22 0514682 Lock wedge, 3 pin
23 0514683 Cale verrouillage, fiche 6 broches
24 0514684 Lock wedge, 6 pin
25 3011447 Joint, fil
26 3011420 Connector
27 3011421 Connecteur, emm
28 3011173 Plug, cavity
29 0332067 Screw
30 3011168 Plug, cavity
31 3011149 Seal, wire
32 3011350 Seal, wire
33 3011175 Seal, wire 18 gauge
34 0512550 Terminal
35 3011448 Borne
36 0514035 Borne, prise
37 0514679 Borne, broche
38 0514680 Socket
39 3010125 Terminal, socket
40 0514681 Lock wedge, 3 socket
41 3011166 Terminal 14 gauge
42 3011171 Terminal
43 3011174 Terminal 18 gauge
44 0327283 Lockwasher
45 3011150 Plug, sealing
46 0204363 Terminal, ring
47 0600138 Ring terminal
52 3011326 Connector seal, 3 socket plug
53 0204053 Borne, anneau 0,312" 7,9 mm diamètre
57 0320107 Tie strap
58 0317893 Tie strap
59 0586072 Connector assy, diagnostic cover
60 0514686 Connecteur, 3 broches
61 0514690 Bouchon, mâle
62 0586111 Connector seal dr models
63 0514681 Lock wedge, 3 socket
64 0514685 Connector, 3 socket
65 0514690 Bouchon, mâle
66 0586076 Joint, connecteur systemcheck dr models
67 0514683 Cale verrouillage, fiche 6 broches
68 0514687 Connecteur, fiche 6 broches
69 0514690 Bouchon, mâle
70 0586812 Conn seal dr models
71 3011150 Plug, sealing
72 3011154 Connector, 2 position plug
73 0586813 Seal assembly, trim sender dr models
74 3011150 Plug, sealing
75 3011155 Connecteur, fiche 3 positions
76 0586811 Seal assembly, trim tilt dr models
77 3011150 Plug, sealing
78 3011156 Connector, 3 position
79 0907833 Attache câble, câbles vers commande de sens de marche
80 0586821 Connector sea, 2 pin plug
81 3011153 Connecteur, fiche 2 positions
82 3011150 Plug, sealing
83 0777283 Amp connector seal kit
84 3011450 Clip
