EVINRUDE-JOHNSON 587402 Sensor, Crankshaft Position (Cps)

Write a Review
$43.99
SKU:
587402
Schematic Object Key:
8

EVINRUDE-JOHNSON 587402 Sensor, Crankshaft Position (Cps)

$43.99

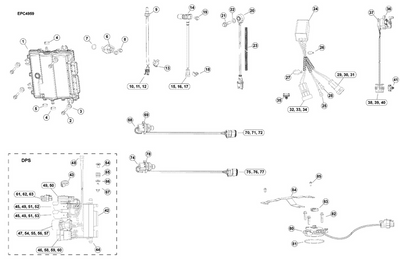

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 587402 Sensor, Crankshaft Position (Cps)

Schematic Object Key : 8

Replacement: This part (587402) replaces 0587014.

Product Description: Sensor, Crankshaft Position (Cps)

Category: EVINRUDE / 2012 / 225 / DE225PXINS / EMM, SENSORS, IGNITION COILS & SPARK PLUGS (3.3 L)

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0587130 Emm
2 0333710 Screw, anchor bracket
3 0328703 Washer, screw hook
4 0333040 Isolator
5 0338558 Entretoise, à collerette
6 0353861 Hose, exh back pressure to emm
7 0320107 Tie strap
8 0587402 Sensor, crankshaft position cps This part replaces 0587014.
9 3011148 Contact, tab
10 3011149 Seal, wire
11 3011156 Connector, 3 position
12 5006484 Sensor, throttle position tps
13 0352129 Nut, tps push
14 0336197 Washer, tps
15 0352122 Washer, tps isolation
16 0587275 Ignition coil This part replaces 0586980.
17 3011149 Seal, wire
18 3011148 Contact, tab
19 3011156 Connector, 3 position
20 0907833 Attache câble, câbles vers commande de sens de marche
21 5007720 Bracket, ignition coil mount port
22 5007721 Bracket, ignition coil mount starboard
23 0335200 Bonding lead
24 3011347 Clip fuel filter connector
25 0353545 Screw, coil to bracket
26 0353540 Washer, ign coil screw rubber
27 5007415 Spark plug lead
28 0335200 Bonding lead
29 0328701 Lockwasher, double ended bolt
30 3011346 Clip
31 5007597 Spark plug qc8wep
32 3010673 Sensor, air temperature
33 3010674 Engine temperature sensor
34 0587042 Sensor, knock
35 0339823 Screw, gearcase to housing
36 0301250 Rondelle
NS 3011666 Tubing, convoluted
