Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 51
Replacement: This part (778773) replaces 0174817.

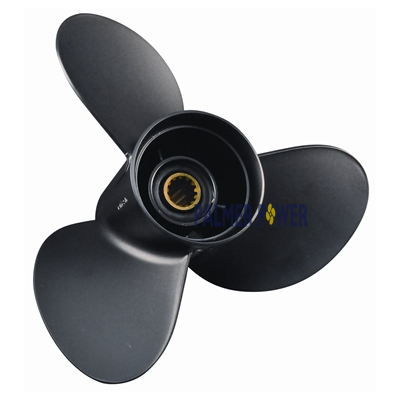

Product Description: Rh Alum. 9 X11 | Refer To Genuine Parts Propeller Chart
Category: JOHNSON / 2001 / 10 / J10EVLSIC elec start, 20 in shaft, wht 2001 / GEARCASE
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 0437774 | Bearing housing, bearing seal | |
| 2 | 0342247 | Seal, brg hsg. to prop. shaft contents of gearcase seal kit. | |
| 3 | 0386125 | Bearing, reverse gear | |
| 4 | 0386231 | Bearing | |
| 5 | 0333706 | Screw, bearing housing to gearcase | |
| 6 | 0394823 | Gear bushing assy., forward | |
| 7 | 0308627 | "o" ring, bearing housing to gearcase contents of gearcase seal kit. | |
| 8 | 0330201 | Gear, reverse | |
| 9 | 0343491 | Propeller shaft | |
| 10 | 0316505 | Spring, detent | |
| 11 | 0316506 | Ball, detent | |
| 12 | 0325263 | Shifter, clutch dog | |
| 13 | 0388416 | Shifter lever yoke assy. | |
| 14 | 0308376 | Pivot pin, shift lever | |
| 15 | 0332584 | Washer, seal ring | |
| 16 | 0386186 | Roller bearing, forward gear | |
| 17 | 0338190 | Pinion, driveshaft | |
| 18 | 0336296 | Thrust washer, lower pinion | |
| 19 | 0388000 | Thrust bearing, pinion | |
| 20 | 0343251 | Thrust washer | |
| 21 | 0438617 | Gearcase assy, | This part replaces 0435393. |
| 22 | 0386014 | Bearing assembly, driveshaft | |
| 23 | 0318874 | Sleeve, bearing driveshaft | |
| 24 | 0321480 | Seal, driveshaft contents of gearcase seal kit. | |
| 25 | 0301877 | O ring shift rod contents of gearcase seal kit. | |
| 26 | 0304765 | Bushing, shift rod | |
| 27 | 0321738 | Washer, seal, shift rod contents of gearcase seal kit. | |
| 28 | 0386071 | Bearing assy., pinion to gearcase | |
| 29 | 0338635 | Anode | |
| 30 | 0338443 | Screen, inlet | |
| 31 | 0304013 | Screw, anode | |
| 32 | 0325539 | Screw, sceen to gearcase | |
| 33 | 0121470 | Locknut, hook bolt to cross bar | |
| 34 | 0307551 | Screw | |
| 35 | 0311598 | Seal | |
| 36 | 0325014 | Cradle, clutch dog | |
| 37 | 0327035 | Grommet, water tube lower contents of water pump repair kit. re, te 15 inch 381mm models. | |
| 37 | 0302497 | Grommet, lower water tube contents of water pump repair kit. rl, el, tel 20 inch 508mm models. | |
| 38 | 0435390 | Impeller hsg. seal assy. contents of water pump repair kit. | |
| 39 | 0318972 | Seal, oil contents of gearcase seal kit. contents of water pump repair kit. | |
| 41 | 0302325 | Screw, impeller housing contents of water pump repair kit. | |
| 42 | 0318995 | Plate, impeller housing contents of water pump repair kit. | |
| 42 | 0318995 | Plate, impeller housing contents of chrome pump kit. | This part replaces 0319988. |
| 43 | 0341590 | Driveshaft, standard re, te 15 inch 381mm models. | |
| 44 | 0328522 | Cotter pin | |
| 45 | 0318971 | Nut | |
| 46 | 0323942 | Spacer | |
| 47 | 0318992 | Shift rod lower, standard re, te 15 inch 381mm models. | |
| 48 | 0304024 | Screw | |
| 49 | 0303794 | Connector | |
| 50 | 0324097 | Cup, impeller housing contents of water pump repair kit. | |
| 50 | 0323535 | Cup contents of chrome pump kit. | |
| 51 | 0778772 | Rh alum. 9 1 2 x 10 | This part replaces 0174950. |
| 51 | 0778773 | Rh alum. 9 x11 refer to genuine parts propeller chart | This part replaces 0174817. |
| 52 | 0332395 | Converging ring | |
| 53 | 0386119 | Bushing, propeller | |
| 54 | 0334590 | Thrust bushing, prop. | |
| 55 | 0341206 | Screw | |
| 56 | 0386084 | Impeller | |
| 58 | 0319085 | Seal contents of gearcase seal kit. contents of water pump repair kit. | |
| 59 | 0301551 | Washer, lock | |
| 69 | 0300611 | . dowel, bearing contents of water pump repair kit. | |
| 70 | 0341591 | Driveshaft, long rl, el, tel 20 inch 508mm models. | |
| 71 | 0319298 | Rod,shift rl, el, tel 20 inch 508mm models. | |
| 72 | 0304024 | Screw rl, el, tel 20 inch 508mm models. | |
| 73 | 0303794 | Connector rl, el, tel 20 inch 508mm models. | |
| 74 | 0319340 | Extension rl, el, tel 20 inch 508mm models | |
| 75 | 0319085 | Seal contents of water pump repair kit. rl, el, tel 20 inch 508mm models. | |
| 76 | 0301551 | Washer, lock | |
| 77 | 0326922 | Exhaust seal, gearcase ext v rl, el, tel 20 inch 508mm models. | |
| 78 | 0341206 | Screw rl, el, tel 20 inch 508mm models. | |
| 79 | 0331152 | Extension rl, el, tel 20 inch 508mm models. | |
| 80 | 0320025 | Extension rl, el, tel 20 inch 508mm models. | |
| 81 | 0202893 | "o" ring, drive shaft rl, el, tel 20 inch 508mm models. | |
| 82 | 0394711 | Chrome pump kit | |
| 83 | 0394711 | Chrome pump kit | This part replaces 0389114. |
| 84 | 0396350 | Gearcase seal kit |
