EVINRUDE-JOHNSON 913435 Hose, Elbow To Drain Tee

Write a Review
$34.49
SKU:
913435
Schematic Object Key:
41

EVINRUDE-JOHNSON 913435 Hose, Elbow To Drain Tee

$34.49

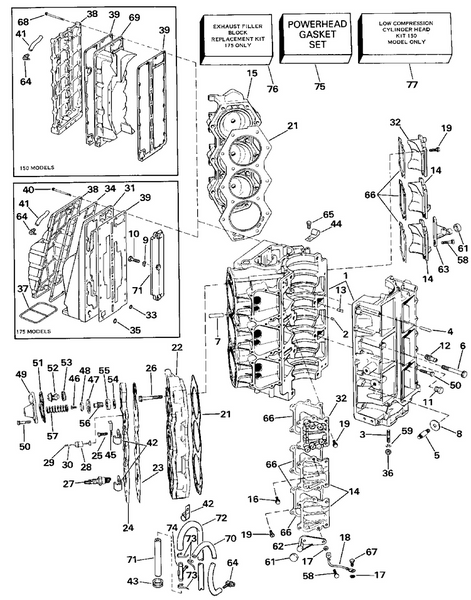

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 913435 Hose, Elbow To Drain Tee

Schematic Object Key : 41

Replacement: This part (913435) replaces 0327720.

Product Description: Hose, Elbow To Drain Tee

Category: JOHNSON / 1990 / 150 / VJ150TXESB 1990 / CYLINDER & CRANKCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0434158 Cylinder c'case assy.,175 This part replaces 0432159.
1 0432153 Cylinder c'case assy.
2 0304178 Pin, dowel
3 0314616 Stud
4 0305070 Axe, carter moteur vers bloc
5 0338653 Stud, shift throttle levers This part replaces 0320808.
6 0316988 Screw, lockplate cyl. to c'case
7 0322411 Deflector, water pass
8 0320744 Washer, stud
9 0309577 Lock plate
10 0324813 Ecrew,exhaust cover,1 3 8"long This part replaces 0324565.
11 0332135 Plug
12 0303492 Fitting, crankcase
13 0394884 Check valve
14 0328004 Cover, bypass
15 0328324 Cyl. head, port
15 0332136 Cyl. head, port 175
16 0319292 Screw, clamp
17 0328701 Lockwasher, double ended bolt
18 0376349 Lead, ground
19 0306049 Screw
21 0335360 Gasket, cylinder head
21 0335361 Gasket, cylinder head, 175
22 0328325 Cyl. head, stbd.
22 0332137 Cylinder head, stbd 175
23 0321028 Gasket cover
24 0320840 Cover, cylinder head
25 0300646 Screw, clamp, fuel filter
26 0307267 Screw
27 0502180 Spark plug, champion ql77jc4 This part replaces 0387633.
27 0386941 Spark plub,champion l77j4
27 0432424 Spark plug , ql16v
28 0584592 Switch, temperature This part replaces 0583441.
28 0584592 Switch, temperature This part replaces 0583441.
28 0583789 Temperature switch, port
29 0512947 Terminal, bullet
30 0513185 Sleeve
31 0336432 Exhaust cover inner, 175 This part replaces 0329379.
32 0328005 Cover, bypass cover
33 0329381 O ring, manifold, 175
34 0336430 Sleeve, braided This part replaces 0323217.
35 0329380 O ring, manifold, 175
36 0306422 Nut
37 0336429 Seal, exhaust manifold, 175 This part replaces 0323625.
38 0329494 Cover, exhaust outer
38 0336433 Cover, exhaust outer, 175 This part replaces 0329495.
39 0321182 Gasket, inner cover
39 0393561 Gasket, inner cover, 175
40 0323218 Screw, exh. manf. to cyl., 127mm 5"
40 0328725 Screw, cover to gearcase
40 0335220 Screw, bracket
40 0335221 Screw, cylinder to bracket
40 0317972 Acrew,exh manf to cyl.,4 1 4" long This part replaces 0335222.
40 0335223 Screw, carburetor body, long
41 0913435 Hose, elbow to drain tee This part replaces 0327720.
42 0330151 Cable clamp, filter
43 0320521 Grommet
44 0310441 Clamp, small
45 0316487 Retainer
46 0306643 Screw
47 0321221 Seal, pressure release
48 0321220 Retainer, spring valve
49 0321013 Cover, thermostat
50 0306778 Ecrew,exhaust cover,1 3 8"long
51 0321184 Gashket,thermostatcover
52 5005440 Thermostat This part replaces 0393659.
53 0310058 Gasket, thermostat
54 0321222 Cup, valve seat
55 0320880 Seat
56 0321027 Valve, preasure realese
57 0317245 Spring, control valve
58 0331025 Screw This part replaces 0308751.
59 0301250 Rondelle
60 0330151 Cable clamp, filter This part replaces 0309322.
61 0313581 Bumber, mount screw
62 0319218 Support bnrace,stbd.
63 0319217 Pin,clevis to shift lock
64 0321886 Elbow
65 0908158 Screw, anode This part replaces 0305284.
66 0307133 Gasket
67 0303398 Screw, lower
68 0335224 Screw, exh. manf to cyl., 1 1 4 in. 32mm
69 0326308 Ech.cover,inner,150,175,200
70 0911118 Hose, elbow to tee
71 0911120 Hose, tee to grommet
72 0912749 Hose, aspiration
73 0318322 Attache câble
74 0911103 30 degree
75 0391988 Powerhead gasket set
75 0394885 Powerhead gasket set
76 0392001 Exhaust filler block replacement kit
77 0394621 Low compression cyl. head kit
