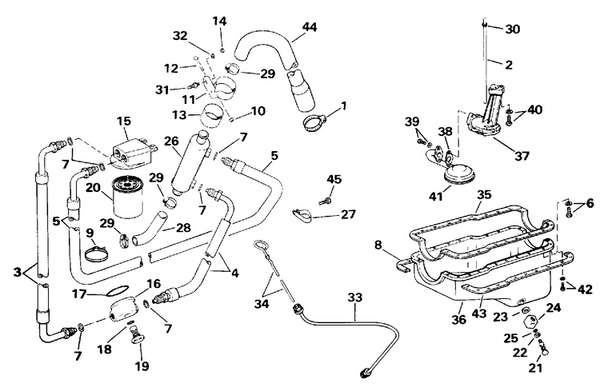

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 5
Product Description: Hose, Filter To Cooler
Category: STERN DRIVE / 1992 / 5.8 / 584DPEAMK 1992 / OIL SYSTEM
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 3853786 | Clamp instrument cable | This part replaces 0980577. |
| 2 | 3853105 | Shaft, oil pump | This part replaces 0914235. |
| 3 | 3854419 | Hose, adapter to filter | This part replaces 0987535. |
| 4 | 0987536 | Hose, adapter to cooler | |
| 5 | 0987537 | Hose, filter to cooler | |
| 6 | 3853006 | Screw, oil pan | This part replaces 0914132. |
| 7 | 0124378 | Seal, fuel inlet | |
| 8 | 3853106 | Reinforcement, oil pan, stbd. | This part replaces 0914236. |
| 9 | 3852620 | Tie strap, oil lines | This part replaces 0912861. |
| 10 | 0308335 | Clamp, coil | |
| 11 | 3852218 | Bracket, oil cooler | This part replaces 0383448. |
| 12 | 0314417 | Screw, pump to base | |
| 13 | 3853236 | Sleeve, ignition coil | This part replaces 0914455. |
| 14 | 0320266 | Locknut, cooler bracket | |
| 15 | 3854592 | Adapter, oil filter | This part replaces 0986365. |
| 16 | 3854414 | Adapter, engine oil | This part replaces 0914474. |
| 17 | 0912465 | O ring, adapter | |
| 18 | 0310584 | O ring, impeller to driveshaft | |
| 19 | 3854415 | Retainer, adapter | This part replaces 0912547. |
| 20 | 0502900 | Oil filter | This part replaces 0173231. |
| 21 | 3852609 | Retainer, oil drain | This part replaces 0912734. |
| 22 | 0122845 | Washer, eyelet to o ring | |
| 23 | 0912783 | Washer, fitting | |
| 24 | 0913364 | Fitting, oil drain | |
| 25 | 0303067 | "o" ring, driveshaft | |
| 26 | 3853969 | Oil cooler | This part replaces 0986373. |
| 27 | 0913558 | Camp, hoses to cyl. head, stbd. | |
| 28 | 0915778 | Hose, oil cooler to oil cooler | |
| 29 | 0912627 | Clamp | |
| 30 | 3853005 | Retainer, oil pump shaft | This part replaces 0914127. |
| 31 | 3852599 | Stud, oil cooler to engine | This part replaces 0912549. |
| 32 | 0306405 | Washer, c c stud nut | |
| 33 | 0986886 | Tube, oil drain | |
| 34 | 0987759 | Oil level gauge | |
| 35 | 3852823 | Gasket, oil pan | This part replaces 0913763. |
| 36 | 3853798 | Oil pan | This part replaces 0982520. |
| 37 | 3853908 | Oil pump assy. | This part replaces 0986099. |
| 38 | 3853267 | Gasket, oil screen | This part replaces 0914554. |
| 39 | 3853032 | Screw, pickup tube | This part replaces 0914161. |
| 40 | 3853032 | Screw, pickup tube | This part replaces 0914161. |
| 41 | 3853104 | Oil pickup tube | This part replaces 0914234. |
| 42 | 3853033 | Screw, oil pan | This part replaces 0914163. |
| 43 | 3853107 | Reinforcement, oil pan, port | This part replaces 0914237. |
| 44 | 0915784 | Hose, gimbal to oil cooler | |
| 45 | 3853557 | Screw, brace to alterntr bracket | This part replaces 0915790. |
