MERCURY 26802 O-Ring (.424 X .103) | PalmerPower
close
close
click to zoom in
  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Boat Repair Service

    Diagnostics, Repairs, and Maintenance

  • Fast Delivery

MERCURY 26802 "O" Ring, Shift Shaft Bushing

Write a Review
$4.00
SKU:
26802
Schematic Object Key:
17

MERCURY 26802 "O" Ring, Shift Shaft Bushing

$4.00

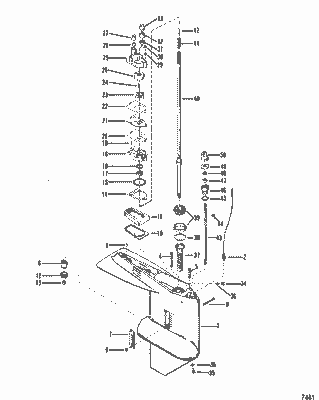

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 26802 "O" Ring, Shift Shaft Bushing

Schematic Object Key : 17

Product Description : MERCURY 26802 "O" Ring, Shift Shaft Bushing

Product Category : 75/ 2529895 THRU 3274632/ Gear Housing Assembly, Complete (Page 1); Alpha_Brands/SHOP BY BRANDS/Mercury

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
- GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) 2643A32
- GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) 2643A33
- GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) 2643A32
- GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) 2643A33
- GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) 4407A 4
- GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) 4407A 5
1 GEAR HOUSING ASSEMBLY 2643A 9
1 GEAR HOUSING ASSEMBLY 4407A 1
2 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3-7/16") 58138
3 STUD, WATER PUMP HOUSING TO GEAR HOUSING (2-3/4") 58136
4 BEARING, ROLLER - DRIVE SHAFT 22756
5 PIN, DOWEL - LOCATING 20032
6 SEAL, RUBBER - WATER INTAKE TUBE 33613
7 WASHER, NYLON - INTAKE TUBE SEAL 86215
8 SCREEN, WATER INTAKE 33425
9 SCREW, WATER INTAKE SCREEN TO GEAR HOUSING 28642
10 SCREW, GREASE FILLER HOLE 79953Q04
11 WASHER, GREASE FILLER HOSE SCREW 191833
12 WASHER, GREASE VENT HOLE SCREW 19643
13 SCREW, GREASE VENT HOLE 28653
14 SHAFT ASSEMBLY, SHIFT (SHORT SHAFT) 54640A1
14 SHAFT ASSEMBLY, SHIFT (LONG SHAFT) 54641A1
14 SHAFT ASSEMBLY, SHIFT (SHORT SHAFT) 54640A 1
14 SHAFT ASSEMBLY, SHIFT (LONG SHAFT) 54641A 1
15 RING, RETAINING - SHIFT SHAFT 30899
15 RING, RETAINING - SHIFT SHAFT 22899
16 BUSHING ASSEMBLY, SHIFT SHAFT 30676A 1
17 "O" RING, SHIFT SHAFT BUSHING 26802
18 OIL SEAL, SHIFT SHAFT BUSHING 30696
19 SCREW, SHIFT SHAFT BUSHING RETAINER 39149
20 GEAR, PINION 98696
21 TAB WASHER, PINION GEAR TO DRIVE SHAFT SCREW 30377
22 SCREW, PINION GEAR TO DRIVE SHAFT 30376
23 DRIVE SHAFT (SHORT SHAFT) 39078
23 DRIVE SHAFT (LONG SHAFT) 39077
24 SHIM ASSEMBLY, BALL BEARING TO GEAR HOUSING (.002-3-5-10) 30527A 1
25 BEARING, BALL - DRIVE SHAFT 33076
26 RING, RETAINING - BALL BEARING TO DRIVE SHAFT 30523
27 SHIM ASSEMBLY, BALL BEARING TO WATER PUMP (.002-3-5-10) 30527A 1
28 WATER PUMP HOUSING ASSEMBLY 46893A 3
29 "O" RING, WATER PUMP HOUSING 29439
30 OIL SEAL, WATER PUMP HOUSING 30900T
31 SEAL, WATER INTAKE TUBE 33613
32 TUBE, WATER INTAKE 34293
33 INSERT, WATER PUMP HOUSING 70977T
34 PIN, IMPELLER DRIVE 8M0032835
34 KEY, IMPELLER DRIVE 8M0032835
35 IMPELLER, WATER PUMP 89981
36 PLATE, FACE - WATER PUMP HOUSING TO WATER PUMP COVER 46895
37 WATER PUMP COVER ASSEMBLY 93224A1
38 SEAL, WATER PUMP COVER 36558
39 WASHER, NYLON - WATER PUMP COVER 13127
40 OIL SEAL, WATER PUMP COVER 30913
41 WASHER, WATER PUMP HOUSING AND COVER STUDS 20533
42 NUT, WATER PUMP HOUSING AND COVER STUDS 826709109
43 RING, RUBBER - CENTIFUGAL SLINGER (DRIVE SHAFT) 30526
44 SLEEVE, GUIDE - WATER INLET TUBE 31792T
45 "O" RING, UPPER - DRIVE SHAFT 48171
- GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) 2643A32
- GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) 2643A33
- GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) 2643A32
- GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) 2643A33
- GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) 4407A 4
- GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) 4407A 5
1 GEAR HOUSING ASSEMBLY 2643A 9
1 GEAR HOUSING ASSEMBLY 4407A 1
2 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3-7/16") 58138
3 STUD, WATER PUMP HOUSING TO GEAR HOUSING (2-3/4") 58136
4 BEARING, ROLLER - DRIVE SHAFT 22756
5 PIN, DOWEL - LOCATING 20032
6 SEAL, RUBBER - WATER INTAKE TUBE 33613
7 WASHER, NYLON - INTAKE TUBE SEAL 86215
8 SCREEN, WATER INTAKE 33425
9 SCREW, WATER INTAKE SCREEN TO GEAR HOUSING 28642
10 SCREW, GREASE FILLER HOLE 79953Q04
11 WASHER, GREASE FILLER HOSE SCREW 191833
12 WASHER, GREASE VENT HOLE SCREW 19643
13 SCREW, GREASE VENT HOLE 28653
14 SHAFT ASSEMBLY, SHIFT (SHORT SHAFT) 54640A1
14 SHAFT ASSEMBLY, SHIFT (LONG SHAFT) 54641A1
14 SHAFT ASSEMBLY, SHIFT (SHORT SHAFT) 54640A 1
14 SHAFT ASSEMBLY, SHIFT (LONG SHAFT) 54641A 1
15 RING, RETAINING - SHIFT SHAFT 30899
15 RING, RETAINING - SHIFT SHAFT 22899
16 BUSHING ASSEMBLY, SHIFT SHAFT 30676A 1
17 "O" RING, SHIFT SHAFT BUSHING 26802
18 OIL SEAL, SHIFT SHAFT BUSHING 30696
19 SCREW, SHIFT SHAFT BUSHING RETAINER 39149
20 GEAR, PINION 98696
21 TAB WASHER, PINION GEAR TO DRIVE SHAFT SCREW 30377
22 SCREW, PINION GEAR TO DRIVE SHAFT 30376
23 DRIVE SHAFT (SHORT SHAFT) 39078
23 DRIVE SHAFT (LONG SHAFT) 39077
24 SHIM ASSEMBLY, BALL BEARING TO GEAR HOUSING (.002-3-5-10) 30527A 1
25 BEARING, BALL - DRIVE SHAFT 33076
26 RING, RETAINING - BALL BEARING TO DRIVE SHAFT 30523
27 SHIM ASSEMBLY, BALL BEARING TO WATER PUMP (.002-3-5-10) 30527A 1
28 WATER PUMP HOUSING ASSEMBLY 46893A 3
29 "O" RING, WATER PUMP HOUSING 29439
30 OIL SEAL, WATER PUMP HOUSING 30900T
31 SEAL, WATER INTAKE TUBE 33613
32 TUBE, WATER INTAKE 34293
33 INSERT, WATER PUMP HOUSING 70977T
34 PIN, IMPELLER DRIVE 8M0032835
34 KEY, IMPELLER DRIVE 8M0032835
35 IMPELLER, WATER PUMP 89981
36 PLATE, FACE - WATER PUMP HOUSING TO WATER PUMP COVER 46895
37 WATER PUMP COVER ASSEMBLY 93224A1
38 SEAL, WATER PUMP COVER 36558
39 WASHER, NYLON - WATER PUMP COVER 13127
40 OIL SEAL, WATER PUMP COVER 30913
41 WASHER, WATER PUMP HOUSING AND COVER STUDS 20533
42 NUT, WATER PUMP HOUSING AND COVER STUDS 826709109
43 RING, RUBBER - CENTIFUGAL SLINGER (DRIVE SHAFT) 30526
44 SLEEVE, GUIDE - WATER INLET TUBE 31792T
45 "O" RING, UPPER - DRIVE SHAFT 48171



Schematic Object Key : 3

Product Description : O-RING, (.424 x .103)

Title : Mercruiser race Model 525 EFI

Category: Gas; Others; 525 EFI; 0M962886 & Up; Transmission(Shaft And Gears)(NXT1)


Quick Overview

O RING @5 25

SKU : 26802

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061132375
