MERCURY 55738A 1 Switch, Push Button - Control Panel

Write a Review
$25.67
SKU:
55738A1

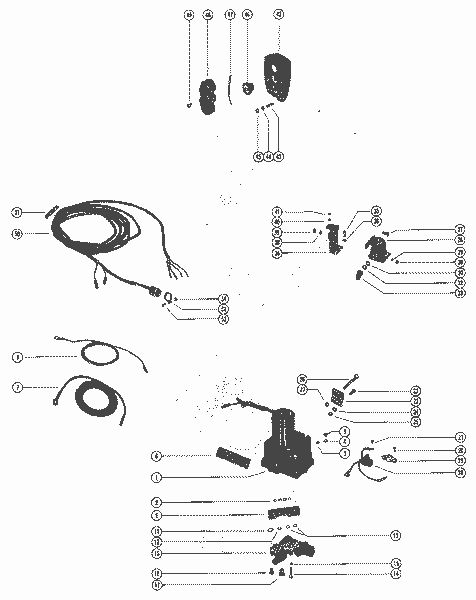

Schematic Object Key:
46

MERCURY 55738A 1 Switch, Push Button - Control Panel

$25.67

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 55738A 1 Switch, Push Button - Control Panel

Schematic Object Key : 46

Product Description : MERCURY 55738A 1 Switch, Push Button - Control Panel

Product Category : 1400/ 3293234 THRU 3502805/ Hydraulic Pump And Control Panel

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
1 HYDRAULIC PUMP ASSEMBLY 45060A 7
2 'O" RING, HYDRAULIC PUMP TO MAINFOLD PLATE 48171
3 SCREW, FILLER - HYDRAULIC PUMP 79953Q04
4 WASHER, SEALING - HYDRAULIC PUMP FILLER SCREW 191833
5 SCREW, VENT - HYDRAULIC PUMP 62269
6 DECAL, INSTRUCTION - HYDRAULIC PUMP 55901
7 BATTERY LEAD (POSITIVE) 32979
8 BATTERY LEAD (NEGATIVE) 32988
9 PLATE, MANIFOLD 45336
10 CONTROL VALVE ASSEMBLY 45197A 2
-- "O" RING, HYDRAULIC PUMP TO MANIFOLD PLATE 48171
11 "O" RING, CONTROL VALVE TO MANIFOLD PLATE (3/4" O.D.) 45254
12 "O" RING, CONTROL VALVE TO MANIFOLD PLATE (1/2" O.D.) 48171
13 "O" RING, CONTROL VALVE TO MANIFOLD PLATE (5/8" O.D.) 45253
14 SCREW, CONTROL VALVE AND MANIFOLD PLATE TO HYDRAULIC PUMP 56500
15 LOCKWASHER, CONTROL VALVE AND MANIFOLD PLATE SCREW 26992
16 PLUG, CONTROL VALVE (3/8-24") 38609
17 PLUG, CONTROL VALVE (1/2-20") 46008
18 CONNECTOR AND HARNESS 45325A1
19 TERMINAL BLOCK, HYDRAULIC PUMP 45559
20 SCREW, TERMINAL BLOCK TO HYDRAULIC PUMP (1/2") 35519
21 SCREW, HARNESS LEADS TO TERMINAL BLOCK (3/8") 62568
22 BRACKET, MOUNTING - HYDRAULIC PUMP TO BOAT 45377T
23 SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (1") 35386
24 LOCKWASHER, MOUNTING BRACKET SCREW 39107
25 NUT, MOUNTING BRACKET SCREW 21908
26 BOLT, HYDRAULIC PUMP TO BOAT (3 1/4") 68298
27 NUT, HYDRAULIC PUMP BOLT 35304
28 STARTER SOLENOID 25661T1
29 LOCKWASHER, STARTER SOLENOID TERMINAL (#10) 26996
30 NUT, STARTER SOLENOID TERMINAL (#10) 68219
31 LOCKWASHER, STARTER SOLENOID TERMINAL (5/16") 26993
32 NUT, STARTER SOLENOID TERMINAL (5/16") 22053
33 BOOT, RUBBER - STARTER SOLENOID TERMINAL 46265
34 BRACKET, MOUNTING - STARTER SOLENOID 74407T
35 SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (1/2") 21140
36 LOCKWASHER, MOUNTING BRACKET SCREW 26992
37 SCREW, STARTER SOLENOID TO MOUNTING BRACKET (5/8") 34290
38 LOCKWASHER, STARTER SOLENOID SCREW 26992
39 NUT, STARTER SOLENOID SCREW 21825
40 LOCKWASHER, HYDRAULIC PUMP THRU BOLT 27660
41 NUT, MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT 68219
-- CONTROL PANEL ASSEMBLY, COMPLETE 55642A13
42 PANEL, CONTROL 55642A17
43 STUD, CONTROL PANEL TO BOAT (2") 55422
44 WASHER, CONTROL PANEL STUD 24676
45 NUT, CONTROL PANEL STUD 27164
46 SWITCH, PUSH BUTTON - CONTROL PANEL 55738A 1
47 JUMPER WIRE, PUSH BUTTON SWITCH (RED - 3-1/4") 48078
47 JUMPER WIRE, PUSH BUTTON SWITCH (PURPLE - 3") 53107
48 RETAINER, PUSH BUTTON SWITCH 55641
49 SCREW, SWITCH RETAINER TO CONTROL PANEL (1/2") 62568
50 HARNESS, CONTROL PANEL (20 FEET) 87394A20
51 BINDER, NYLON - CONTROL PANEL HARNESS 33865
52 CLAMP, HARNESS FASTENING 95814
53 SCREW, HARNESS FASTENING CLAPM (1/2") 29227
54 NUT, HARNESS FASTENING SCREW 34388
1 HYDRAULIC PUMP ASSEMBLY 45060A 7
2 'O" RING, HYDRAULIC PUMP TO MAINFOLD PLATE 48171
3 SCREW, FILLER - HYDRAULIC PUMP 79953Q04
4 WASHER, SEALING - HYDRAULIC PUMP FILLER SCREW 191833
5 SCREW, VENT - HYDRAULIC PUMP 62269
6 DECAL, INSTRUCTION - HYDRAULIC PUMP 55901
7 BATTERY LEAD (POSITIVE) 32979
8 BATTERY LEAD (NEGATIVE) 32988
9 PLATE, MANIFOLD 45336
10 CONTROL VALVE ASSEMBLY 45197A 2
-- "O" RING, HYDRAULIC PUMP TO MANIFOLD PLATE 48171
11 "O" RING, CONTROL VALVE TO MANIFOLD PLATE (3/4" O.D.) 45254
12 "O" RING, CONTROL VALVE TO MANIFOLD PLATE (1/2" O.D.) 48171
13 "O" RING, CONTROL VALVE TO MANIFOLD PLATE (5/8" O.D.) 45253
14 SCREW, CONTROL VALVE AND MANIFOLD PLATE TO HYDRAULIC PUMP 56500
15 LOCKWASHER, CONTROL VALVE AND MANIFOLD PLATE SCREW 26992
16 PLUG, CONTROL VALVE (3/8-24") 38609
17 PLUG, CONTROL VALVE (1/2-20") 46008
18 CONNECTOR AND HARNESS 45325A1
19 TERMINAL BLOCK, HYDRAULIC PUMP 45559
20 SCREW, TERMINAL BLOCK TO HYDRAULIC PUMP (1/2") 35519
21 SCREW, HARNESS LEADS TO TERMINAL BLOCK (3/8") 62568
22 BRACKET, MOUNTING - HYDRAULIC PUMP TO BOAT 45377T
23 SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (1") 35386
24 LOCKWASHER, MOUNTING BRACKET SCREW 39107
25 NUT, MOUNTING BRACKET SCREW 21908
26 BOLT, HYDRAULIC PUMP TO BOAT (3 1/4") 68298
27 NUT, HYDRAULIC PUMP BOLT 35304
28 STARTER SOLENOID 25661T1
29 LOCKWASHER, STARTER SOLENOID TERMINAL (#10) 26996
30 NUT, STARTER SOLENOID TERMINAL (#10) 68219
31 LOCKWASHER, STARTER SOLENOID TERMINAL (5/16") 26993
32 NUT, STARTER SOLENOID TERMINAL (5/16") 22053
33 BOOT, RUBBER - STARTER SOLENOID TERMINAL 46265
34 BRACKET, MOUNTING - STARTER SOLENOID 74407T
35 SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (1/2") 21140
36 LOCKWASHER, MOUNTING BRACKET SCREW 26992
37 SCREW, STARTER SOLENOID TO MOUNTING BRACKET (5/8") 34290
38 LOCKWASHER, STARTER SOLENOID SCREW 26992
39 NUT, STARTER SOLENOID SCREW 21825
40 LOCKWASHER, HYDRAULIC PUMP THRU BOLT 27660
41 NUT, MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT 68219
-- CONTROL PANEL ASSEMBLY, COMPLETE 55642A13
42 PANEL, CONTROL 55642A17
43 STUD, CONTROL PANEL TO BOAT (2") 55422
44 WASHER, CONTROL PANEL STUD 24676
45 NUT, CONTROL PANEL STUD 27164
46 SWITCH, PUSH BUTTON - CONTROL PANEL 55738A 1
47 JUMPER WIRE, PUSH BUTTON SWITCH (RED - 3-1/4") 48078
47 JUMPER WIRE, PUSH BUTTON SWITCH (PURPLE - 3") 53107
48 RETAINER, PUSH BUTTON SWITCH 55641
49 SCREW, SWITCH RETAINER TO CONTROL PANEL (1/2") 62568
50 HARNESS, CONTROL PANEL (20 FEET) 87394A20
51 BINDER, NYLON - CONTROL PANEL HARNESS 33865
52 CLAMP, HARNESS FASTENING 95814
53 SCREW, HARNESS FASTENING CLAPM (1/2") 29227
54 NUT, HARNESS FASTENING SCREW 34388



Quick Overview

SWITCH ASSY

SKU : 55738A1

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061160170
