MERCURY 77344A45 Propeller Assembly, Complete (2 Blade - Aluminum)

Write a Review
$233.12
SKU:
77344A45
Schematic Object Key:
80

MERCURY 77344A45 Propeller Assembly, Complete (2 Blade - Aluminum)

$233.12

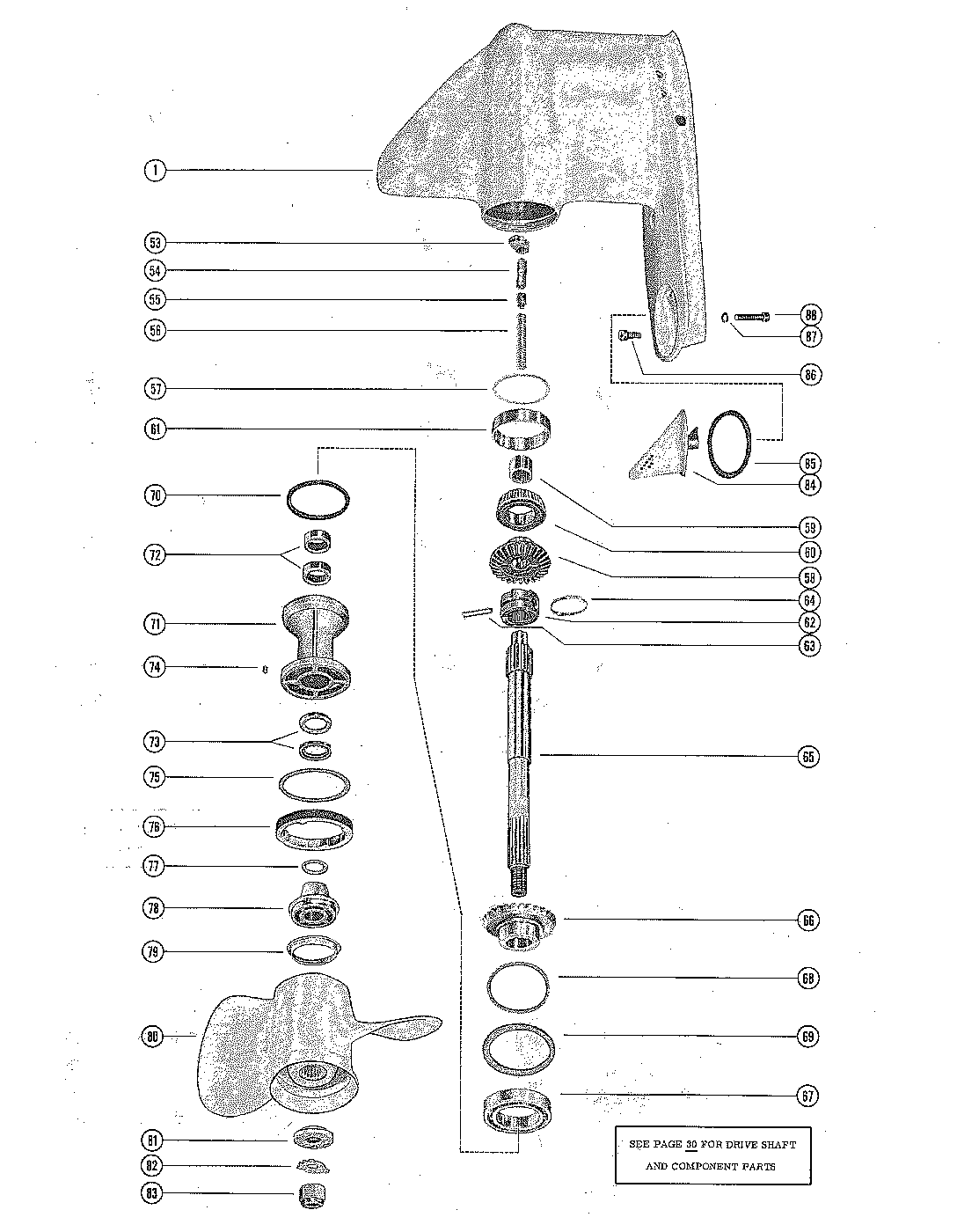

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 77344A45 Propeller Assembly, Complete (2 Blade - Aluminum)

Schematic Object Key : 80

Product Description : MERCURY 77344A45 Propeller Assembly, Complete (2 Blade - Aluminum)

Product Category : 700 (6 CYL.)/ 1413611 THRU 1566239/Gear Hous Assy,Comp.(Prop. Shaft\Comp Parts Merc

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
- GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) - SEE NOTE 2022A7
- GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) - SEE NOTE 2022A6
1 GEAR HOUSING ASSEMBLY (SEE PAGE 30 FOR PARTS BREAKDOWN) 2041A2
53 CAM, SHIFT 760394
54 FOLLOWER, CAM 30625
55 SLIDE, CROSS PIN 30624
56 SPRING, COMPRESSION - CAM FOLLOWER 30622
57 SHIM, BEARING OUTER RACE TO GEAR HOUSING 30923A 1
-- FORWARD GEAR ASSEMBLY, COMPLETE 30938A2
58 FORWARD GEAR ASSEMBLY 30938A2
59 BEARING, ROLLER - FORWARD GEAR 30895T
60 TAPERED ROLLER BEARING ASSEMBLY 30894A 1
61 CUP, OUTER - TAPER ROLLER BEARING 31092
62 RATCHET, SLIDING CLUTCH 30941
63 PIN, CROSS - RATCHET TO PROPELLER SHAFT 8M0100263
64 SPRING, RETAINING - CROSS PIN 30893
65 SHAFT, PROPELLER 47900A2
-- REVERSE GEAR ASSEMBLY, COMPLETE 30937
66 REVERSE GEAR ASSEMBLY 30937
67 BEARING, BALL - REVERSE GEAR 30548
68 SHIM, THRUST WASHER TO GEAR HOUSING 29955A 1
69 WASHER, THRUST - BEARING CARRIER TO GEAR HOUSING 71143A1
70 "O" RING, BEARING CARRIER 29976
71 BEARING CARRIER ASSEMBLY (4 45/64" OVERALL LENGTH) 30579A 1
72 BEARING, ROLLER - BEARING CARRIER 30616
73 OIL SEAL, BEARING CARRIER 76868
74 KEY, LOCATING - BEARING CARRIER 30281
75 WASHER, GEAR HOUSING COVER 29957
76 COVER, GEAR HOUSING 52699
77 WASHER, THRUST - BEARING CARRIER 31013
78 THRUST HUB AND WASHER ASSEMBLY 30581A 1
79 WASHER, CUPPED - THRUST HUB 29590
80 PROPELLER ASSEMBLY, COMPLETE (2 BLADE - ALUMINUM) 77344A45
81 WASHER, SPLINED - PROPELLER SHAFT 30967
82 TAB WASHER, PROPELLER NUT 30963
83 NUT, PROPELLER 29594
84 WATER PICKUP, GEAR HOUSING 31237
85 GASKET, WATER PICKUP TO GEAR HOUSING 30557
86 SCREW, WATER PICKUP TO GEAR HOUSING (2-1/4") 30559
87 LOCKWASHER, WATER PICKUP FASTENING SCREW 26993
88 SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1") 30206
- GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) - SEE NOTE 2022A7
- GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) - SEE NOTE 2022A6
1 GEAR HOUSING ASSEMBLY (SEE PAGE 30 FOR PARTS BREAKDOWN) 2041A2
53 CAM, SHIFT 760394
54 FOLLOWER, CAM 30625
55 SLIDE, CROSS PIN 30624
56 SPRING, COMPRESSION - CAM FOLLOWER 30622
57 SHIM, BEARING OUTER RACE TO GEAR HOUSING 30923A 1
-- FORWARD GEAR ASSEMBLY, COMPLETE 30938A2
58 FORWARD GEAR ASSEMBLY 30938A2
59 BEARING, ROLLER - FORWARD GEAR 30895T
60 TAPERED ROLLER BEARING ASSEMBLY 30894A 1
61 CUP, OUTER - TAPER ROLLER BEARING 31092
62 RATCHET, SLIDING CLUTCH 30941
63 PIN, CROSS - RATCHET TO PROPELLER SHAFT 8M0100263
64 SPRING, RETAINING - CROSS PIN 30893
65 SHAFT, PROPELLER 47900A2
-- REVERSE GEAR ASSEMBLY, COMPLETE 30937
66 REVERSE GEAR ASSEMBLY 30937
67 BEARING, BALL - REVERSE GEAR 30548
68 SHIM, THRUST WASHER TO GEAR HOUSING 29955A 1
69 WASHER, THRUST - BEARING CARRIER TO GEAR HOUSING 71143A1
70 "O" RING, BEARING CARRIER 29976
71 BEARING CARRIER ASSEMBLY (4 45/64" OVERALL LENGTH) 30579A 1
72 BEARING, ROLLER - BEARING CARRIER 30616
73 OIL SEAL, BEARING CARRIER 76868
74 KEY, LOCATING - BEARING CARRIER 30281
75 WASHER, GEAR HOUSING COVER 29957
76 COVER, GEAR HOUSING 52699
77 WASHER, THRUST - BEARING CARRIER 31013
78 THRUST HUB AND WASHER ASSEMBLY 30581A 1
79 WASHER, CUPPED - THRUST HUB 29590
80 PROPELLER ASSEMBLY, COMPLETE (2 BLADE - ALUMINUM) 77344A45
81 WASHER, SPLINED - PROPELLER SHAFT 30967
82 TAB WASHER, PROPELLER NUT 30963
83 NUT, PROPELLER 29594
84 WATER PICKUP, GEAR HOUSING 31237
85 GASKET, WATER PICKUP TO GEAR HOUSING 30557
86 SCREW, WATER PICKUP TO GEAR HOUSING (2-1/4") 30559
87 LOCKWASHER, WATER PICKUP FASTENING SCREW 26993
88 SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1") 30206



Quick Overview

BLMX 13.3X17 48

SKU : 77344A45

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061018471
