MERCURY 8236241 Bowl-Fuel | PalmerPower
close
close
click to zoom in
  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Boat Repair Service

    Diagnostics, Repairs, and Maintenance

  • Fast Delivery

MERCURY 823624 1 Bowl, Fuel

Write a Review
$30.67
SKU:
8236241
Schematic Object Key:
20

MERCURY 823624 1 Bowl, Fuel

$30.67

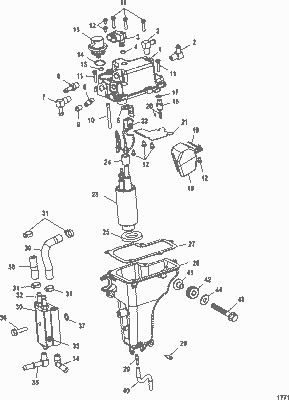

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 823624 1 Bowl, Fuel

Schematic Object Key : 20

Product Description : MERCURY 823624 1 Bowl, Fuel

Product Category : V-140 (INTERNATIONAL)/ 0T178500 THRU 1B226999/ Carburetor

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
1 CARBURETOR, Top 828272T88
1 CARBURETOR, Center 828272T89
1 CARBURETOR, Bottom 828272T90
1 CARBURETOR, Top 828272T67
1 CARBURETOR, Center 828272T68
1 CARBURETOR, Bottom 828272T69
1 CARBURETOR, Top 828272T73
1 CARBURETOR, Center 828272T74
1 CARBURETOR, Bottom 828272T75
2 COVER 809743
3 GASKET 809758
4 SCREW 808739 1
5 GASKET 828292
6 JET, (.046), Idle Air Vent 815633046
6 JET, (.044), Idle Air Vent 810742
6 JET, (.054), Idle Air Vent 815633054
6 JET, .040, Idle Air Vent 7570
6 JET, (.048), Idle Air Vent 815633048
6 JET, (.044), Idle Air Vent 810742
6 JET, (.048), Idle Air Vent 815633048
6 JET, (.038), Idle Air Vent 815633038
6 JET, (.028), Idle Air Vent 815633028
6 JET, (.032), Idle Air Vent 3252
7 JET, (.086), Bowl Vent 5815
7 JET, (.082), Bowl Vent 3518
8 JET, (.038), Idle Air Vent 815633038
8 JET, (.036), Idle Air Vent 3026
8 JET, (.030), Idle Air Vent 810741
8 JET, (.044), Idle Air Vent 810742
8 JET, (.038), Idle Air Vent 815633038
8 JET, (.044), Idle Air Vent 810742
8 JET, (.038), Idle Air Vent 815633038
8 JET, (.028), Idle Air Vent 815633028
9 CAP, Limiter 810779
10 NOT SOLD SEPARATE, Idle Mixture Screw/Spring NSS
11 LEVER KIT 811352 3
12 SPACER 6031
13 NOT SOLD SEPARATE, Spring NSS
14 NOT SOLD SEPARATE, Gasket-Fuel Bowl NSS
15 FLOAT ASSEMBLY 810738
16 SHAFT, Float F10064
17 SCREW, (#6-32 x .187) 5902
18 VALVE SEAT KIT 811690 1
19 NOT SOLD SEPARATE, Gasket NSS
20 BOWL, Fuel 823623 1
20 BOWL, Fuel 823624 1
21 SCREW AND WASHER, (#8-32 x .750) 808612
22 PLUG KIT 811694
23 SEAL 802731
24 JET, (.072), Main Fuel 6207
24 JET, (.074), Main Fuel 3794
24 JET, (.078), Main Fuel 6680
24 JET, (.074), Main Fuel 3794
24 JET, (.080), Main Fuel 6201
24 JET, (.082), Main Fuel 3518
24 JET, (.078), Main Fuel 6680
24 JET, (.084), Main Fuel 3517
25 TEE FITTING 7900
26 ELBOW 7901
- REPAIR KIT, Carburetor 811691 3
- GASKET SET, Carburetor 810749 3
- GASKET SET, Engine, Cylinder head o-rings and seal not included 815791A00
1 CARBURETOR, Top 828272T88
1 CARBURETOR, Center 828272T89
1 CARBURETOR, Bottom 828272T90
1 CARBURETOR, Top 828272T67
1 CARBURETOR, Center 828272T68
1 CARBURETOR, Bottom 828272T69
1 CARBURETOR, Top 828272T73
1 CARBURETOR, Center 828272T74
1 CARBURETOR, Bottom 828272T75
2 COVER 809743
3 GASKET 809758
4 SCREW 808739 1
5 GASKET 828292
6 JET, (.046), Idle Air Vent 815633046
6 JET, (.044), Idle Air Vent 810742
6 JET, (.054), Idle Air Vent 815633054
6 JET, .040, Idle Air Vent 7570
6 JET, (.048), Idle Air Vent 815633048
6 JET, (.044), Idle Air Vent 810742
6 JET, (.048), Idle Air Vent 815633048
6 JET, (.038), Idle Air Vent 815633038
6 JET, (.028), Idle Air Vent 815633028
6 JET, (.032), Idle Air Vent 3252
7 JET, (.086), Bowl Vent 5815
7 JET, (.082), Bowl Vent 3518
8 JET, (.038), Idle Air Vent 815633038
8 JET, (.036), Idle Air Vent 3026
8 JET, (.030), Idle Air Vent 810741
8 JET, (.044), Idle Air Vent 810742
8 JET, (.038), Idle Air Vent 815633038
8 JET, (.044), Idle Air Vent 810742
8 JET, (.038), Idle Air Vent 815633038
8 JET, (.028), Idle Air Vent 815633028
9 CAP, Limiter 810779
10 NOT SOLD SEPARATE, Idle Mixture Screw/Spring NSS
11 LEVER KIT 811352 3
12 SPACER 6031
13 NOT SOLD SEPARATE, Spring NSS
14 NOT SOLD SEPARATE, Gasket-Fuel Bowl NSS
15 FLOAT ASSEMBLY 810738
16 SHAFT, Float F10064
17 SCREW, (#6-32 x .187) 5902
18 VALVE SEAT KIT 811690 1
19 NOT SOLD SEPARATE, Gasket NSS
20 BOWL, Fuel 823623 1
20 BOWL, Fuel 823624 1
21 SCREW AND WASHER, (#8-32 x .750) 808612
22 PLUG KIT 811694
23 SEAL 802731
24 JET, (.072), Main Fuel 6207
24 JET, (.074), Main Fuel 3794
24 JET, (.078), Main Fuel 6680
24 JET, (.074), Main Fuel 3794
24 JET, (.080), Main Fuel 6201
24 JET, (.082), Main Fuel 3518
24 JET, (.078), Main Fuel 6680
24 JET, (.084), Main Fuel 3517
25 TEE FITTING 7900
26 ELBOW 7901
- REPAIR KIT, Carburetor 811691 3
- GASKET SET, Carburetor 810749 3
- GASKET SET, Engine, Cylinder head o-rings and seal not included 815791A00



Quick Overview

BOWL-FUEL 1395

SKU : 8236241

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061342996
