MERCURY 884337A02 Gear Assembly, Reverse

Write a Review
$526.86
SKU:
884337A02
Schematic Object Key:
8

MERCURY 884337A02 Gear Assembly, Reverse

$526.86

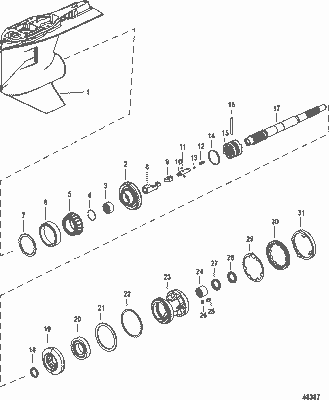

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 884337A02 Gear Assembly, Reverse

Schematic Object Key : 8

Product Description : MERCURY 884337A02 Gear Assembly, Reverse

Product Category : 200 VERADO (4-STROKE)(4 CYL.)/ 0P514869 & Up/Gear Housing, Prop Shaft-Counter Rotation 2B02681

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
- GEAR HOUSING ASSEMBLY, Complete 880686T28
- GEAR HOUSING ASSEMBLY, Complete 880686T25
1 GEAR HOUSING ASSEMBLY, Basic, Used With 5/16 Inch Shift Crank 880687T01
1 GEAR HOUSING ASSEMBLY, Basic, Used With 1/4 Inch Shift Crank 8M0056631
2 NOT SOLD SEPARATE, Plug NSS
3 CRANK, Shifter, 5/16 Pivot Pin 896847A01
3 CRANK, Shifter, 1/4 Pivot Pin 8M0046215
4 SPOOL ASSEMBLY 19755T 7
5 NOT SOLD SEPARATE, Spool NSS
6 COTTER PIN 46950 1
7 NOT SOLD SEPARATE, Sleeve Adjusting NSS
8 GEAR ASSEMBLY, Reverse 884337A02
9 BEARING ASSEMBLY, Roller 884323T01
10 NOT SOLD SEPARATE, Cup NSS
11 RING, Retaining 8M0051043
12 THRUST WASHER 8M0053823
13 BEARING ASSEMBLY, Roller-Tappered 884325T01
14 NOT SOLD SEPARATE, Cup NSS
15 SHIM SET 884328A01
16 SPRING 30893
17 CLUTCH 880714T
18 PIN, Cross 8M0100263
19 PIN, Detent 828356
20 PROPELLER SHAFT 888530
21 GEAR ASSEMBLY, Forward 884335A02
22 THRUST RING 880699
23 BEARING, Thrust 815480
24 CARRIER ASSEMBLY, Bearing 880696A10
25 O-RING, (3.850 x .210) 896524
26 BEARING ASSEMBLY, Needle Rollers 814653T
27 ADAPTOR, Bearing 880728
28 SHIM SET 47397A 1
29 SHIM SET 891936A01
30 BEARING ASSEMBLY, Tapered 8M0148319
31 NOT SOLD SEPARATE, Cup NSS
32 SEAL, Oil 888483
33 SEAL, Oil 888483
34 SCREW/SEAL KIT 880717A01
35 SEAL 830749
36 ADAPTOR 8M0053183
37 SPACER, Thrust 891919001
38 KEYED WASHER 880697
39 RETAINER 8M2011027
40 NOT SOLD SEPARATE, Decal-Counter Rotation NSS
41 DRIVE SLEEVE ASSEMBLY 896233A01
42 ADAPTOR 8M0061986
43 PROP NUT KIT, (.750-16) 52707T 1
43 PROP NUT KIT, (.750-16) 52707Q 1
- SEAL KIT, Gear Housing 830749A01
- GEAR HOUSING ASSEMBLY, Complete 880686T28
- GEAR HOUSING ASSEMBLY, Complete 880686T25
1 GEAR HOUSING ASSEMBLY, Basic, Used With 5/16 Inch Shift Crank 880687T01
1 GEAR HOUSING ASSEMBLY, Basic, Used With 1/4 Inch Shift Crank 8M0056631
2 NOT SOLD SEPARATE, Plug NSS
3 CRANK, Shifter, 5/16 Pivot Pin 896847A01
3 CRANK, Shifter, 1/4 Pivot Pin 8M0046215
4 SPOOL ASSEMBLY 19755T 7
5 NOT SOLD SEPARATE, Spool NSS
6 COTTER PIN 46950 1
7 NOT SOLD SEPARATE, Sleeve Adjusting NSS
8 GEAR ASSEMBLY, Reverse 884337A02
9 BEARING ASSEMBLY, Roller 884323T01
10 NOT SOLD SEPARATE, Cup NSS
11 RING, Retaining 8M0051043
12 THRUST WASHER 8M0053823
13 BEARING ASSEMBLY, Roller-Tappered 884325T01
14 NOT SOLD SEPARATE, Cup NSS
15 SHIM SET 884328A01
16 SPRING 30893
17 CLUTCH 880714T
18 PIN, Cross 8M0100263
19 PIN, Detent 828356
20 PROPELLER SHAFT 888530
21 GEAR ASSEMBLY, Forward 884335A02
22 THRUST RING 880699
23 BEARING, Thrust 815480
24 CARRIER ASSEMBLY, Bearing 880696A10
25 O-RING, (3.850 x .210) 896524
26 BEARING ASSEMBLY, Needle Rollers 814653T
27 ADAPTOR, Bearing 880728
28 SHIM SET 47397A 1
29 SHIM SET 891936A01
30 BEARING ASSEMBLY, Tapered 8M0148319
31 NOT SOLD SEPARATE, Cup NSS
32 SEAL, Oil 888483
33 SEAL, Oil 888483
34 SCREW/SEAL KIT 880717A01
35 SEAL 830749
36 ADAPTOR 8M0053183
37 SPACER, Thrust 891919001
38 KEYED WASHER 880697
39 RETAINER 8M2011027
40 NOT SOLD SEPARATE, Decal-Counter Rotation NSS
41 DRIVE SLEEVE ASSEMBLY 896233A01
42 ADAPTOR 8M0061986
43 PROP NUT KIT, (.750-16) 52707T 1
43 PROP NUT KIT, (.750-16) 52707Q 1
- SEAL KIT, Gear Housing 830749A01



Quick Overview

GEAR KIT-REVERSE 43

SKU : 884337A02

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061670891
