MERCURY 8M0046693 Thermostat Assembly

Write a Review
$119.58
SKU:
8M0046693
Schematic Object Key:
23

MERCURY 8M0046693 Thermostat Assembly

$119.58

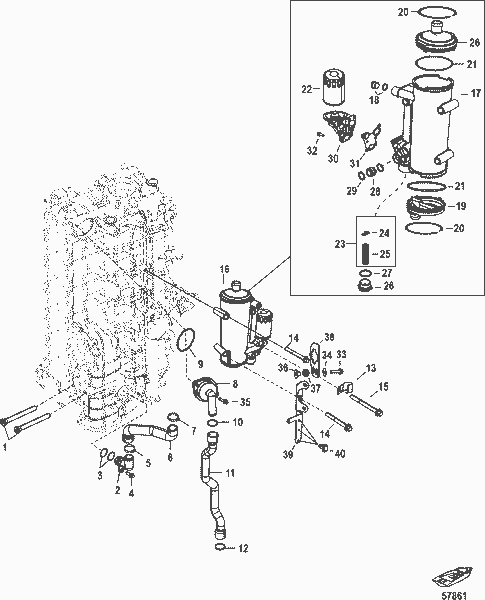

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 8M0046693 Thermostat Assembly

Schematic Object Key : 23

Product Description : MERCURY 8M0046693 Thermostat Assembly

Product Category : 400 VERADO (4-Stroke)(6 CYL.)/ 2B141124 & Up/ Starboard Cylinder Block\Oil Cooler

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
1 DEFLECTOR ASSEMBLY, Water 892404A05
2 FITTING ASSEMBLY 885518A02
3 O-RING 62701
4 SCREW, (M6 x 16 MM) Stainless Steel 8M0103805
5 CLAMP, (38.1 mm) 888988011
6 HOSE, Cyl Block to IOM 888930003
7 CLAMP, (34.6 mm) 888988008
8 THERMOSTAT ASSEMBLY 892864T04
9 O-RING 8M0005958
10 CLAMP, (36.1 mm) 888988001
11 HOSE, Thermostat 892865
12 CLAMP, (42.5 mm) 888988007
13 J CLAMP 78945
14 SCREW, (M10 x 85) 8M0103824
15 SCREW, (M10 x 105) 8M0103820
16 MODULE, Integrated Oil 8M0132390
17 NOT SOLD SEPARATE, Oil Cooler Housing NSS
18 PLUG, (18 mm) 891953
19 END CAP ASSEMBLY 8M0046698
20 RING, Retaining 8M0039464
21 O-RING 8M0039516
22 FILTER, Oil (Mercury Branded) 877769K01
23 THERMOSTAT ASSEMBLY 8M0046693
24 NOT SOLD SEPARATE, Thermostat Stop NSS
25 NOT SOLD SEPARATE, SPRING NSS
26 PLUG 8M0046697
27 NOT SOLD SEPARATE, O-RING NSS
28 ADAPTOR ASSEMBLY (Contains 2 Adaptors) 8M0046696
29 NOT SOLD SEPARATE, O-RING NSS
30 HOUSING ASSEMBLY 8M0046694
31 GASKET 8M0034568
32 SCREW, (M6 x 16 MM) Stainless Steel 8M0103805
33 SCREW, (M6 x 25 MM) 821291 25
34 WASHER, (.265 x .750 x .048) Stainless Steel 65567
35 SCREW, (M6 x 25 MM) Stainless Steel 8M0103807
36 BUSHING 822003
37 GROMMET 834985
38 BRACKET 8M0007908
- GASKET SET, Powerhead 880552A08
- LONG BLOCK ASSEMBLY 896966A06
1 DEFLECTOR ASSEMBLY, Water 892404A05
2 FITTING ASSEMBLY 885518A02
3 O-RING 62701
4 SCREW, (M6 x 16 MM) Stainless Steel 8M0103805
5 CLAMP, (38.1 mm) 888988011
6 HOSE, Cyl Block to IOM 888930003
7 CLAMP, (34.6 mm) 888988008
8 THERMOSTAT ASSEMBLY 892864T04
9 O-RING 8M0005958
10 CLAMP, (36.1 mm) 888988001
11 HOSE, Thermostat 892865
12 CLAMP, (42.5 mm) 888988007
13 J CLAMP 78945
14 SCREW, (M10 x 85) 8M0103824
15 SCREW, (M10 x 105) 8M0103820
16 MODULE, Integrated Oil 8M0132390
17 NOT SOLD SEPARATE, Oil Cooler Housing NSS
18 PLUG, (18 mm) 891953
19 END CAP ASSEMBLY 8M0046698
20 RING, Retaining 8M0039464
21 O-RING 8M0039516
22 FILTER, Oil (Mercury Branded) 877769K01
23 THERMOSTAT ASSEMBLY 8M0046693
24 NOT SOLD SEPARATE, Thermostat Stop NSS
25 NOT SOLD SEPARATE, SPRING NSS
26 PLUG 8M0046697
27 NOT SOLD SEPARATE, O-RING NSS
28 ADAPTOR ASSEMBLY (Contains 2 Adaptors) 8M0046696
29 NOT SOLD SEPARATE, O-RING NSS
30 HOUSING ASSEMBLY 8M0046694
31 GASKET 8M0034568
32 SCREW, (M6 x 16 MM) Stainless Steel 8M0103805
33 SCREW, (M6 x 25 MM) 821291 25
34 WASHER, (.265 x .750 x .048) Stainless Steel 65567
35 SCREW, (M6 x 25 MM) Stainless Steel 8M0103807
36 BUSHING 822003
37 GROMMET 834985
38 BRACKET 8M0007908
- GASKET SET, Powerhead 880552A08
- LONG BLOCK ASSEMBLY 896966A06



Quick Overview

THERMOSTAT

SKU : 8M0046693

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061880542
