MERCURY 8M0086569 Screw - Shoulder, (M8 X 1.25)

Write a Review
$13.10
SKU:
8M0086569
Schematic Object Key:
24

MERCURY 8M0086569 Screw - Shoulder, (M8 X 1.25)

$13.10

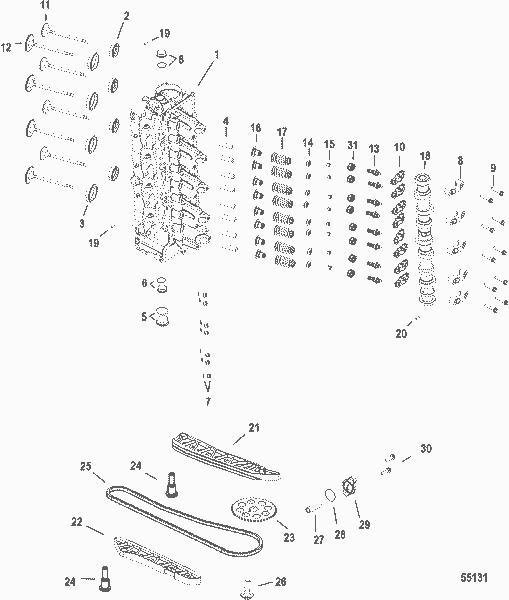

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 8M0086569 Screw - Shoulder, (M8 X 1.25)

Schematic Object Key : 24

Product Description : MERCURY 8M0086569 Screw - Shoulder, (M8 X 1.25)

Product Category : 75 EFI (4-STROKE)/ 2B095049 & Up/ Cylinder Head And Camshaft

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
- CYLINDER HEAD ASSEMBLY 8M0098627
- CYLINDER HEAD ASSEMBLY, 75,90 SeaPro 8M0098627
- CYLINDER HEAD ASSEMBLY 8M0121260
- CYLINDER HEAD ASSEMBLY, 115 SeaPro 8M0121260
1 CYLINDER HEAD ASSEMBLY, BARE 8M0091291
2 SEAT - EXHAUST VALVE 8M0056611
3 SEAT - INTAKE VALVE 8M0056610
4 GUIDE - VALVE 8M0054533
5 PLUG, (30 MM) 8M0087454
6 PLUG, (24 MM) 8M0087453
7 PLUG, (10 MM) 8M0087446
8 NOT SOLD SEPARATE NSS
9 BOLT, (M6 x 36 MM) 892454035
10 ROLLER FINGER FOLLOWER 8M6106000
11 VALVE - EXHAUST 8M0098633
11 VALVE, Exhaust, SeaPro 8M0098633
12 VALVE - INTAKE 8M0098632
12 VALVE, Intake, SeaPro 8M0098632
13 STUD, BALL END , (M9 X 1) 8M0073719
14 RETAINER - VALVE 8M0054536
15 KEY - VALVE 8M0054537
16 SEAL - VALVE STEM ASSEMBLY 8M6105000
17 SPRING - VALVE 8M6102000
18 CAMSHAFT ASSEMBLY 8M0098630
18 CAMSHAFT ASSEMBLY, 75,90 SeaPro 8M0098630
18 CAMSHAFT ASSEMBLY 8M0161588
18 CAMSHAFT ASSEMBLY, 115 SeaPro 8M0161588
19 PIN - DOWEL 8M0084726
20 PIN - DOWEL 8M0058695
21 CHAIN BLADE 8M0090800
22 CHAIN GUIDE 8M0090799
23 SPROCKET 880550
24 SCREW - SHOULDER, (M8 X 1.25) 8M0086569
25 CHAIN - CAM DRIVE 8M0128085
26 SCREW, (M12 x 40 MM) 8M0021532
27 TENSIONER ASSY, Timing Chain 8M0057657
28 O-RING, Brown 898836
29 END CAP - CAM TENSIONER 8M0064752
30 SCREW, (M6 x 25 MM) Stainless Steel 8M0103807
31 NUT, HEX 8M0072563
- CYLINDER HEAD ASSEMBLY 8M0098627
- CYLINDER HEAD ASSEMBLY, 75,90 SeaPro 8M0098627
- CYLINDER HEAD ASSEMBLY 8M0121260
- CYLINDER HEAD ASSEMBLY, 115 SeaPro 8M0121260
1 CYLINDER HEAD ASSEMBLY, BARE 8M0091291
2 SEAT - EXHAUST VALVE 8M0056611
3 SEAT - INTAKE VALVE 8M0056610
4 GUIDE - VALVE 8M0054533
5 PLUG, (30 MM) 8M0087454
6 PLUG, (24 MM) 8M0087453
7 PLUG, (10 MM) 8M0087446
8 NOT SOLD SEPARATE NSS
9 BOLT, (M6 x 36 MM) 892454035
10 ROLLER FINGER FOLLOWER 8M6106000
11 VALVE - EXHAUST 8M0098633
11 VALVE, Exhaust, SeaPro 8M0098633
12 VALVE - INTAKE 8M0098632
12 VALVE, Intake, SeaPro 8M0098632
13 STUD, BALL END , (M9 X 1) 8M0073719
14 RETAINER - VALVE 8M0054536
15 KEY - VALVE 8M0054537
16 SEAL - VALVE STEM ASSEMBLY 8M6105000
17 SPRING - VALVE 8M6102000
18 CAMSHAFT ASSEMBLY 8M0098630
18 CAMSHAFT ASSEMBLY, 75,90 SeaPro 8M0098630
18 CAMSHAFT ASSEMBLY 8M0161588
18 CAMSHAFT ASSEMBLY, 115 SeaPro 8M0161588
19 PIN - DOWEL 8M0084726
20 PIN - DOWEL 8M0058695
21 CHAIN BLADE 8M0090800
22 CHAIN GUIDE 8M0090799
23 SPROCKET 880550
24 SCREW - SHOULDER, (M8 X 1.25) 8M0086569
25 CHAIN - CAM DRIVE 8M0128085
26 SCREW, (M12 x 40 MM) 8M0021532
27 TENSIONER ASSY, Timing Chain 8M0057657
28 O-RING, Brown 898836
29 END CAP - CAM TENSIONER 8M0064752
30 SCREW, (M6 x 25 MM) Stainless Steel 8M0103807
31 NUT, HEX 8M0072563



Quick Overview

SCREW 10

SKU : 8M0086569

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061883765
