VOLVO PENTA 23577077 Instrument Panel Main | 12V

Write a Review
$1,420.00
SKU:
23577077
Schematic Object Key:
1

VOLVO PENTA 23577077 Instrument Panel Main | 12V

$1,420.00

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

VOLVO PENTA 23577077 Instrument Panel Main | 12V

Overview

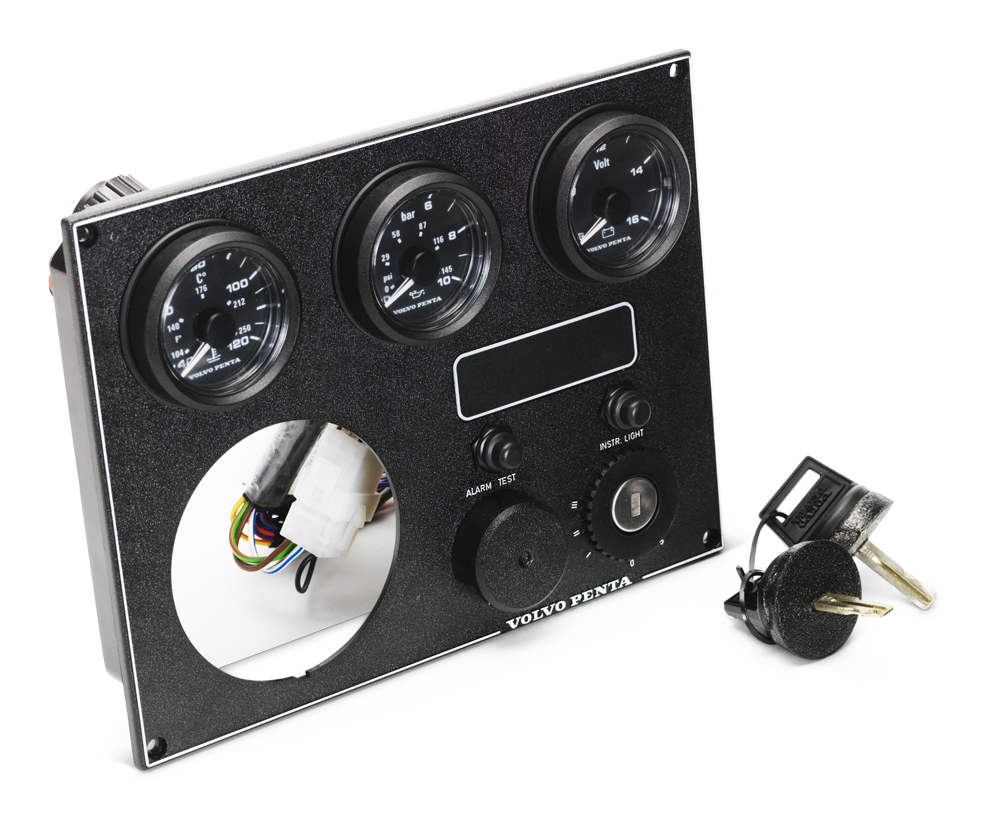

Main station kit available in two versions, 12V or 24V. Add a 4000 rpm or 6000 rpm tachometer for a complete installation. Includes: – Instrument panel with alarm display – Coolant temperature gauge, engine, 40°C-120°C – Oil pressure gauge, engine, 0-10 bar – Voltmeter, 8-16V, ( in 12V kit) – Voltmeter, 18-32V, (in 24V kit) – Starter switch, key lock Dimensions: 250 x 190 mm
Weight incl. packaging
2.68 lbs

Name: Instrument panel kit - Main station

Schematic Object Key : 1

Product Description : INSTRUMENT PANEL MAIN | 12V Part No. 23577077 2 INSTRUMENT PANEL Part No. 863997 3 Symbol Strip Part No. 858645 4 Electronic Unit Part No. 22354203 5 Cross Recessed Screw Part No. 941615 6 Spring Washer Part No. 60112782 7 Starter Switch Part No. 888001 2 Key P/N 859953 Is Included In Starter Switch 8 Plastic Nut Part No. 859955 9 Key Part No. 859953 10 Toggle Switch Part No. 828584 10 Toggle Switch Part No. 828585 11 Nut Part No. 828586 12 Buzzer Part No. 828587 13 Protecting Casing Part No. 858795 14 Wiring Harness Part No. 23715889 15 Six Point Socket Screw Part No. 60112130 16 Thermometer | Kit Part No. 23715849 COOLANT 40°C-120°C, 12V-24V 17 Oil Pressure Gauge | Kit Part No. 23715880 ENGINE 0-10 BAR, 12V-24V 18 Voltmeter | Kit Part No. 23715881 12V, 8V-16V 19 Front Ring Part No. 23621625 20 Attaching Ring Part No. 23621690 21 Mounting Ring | Kit Part No. 23621652 22 GASKET Part No. 23957183 23 Adapter Ring Part No. 23646443 24 Adapter Ring Part No. 23646438 25 Six Point Socket Screw Part No. 60112130

Product Category : D5A-B TA / Instruments

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

KeyNamePart No.
1INSTRUMENT PANEL MAIN | 12VPart No. 23577077
2INSTRUMENT PANELPart No. 863997
3Symbol StripPart No. 858645
4Electronic UnitPart No. 22354203
5Cross Recessed ScrewPart No. 941615
6Spring WasherPart No. 60112782
7Starter SwitchPart No. 888001
8Plastic NutPart No. 859955
9KeyPart No. 859953
10Toggle SwitchPart No. 828584
10Toggle SwitchPart No. 828585
11NutPart No. 828586
12BuzzerPart No. 828587
13Protecting CasingPart No. 858795
14Wiring HarnessPart No. 23715889
15Six Point Socket ScrewPart No. 60112130
16Thermometer | KitPart No. 23715849
17Oil Pressure Gauge | KitPart No. 23715880
18Voltmeter | KitPart No. 23715881
19Front RingPart No. 23621625
20Attaching RingPart No. 23621690
21Mounting Ring | KitPart No. 23621652
22GASKETPart No. 23957183
23Adapter RingPart No. 23646443
24Adapter RingPart No. 23646438
25Six Point Socket ScrewPart No. 60112130
26Tachometer | KitPart No. 23715874
26Tachometer | KitPart No. 23715875

Quick Overview

INSTRUMENT PANEL MAIN

SKU : 23577077

PRE: VOL

BRAND: VOLVO

COMPANY: Volvo
