YANMAR 126652-02320 Main Bearing

Write a Review
$153.34
SKU:
126652-02320
Schematic Object Key:
48

YANMAR 126652-02320 Main Bearing

$153.34

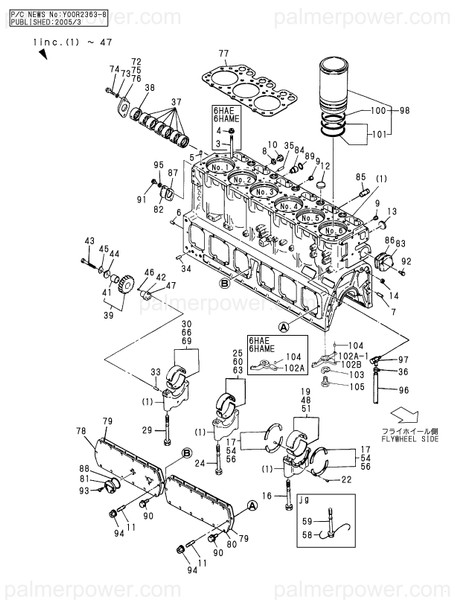

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 126652-02320 Main Bearing

Schematic Object Key : 48

Product Description : MAIN METAL 0.25 126652-02320

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 BLOCK ASSY, CYLINDER 726650-01563
1-1 BLOCK ASSY, CYLINDER 726650-01564
1-2 BLOCK ASSY, CYLINDER 726650-01565
3 BOLT, HEAD 126634-01200
4 NUT, M16 126634-01220
5 PIN, PARALLEL M10X25 22312-100250
6 PIN, PARALLEL M10X32 22312-100320
7 PIN, PARALLEL M12X36 22312-120360
8 GASKET, 12X1.0 23414-120016
9 PLUG, R01 23871-010000
10 PLUG 23881-120002
10-1 PLUG, 12 23887-120002
11 STUD, M8X 12 26216-080122
11-1 STUD, M8X 16 26216-080162
12 PLUG 45 27231-450000
13 PLUG 50 27231-500000
14 PLUG, 22 27241-220000
14-1 PLUG, 22 27241-220000
16 BOLT 126650-02070
17 METAL,THRUST 126650-02190
19 MAIN METAL 126652-02240
22 PIN, PARALLEL M6X 8 22312-060080
24 BOLT 126650-02070
25 MAIN METAL 126634-02180
29 BOLT 126650-02070
30 MAIN METAL 126652-02180
33 PIN, PARALLEL M8X25 22312-080250
34 PIN, PARALLEL M12X20 22312-120200
35 PIN, PARALLEL M12X20 22312-120200
36 CLAMP, 17 23010-017000
37 BUSH, CAMSHAFT 126650-02400
38 BUSH, CAMSHAFT 126650-02410
39 GEAR ASSY, IDLE 126650-14900
39-1 GEAR, IDLE Z=32 126650-14901
41 BUSH 135410-32620
42 BRACKET 126650-14750
43 BOLT M12X85 126650-14850
44 PLATE 126650-14760
45 WASHER 126650-14770
46 PIN, PARALLEL M4X 8 22312-040080
47 PIN, PARALLEL M4X12 22312-040120
47-1 PIN, SPRING 4.0X16 22351-040016
48 MAIN METAL 0.25 126652-02320
51 MAIN METAL 0.5 126652-02330
54 METAL,THRUST 0.25 126650-02340
56 METAL,THRUST 0.5 126650-02350
58 WIRE, 2.0 22451-200000
59 BOLT 126640-02070
60 MAIN METAL 0.25 126634-02300
63 MAIN METAL 0.5 126634-02310
66 MAIN METAL 0.25 126652-02300
69 MAIN METAL 0.5 126652-02310
72 METAL, CAMSHAFT 126650-02420
73 WASHER, SPRING 10 22217-100000
74 BOLT, M10X 22 PLATED 26106-100222
75 METAL, THRUST .25 OS 126650-02860
76 METAL, THRUST .50 OS 126650-02870
77 GASKET, HEAD 126650-01330
77-1 GASKET, HEAD 126650-01331
77-2 GASKET, HEAD 126650-01332
77-3 GASKET, HEAD 126650-01333
77-4 GASKET, HEAD 126650-01334
78 COVER, BLOCK 126650-01400
79 GASKET, COVER 126650-01410
79-1 GASKET, COVER 126650-01411
80 COVER, BLOCK 126650-01420
81 COVER 123472-01430
82 COVER 126630-01580
83 COVER 126630-01791
84 CONNECTOR 123672-01850
85 PIPE 126650-01860
86 GASKET 126650-09021
86-1 GASKET 126650-09022
86-2 GASKET 126650-09023
87 GASKET, 21X0.5 23424-210000
88 O-RING, 1AP41.0 24311-000410
89 O-RING, 4DP29.0 24316-000290
90 BOLT, M8X 16 PLATED 26106-080162
91 BOLT, M8X 18 PLATED 26106-080182
92 BOLT, M10X 28 PLATED 26106-100282
93 SCREW M 6X 14 26551-060142
93-1 SCREW M 6X 14 26557-060142
94 NUT, M8 26366-080002
95 WASHER, SPRING 8 22217-080000
96 PIPE, 12X 500 23061-120500
97 COCK 43600-500310
97-1 COCK ASSY, 3/8 43600-500311
98 LINER ASSY, CYLINDER 726650-01900
98-1 LINER ASSY, CYLINDER 726650-01901
100 GASKET, LINER 126650-01300
100-1 O-RING, LINER 126650-01301
101 GASKET, LINER 126650-01310
101-1 O-RING, LINER 126650-01311
102B NOZZLE 126634-39330
103 WASHER 144626-39370
104 PIN, PARALLEL M6X12 22312-060120
104-1 PIN, PARALLEL M6X10 22312-060100
105 JOINT BOLT 10 23851-100000
