YANMAR 135633-82500 Bearing #30318D

Write a Review
$1,313.38
SKU:
135633-82500
Schematic Object Key:
51

YANMAR 135633-82500 Bearing #30318D

$1,313.38

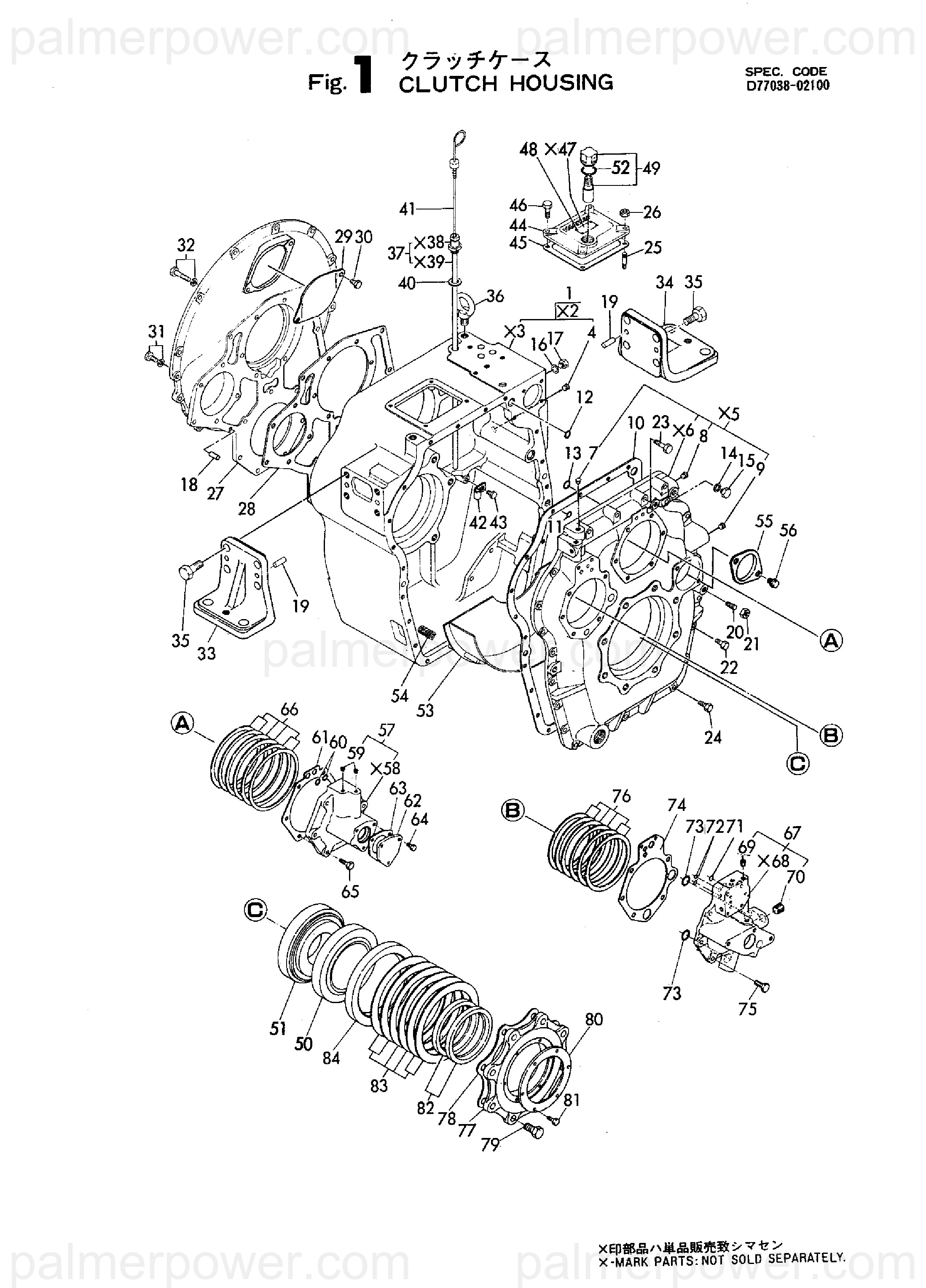

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 135633-82500 Bearing #30318D

Schematic Object Key : 51

Product Description : BEARING #30318D

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 HOUSING ASSY, CLUTCH 777017-02552
4 PLUG, R01 23871-010000
7 PLUG, R01 23871-010000
8 PLUG, R03 23873-030000
9 PLUG, R04 23871-040000
10 GASKET 177017-02041
11 O-RING 123385-84880
12 O-RING, 1AP16.0 24311-000160
13 O-RING, 1AP20.0 24311-000200
14 GASKET, 12X1.0 23414-120000
15 PLUG, 12 23887-120002
16 GASKET, 16X1.0 23414-160000
17 PLUG 23881-160002
18 PIN, PARALLEL M10X25 22312-100252
19 PIN, PARALLEL M12X32 22312-120320
20 PIN, TAPER 13X 30 22333-130300
21 NUT, M12 26716-120002
22 BOLT, M10X 25 PLATED 26106-100252
23 BOLT, M10X 55 PLATED 26106-100552
24 BOLT, M10X 25 PLATED 26203-100252
25 STUD M 8X 18 PLATED 26212-080182
26 NUT, M8 26366-080002
27 FLANGE, MOUNTING 177017-02050
28 GASKET, FLANGE 177017-02060
29 BREATHER 145610-82070
30 BOLT, M10X 14 PLATED 26106-100142
31 BOLT, M10X 30 26013-100302
32 BOLT, M10X 45 26013-100452
33 FOOT, MOUNTING 177038-02830
34 FOOT, MOUNTING 177038-02840
35 BOLT, M16X 40 PLATED 26156-160402
36 BOLT, EYE M16 26610-160002
37 BRACKET ASSY 177017-02600
40 GASKET, 16X1.0 23414-160000
41 DIPSTICK,LUB.OIL 177017-02650
42 CLAMP 177017-02630
43 BOLT, M8X 12 PLATED 26116-080122
44 COVER 177001-02080
45 GASKET, COVER 125310-82080
46 BOLT, M8X 20 PLATED 26106-080202
48 RIVET, 2.3X 4 22624-230040
49 PLUG ASSY, M30X1.5 123672-82850
50 BEARING, 30221H 24142-302210
51 BEARING #30318D 135633-82500
52 WASHER, SEAL 30 43400-500610
53 COVER, GEAR 177017-02400
54 SPRING 47734-045320
55 COVER 177010-02430
56 BOLT, M10X 14 PLATED 26106-100142
57 COVER ASSY 177017-02090
59 PLUG, R01 23871-010000
60 O-RING 123385-84880
61 GASKET 177017-02110
62 COVER 145410-82800
63 PACKING, COVER 524224-42020
64 BOLT, M8X 16 PLATED 26106-080162
65 BOLT, M10X 30 PLATED 26106-100302
66 SHIM 126410-82400
67 COVER 177019-02140
69 PLUG, R01 23871-010000
70 PLUG, R04 23871-040000
71 O-RING 123385-84880
72 O-RING, 1AS9.0 24341-000090
73 O-RING, 1AS18.0 24341-000180
74 GASKET, COVER 177019-02160
75 BOLT, M10X 25 PLATED 26106-100252
76 SHIM 145610-82550
77 COVER 177017-02301
78 GASKET 177017-02310
79 BOLT, M16X 35 PLATED 26116-160352
80 RETAINER, OIL SEAL 137690-82270
81 BOLT, M6X 12 PLATED 26106-060122
82 OIL SEAL (MG13016014 137690-82280
83 SHIM SET 177017-02911
84 SPACER 177017-02901
85 BEARING, 30221H 24142-302210
86 BEARING #30318D 135633-82500
