YANMAR 177020-04050 Spring

Write a Review
$44.74
SKU:
177020-04050
Schematic Object Key:
42A

YANMAR 177020-04050 Spring

$44.74

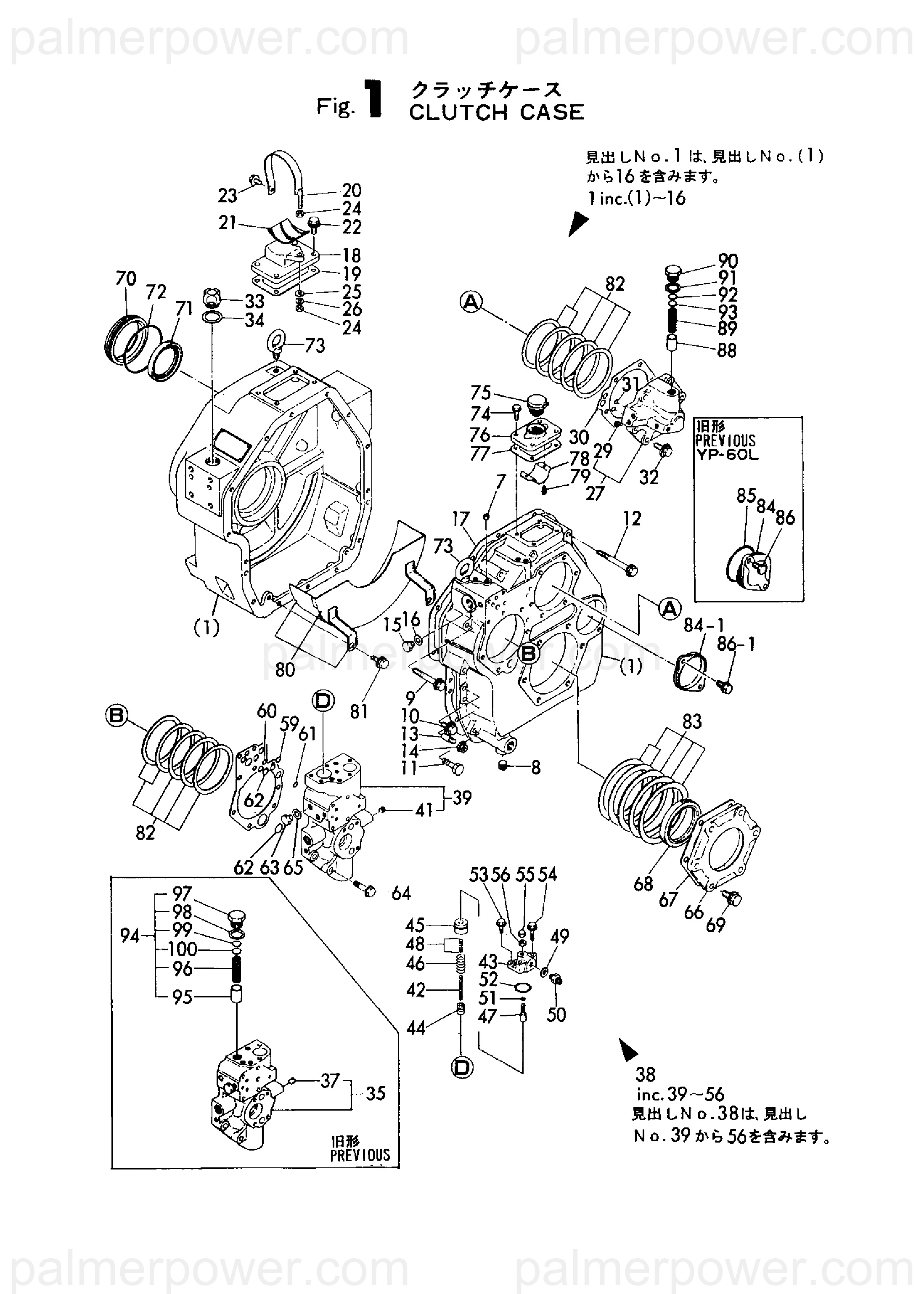

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 177020-04050 Spring

Schematic Object Key : 42A

Product Description : SPRING

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1B HOUSING ASSY, CLUTCH 777011-02570
7 PLUG, R01 23871-010000
8 PLUG, R03 23873-030000
9 BOLT, M10X 75 PLATED 26106-100752
10 BOLT, M10X 25 PLATED 26106-100252
11 BOLT, M10X 35 PLATED 26203-100352
12 BOLT, M10X 95 PLATED 26106-100952
13 PIN, TAPER 10X 22 22333-100220
14 NUT, M10 26366-100002
15 PLUG 23881-120002
16 GASKET, 12X1.0 23414-120000
17 GASKET 177011-12031
17-1 GASKET 177011-12032
18 COVER 177010-02252
19 GASKET 177010-02260
20 RETAINER 177010-04912
21 RUBBER 177020-04611
22 BOLT, M10X 28 26013-100282
23 BOLT, M8X 16 PLATED 26106-080162
24 NUT, M8 26716-080002
25 WASHER 8 22131-080000
26 WASHER 8 22212-080000
27 COVER ASSY 177025-02090
29 PLUG, R01 23871-010000
30 GASKET 177010-02120
30-1 GASKET 177010-02121
31 O-RING, 1AS9.0 24341-000090
32 BOLT, M10X 30 PLATED 26106-100302
33 CAP 125310-01660
34 WASHER, SEAL 30 43400-500610
38A COVER ASSY 777011-02610
39 COVER ASSY 177011-12852
41 PLUG, R01 23871-010000
42A SPRING 177020-04050
43 COVER 177032-04111
44 VALVE, CONTROL 177032-04121
45 VALVE 177032-04131
46 SPRING 177032-04150
47 SCREW 177032-04160
48 SHIM SET 177032-04170
49 GASKET, 12X1.0 23414-120000
50 UNION, 6 23831-060000
51 O-RING, 1AS8.0 24341-000080
52 O-RING, 1AS34.0 24341-000340
53 BOLT, M8X 20 PLATED 26106-080202
54 BOLT, M8X 35 PLATED 26106-080352
55 NUT, CAP M8 26667-080002
56 NUT, LOCK M8 26756-080002
57 O-RING, 1AP21.0 24311-000210
58 GASKET 177011-12161
58-1 GASKET 177011-12162
59 O-RING 123385-84880
60 O-RING, 1AS9.0 24341-000090
61-2 O-RING, 1AS11.2 24341-000112
62 O-RING, 1AP14.0 24311-000140
63 PLUG 23881-120002
64 BOLT, M10X 40 PLATED 26106-100402
65 GASKET, 12X1.0 23414-120000
66 COVER 177011-12301
67 GASKET 177011-12310
67-1 GASKET 177011-12311
68 SEAL, SB8010513 126410-82300
69 BOLT, M12X 30 PLATED 26116-120302
70 HOUSING 177010-02350
71 SEAL, OIL 177010-02310
71-1 SEAL, OIL TC658812 24421-658812
72 O-RING, 1AG105.0 24321-001050
73 EYE BOLT M12 26610-120002
74 BOLT, M8X 22 26013-080222
75 BREATHER ASSY 177025-02960
76 COVER 177025-02290
77 GASKET, COVER 177025-02300
77-1 GASKET, COVER 177025-02301
78 PLATE 177025-02310
79 SCREW, M4X 8 26022-040082
80 COVER ASSY 177011-12451
81 BOLT, M10X 16 26013-100162
82 SHIM SET 177010-02550
83 SHIM 126410-82400
84-1 COVER 177010-02430
86-1 BOLT, M10X 14 PLATED 26106-100142
87 VALVE ASSY, CONTROL 123672-84460
88 VALVE, CONTROL 125310-34031
89 SPRING, VALVE 125310-34040
90 RETAINER, VALVE 123672-84530
91 GASKET, 18X1.0 23414-180000
92 SHIM, T=1.0 45150-030760
93 SHIM, T=0.5 45150-030770
